Data List

DATA LIST / ACTIVE TEST

HINT: By accessing the DATA LIST displayed on the intelligent tester, you can perform such functions as reading the values of switches and sensors without removing any parts. Reading the DATA LIST is the first step of troubleshooting and is one method to save time.

1. DATA LIST FOR CENTER AIRBAG SENSOR ASSEMBLY
a. Connect the intelligent tester (with CAN VIM) to the DLC3.
b. Turn the ignition switch ON.

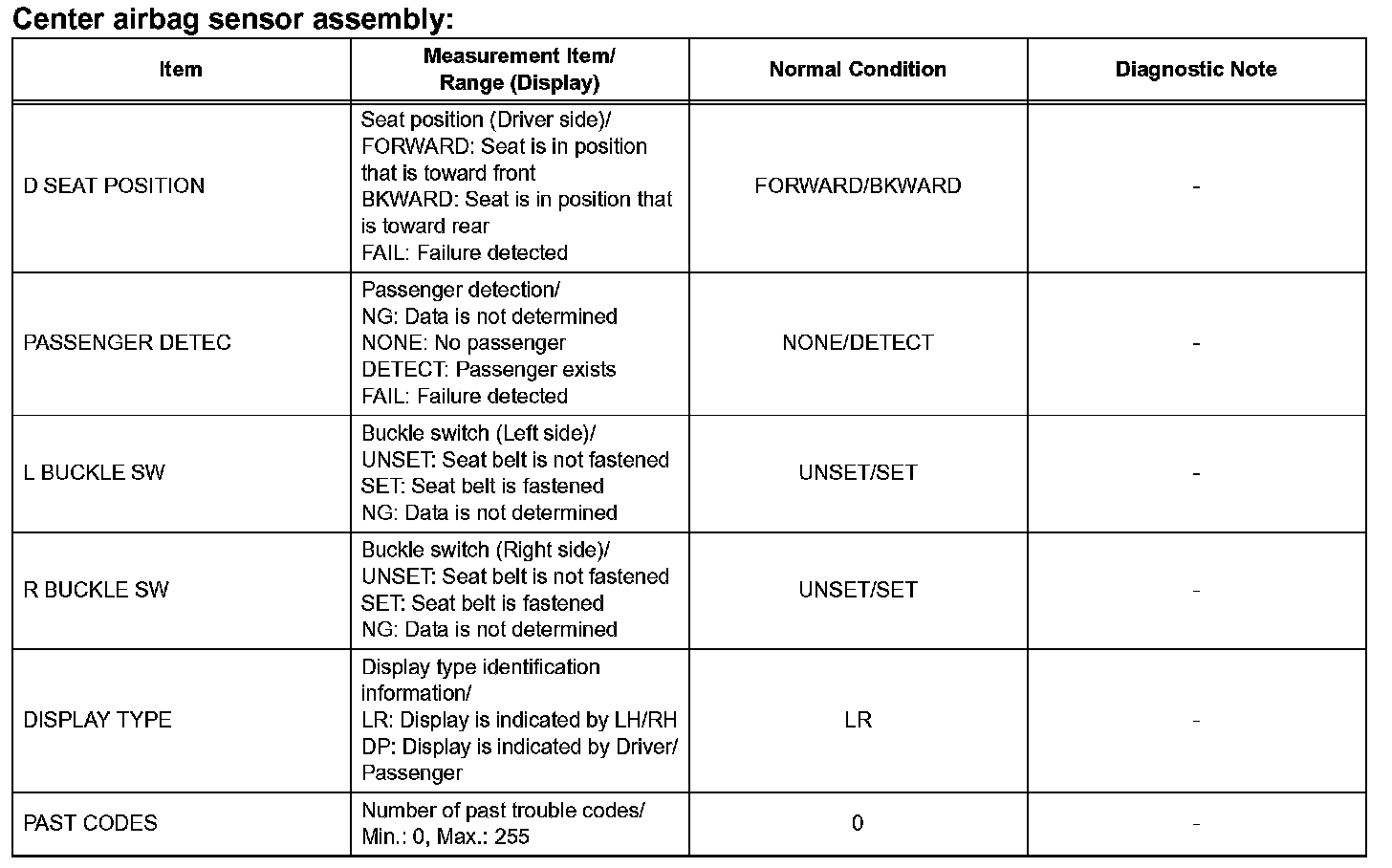

Data List:

c. Following the display on the tester screen, read the "DATA LIST".
