Removal and Installation
REMOVALCAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it.
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE ROOF HEADLINING ASSEMBLY
a. Remove the roof headlining.
3. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY

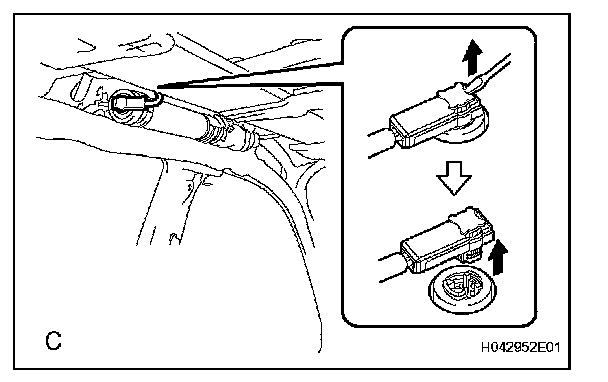

a. Disconnect the connector.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

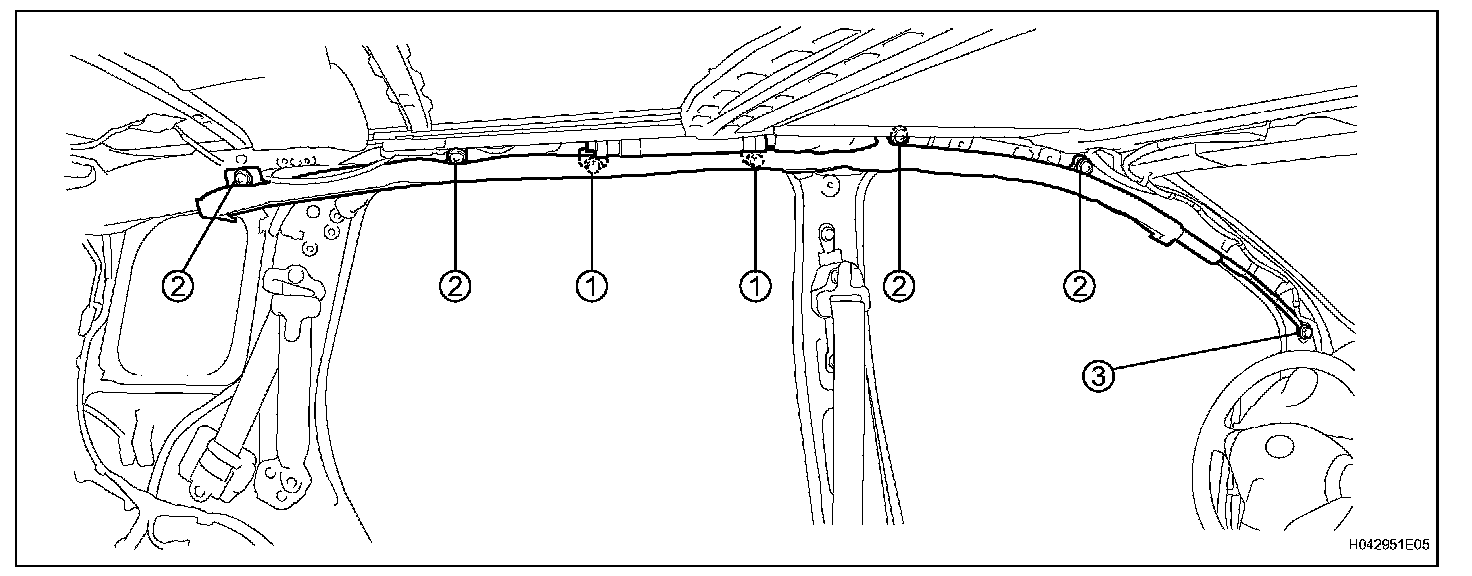

b. Remove the 3 bolts, 4 screws and curtain shield airbag in the order shown in the illustration.
INSTALLATION
CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it.
1. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY

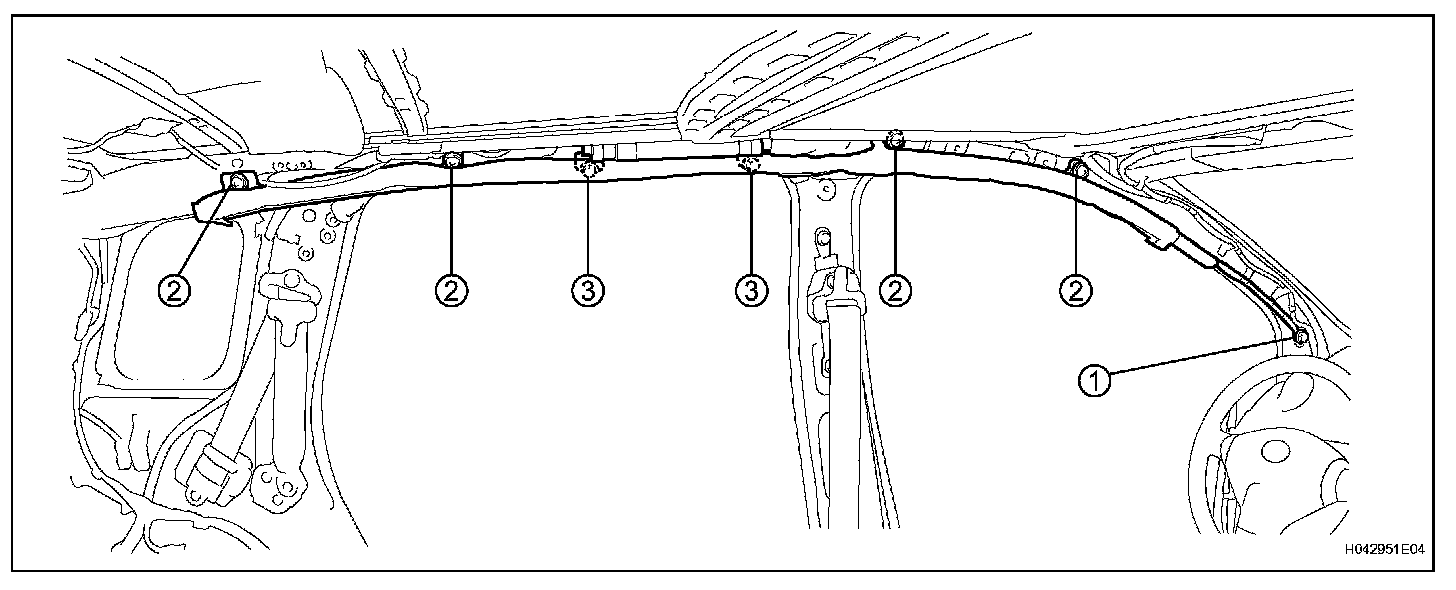

a. Install the curtain shield airbag with 3 new bolts and 4 new screws in the order shown in the illustration.
NOTE: Do not twist the curtain shield airbag assembly when installing it.
Torque: 14 N.m (143 kgf.cm, 10 ft.lbf)

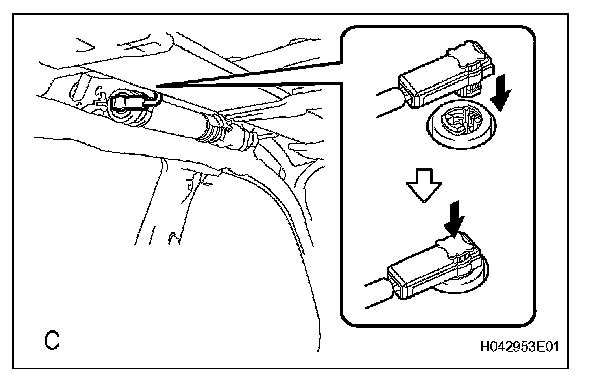

b. Connect the connector.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
2. INSTALL ROOF HEADLINING ASSEMBLY
a. Install the roof headlining.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
5. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
