PTC HEATER RELAY

ON-VEHICLE INSPECTION

1. REMOVE PTC HEATER RELAY (Marking: HTR SUB1)
a. Remove the heater relay from the engine room relay block.







2. INSPECT PTC HEATER RELAY

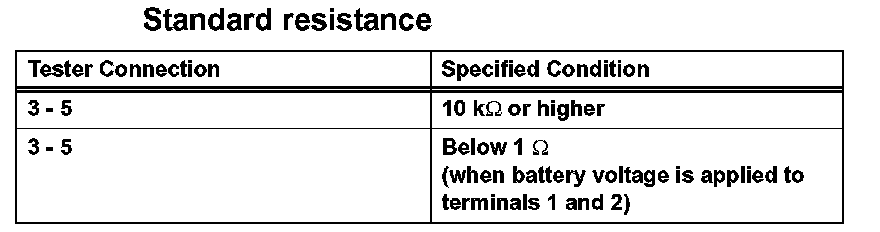

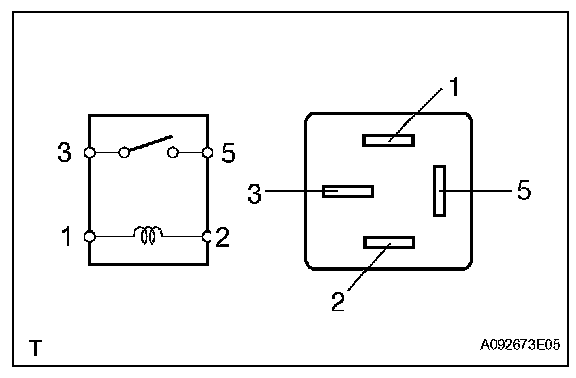

a. Measure the resistance of the relay.

If the value is not as specified, replace the PTC heater relay.

3. INSTALL PTC HEATER RELAY
