Blower Motor Relay: Testing and Inspection

HEATER BLOWER MOTOR RELAY

ON-VEHICLE INSPECTION

1. REMOVE HEATER BLOWER MOTOR RELAY (Marking: HEATER)
a. Remove the relay from the instrument panel junction block.







2. INSPECT HEATER BLOWER MOTOR RELAY

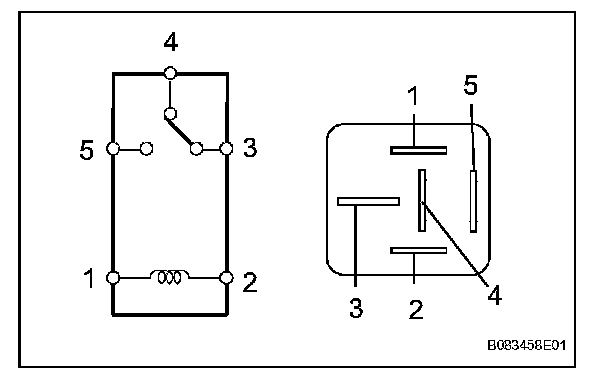

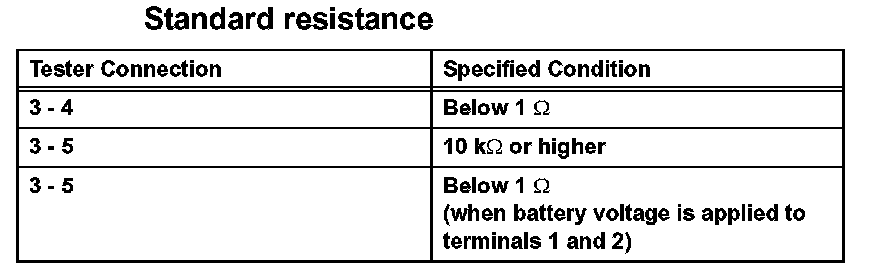

a. Measure the resistance of the relay.

If the result is not as specified, replace the relay.

3. INSTALL HEATER BLOWER MOTOR RELAY
