Fuel Filler Cap: Testing and Inspection

ON-VEHICLE INSPECTION

1. CHECK FUEL TANK CAP ASSEMBLY

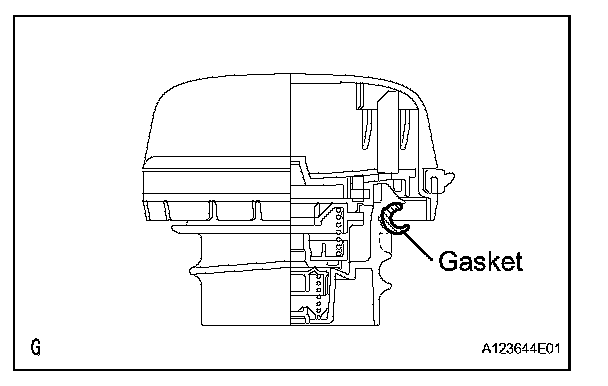

a. Visually check if the cap or gasket is deformed or damaged.
