Open In CAN Main Bus Line

Open in CAN Main Bus Line

DESCRIPTION

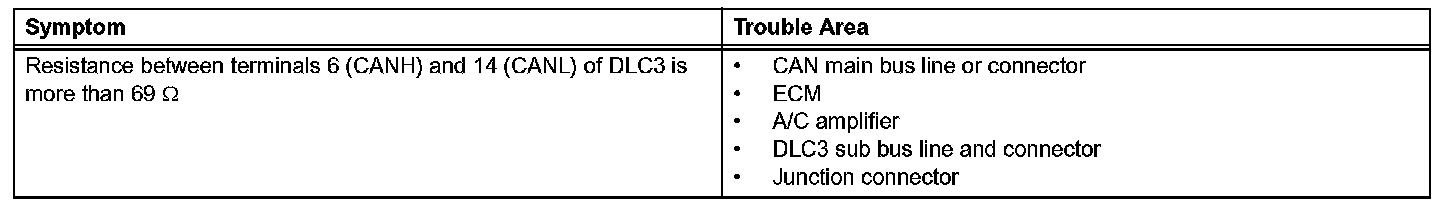

Symptom:

The CAN main bus line and DLC3 sub bus line may be disconnected when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is 69 or higher.

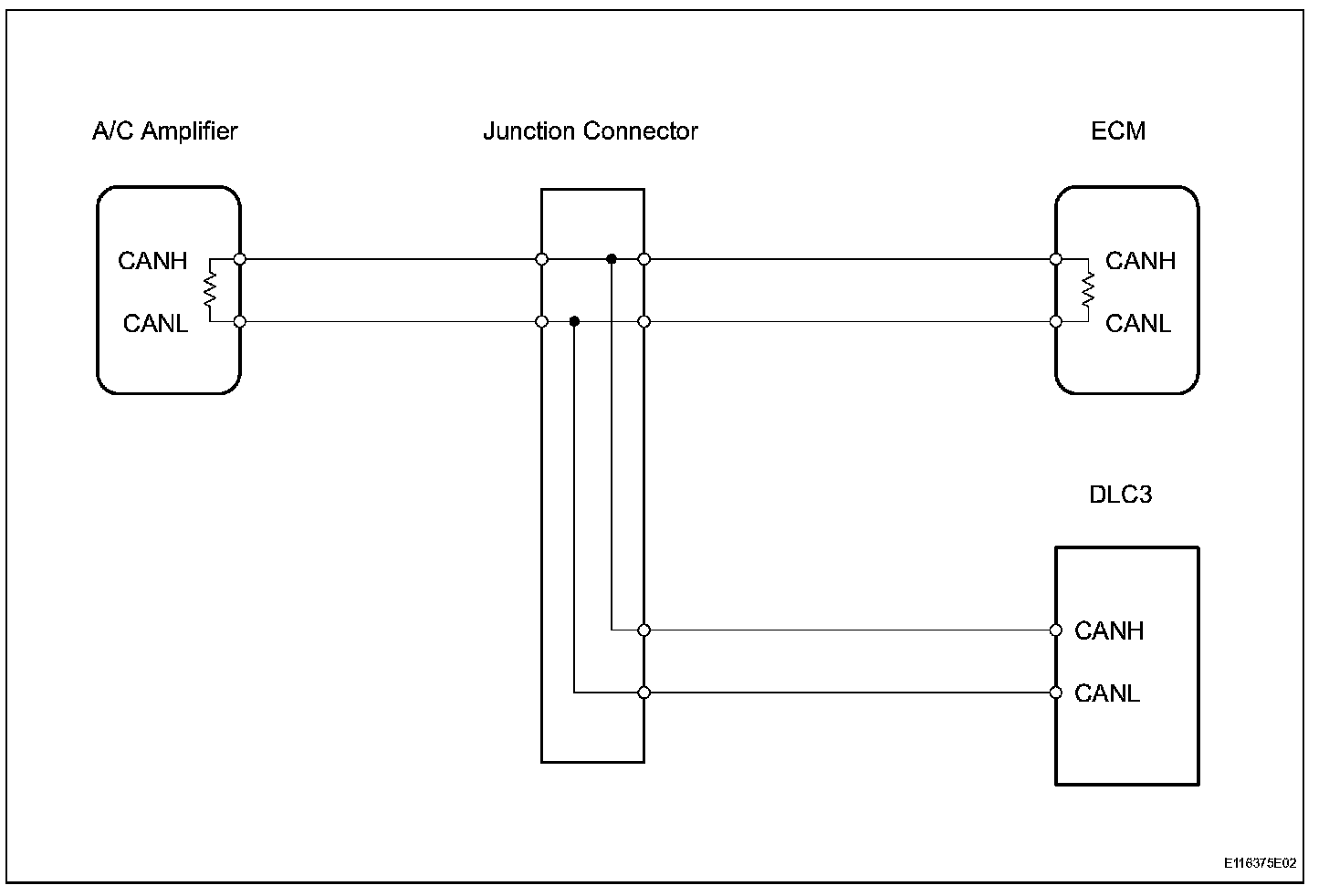

Wiring Diagram:

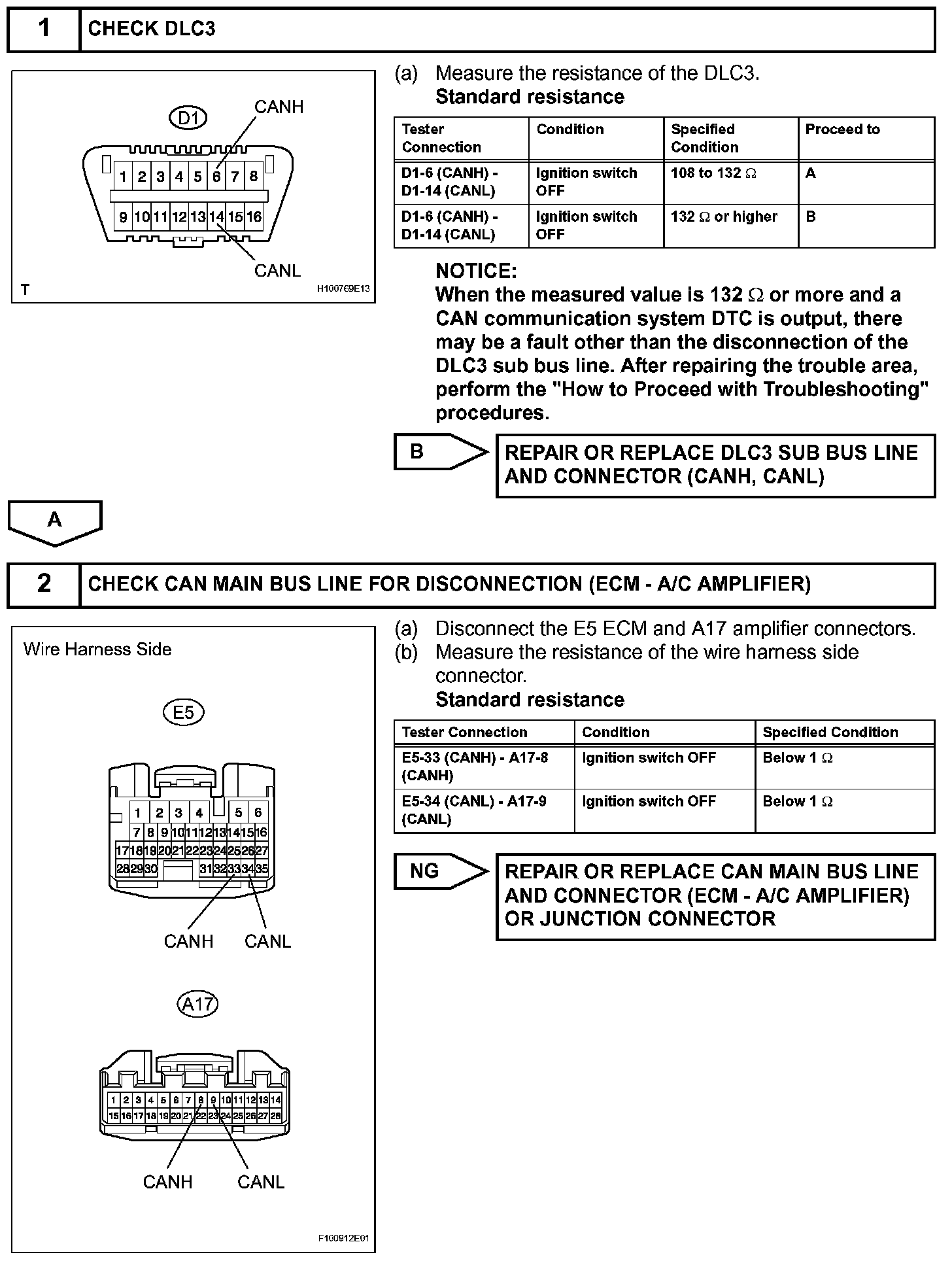

Step 1-2:

Step 2(continued)-3:

INSPECTION PROCEDURE
