Turn Signal Flasher: Testing and Inspection
TURN SIGNAL FLASHER ASSEMBLYON-VEHICLE INSPECTION
1. CHECK TURN SIGNAL FLASHER ASSEMBLY

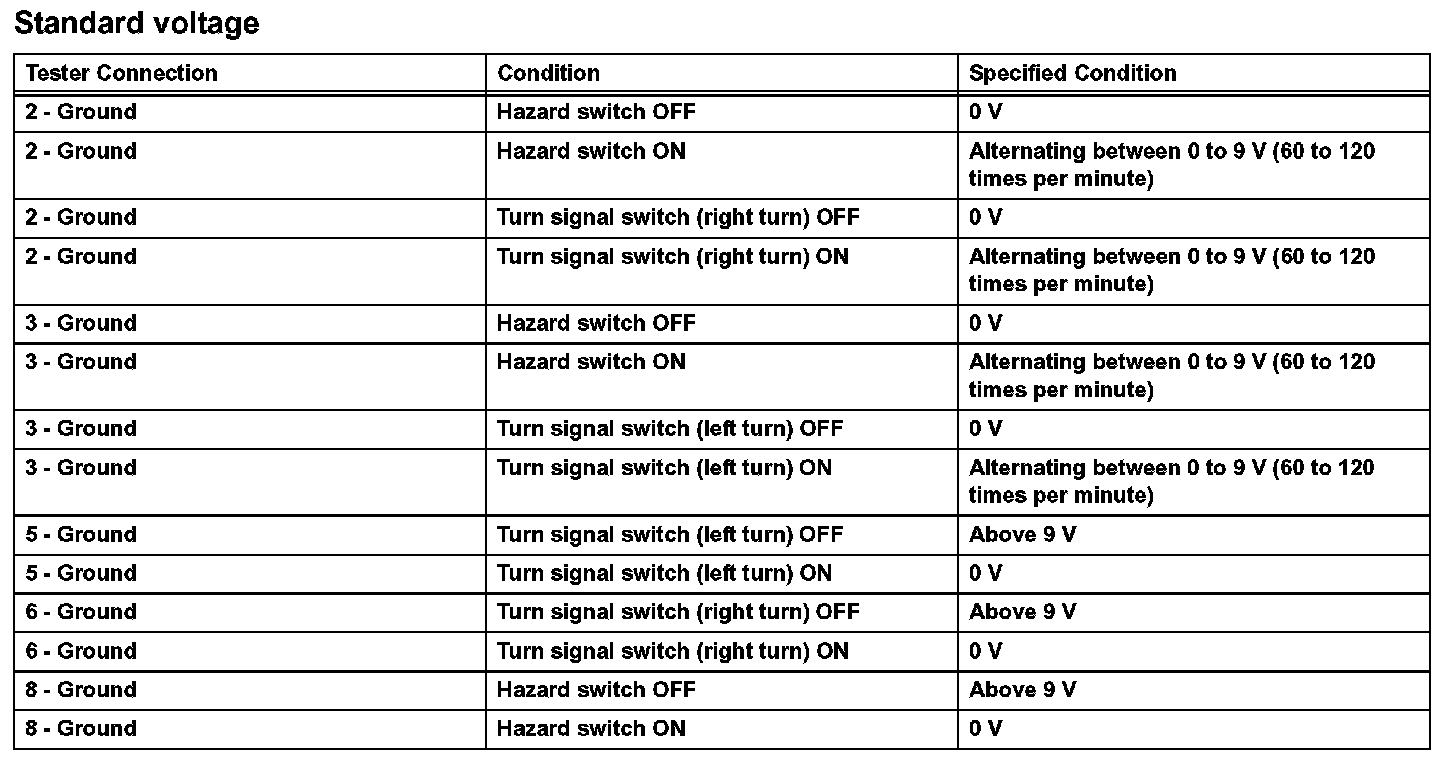

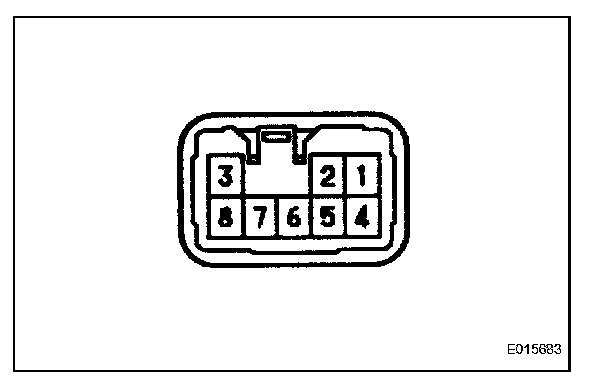

a. Connect the connector to the turn signal flasher and inspect the wire harness side connector from the backside as shown in the table.
