Removal and Installation
FRONT SIDE MARKER LIGHT ASSEMBLYREMOVAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE RADIATOR GRILLE
3. REMOVE FRONT SPOILER PAD LH
4. REMOVE FRONT SPOILER PAD RH
5. REMOVE FRONT BUMPER COVER
6. REMOVE FRONT SIDE MARKER LIGHT ASSEMBLY LH

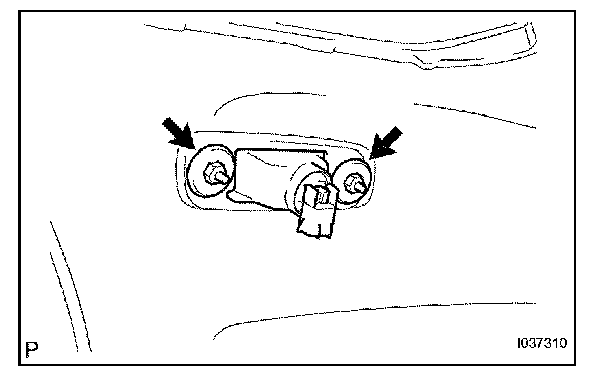

a. Remove the 2 nuts and front marker light.
INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
1. INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY LH
a. Connect the connector and install the side turn signal light.
b. Attach the side turn signal light with the 2 claws and install the light.
2. INSTALL DOOR MIRROR SIDE TURN SIGNAL LIGHT LENS LH
a. Connect the connector and install the side turn signal light lens.
b. Install the 2 screws.

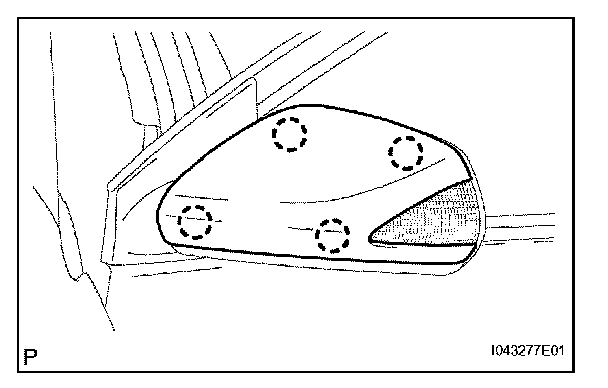

c. Attach the 4 claws and install the cover.
3. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
