Map Light: Testing and Inspection
MAP LIGHT ASSEMBLYINSPECTION

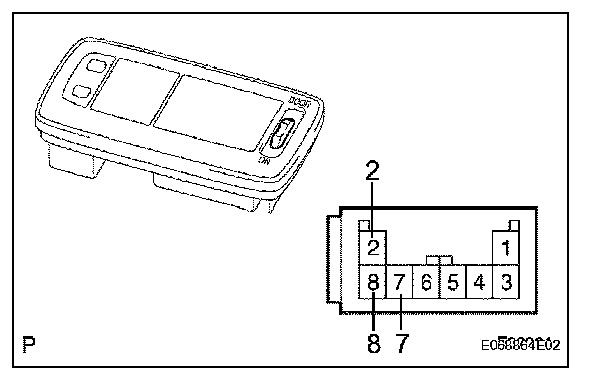

1. INSPECT MAP LIGHT ASSEMBLY (w/ Sliding Roof)

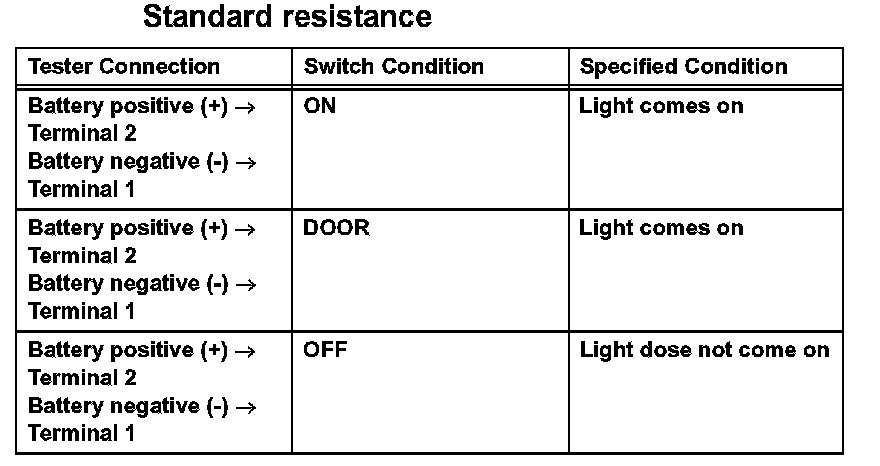

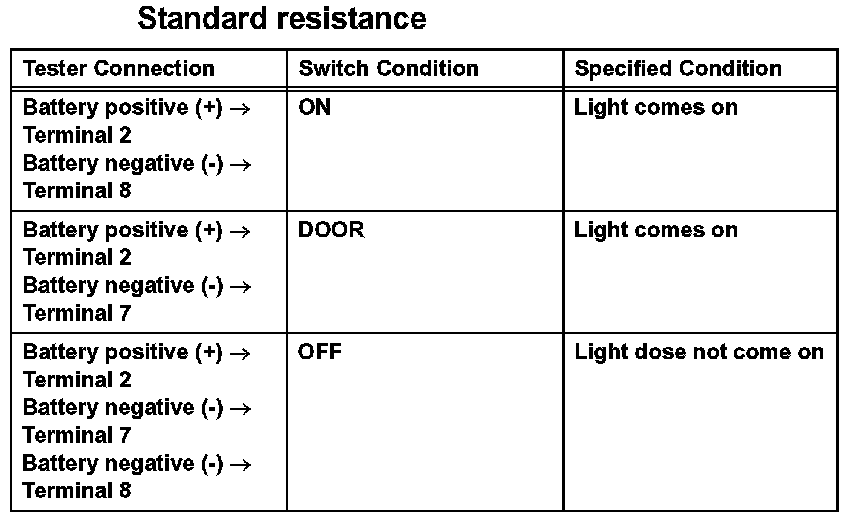

a. Measure the resistance of the light.
If the result is not as specified, replace the map light assembly.

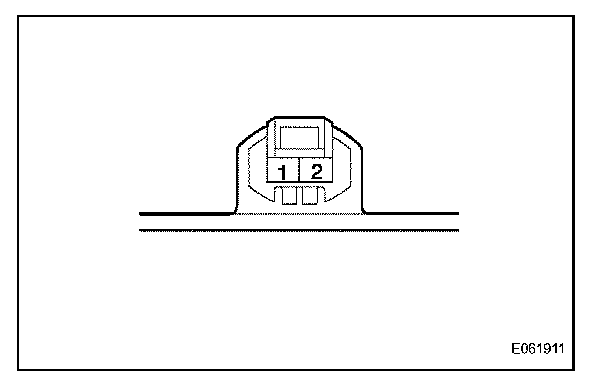

2. INSPECT MAP LIGHT ASSEMBLY (w/o Sliding Roof)
a. Measure the resistance of the light.
If the result is not as specified, replace the map light assembly.
