Removal and Installation

LICENSE PLATE LIGHT ASSEMBLY

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE BACK DOOR TRIM BOARD ASSEMBLY
3. REMOVE BACK DOOR OUTSIDE HANDLE
4. REMOVE BACK DOOR LOCK CYLINDER ASSEMBLY
5. REMOVE BACK DOOR GARNISH SUB-ASSEMBLY OUTSIDE

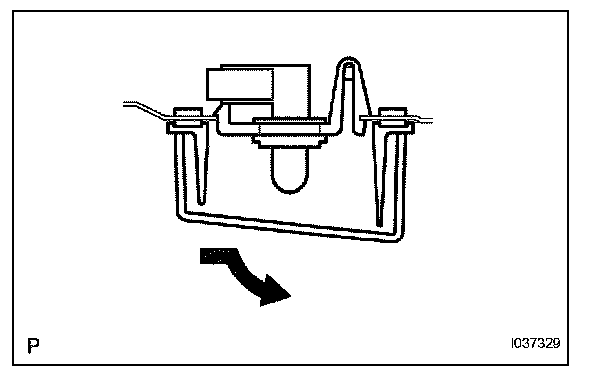

6. REMOVE LICENSE PLATE LIGHT ASSEMBLY
a. Disconnect the connector.
b. Detach the 2 claws and remove the license plate light.

INSTALLATION

1. INSTALL LICENSE PLATE LIGHT ASSEMBLY
a. Attach the 2 claws and install the license plate light.
b. Connect the connector.

2. INSTALL BACK DOOR GARNISH SUB-ASSEMBLY OUTSIDE
3. INSTALL BACK DOOR LOCK CYLINDER ASSEMBLY
4. INSTALL BACK DOOR OUTSIDE HANDLE
5. INSTALL BACK DOOR TRIM BOARD ASSEMBLY
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

7. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
