High Pitched Horn

REMOVAL

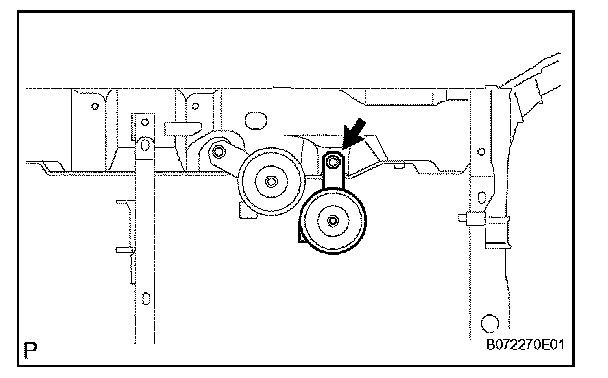

1. REMOVE HIGH PITCHED HORN
a. Disconnect the horn connector.
b. Remove the bolt and horn.

INSTALLATION

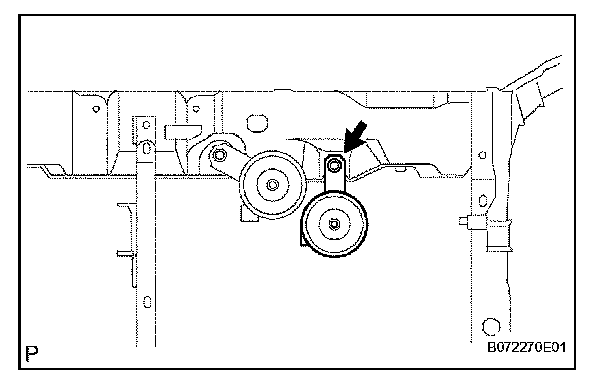

1. INSTALL HIGH PITCHED HORN
a. Attach the horn stay to the body panel and then install the horn with the bolt.

Torque: 19.5 N.m (199 kgf.cm, 14 ft.lbf)

b. Connect the horn connector.
