Disassembly and Reassembly
DISASSEMBLYHINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
1. REMOVE HEADLIGHT SOCKET COVER

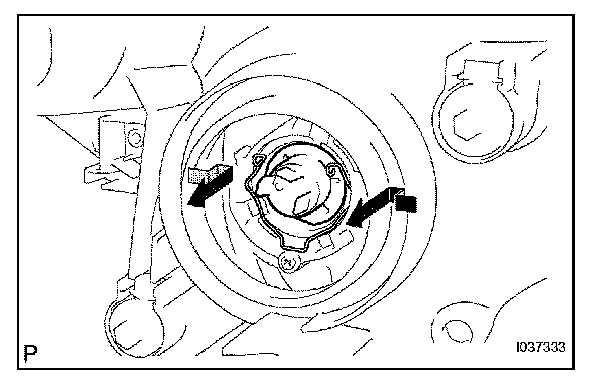

2. REMOVE NO. 1 HEADLIGHT BULB
a. Release the lock of the set spring and remove the bulb.

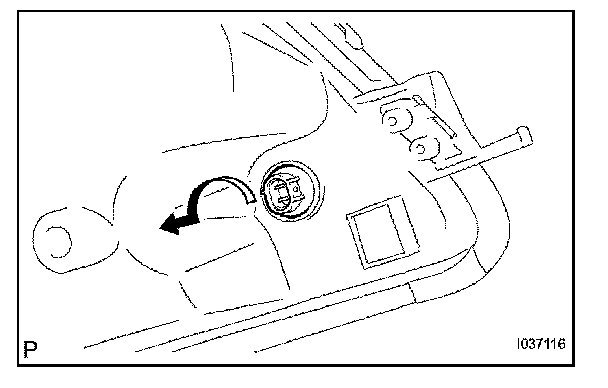

3. REMOVE FRONT TURN SIGNAL LIGHT BULB
a. Remove the front turn signal light socket as shown in the illustration.
b. Remove the light bulb from the socket.

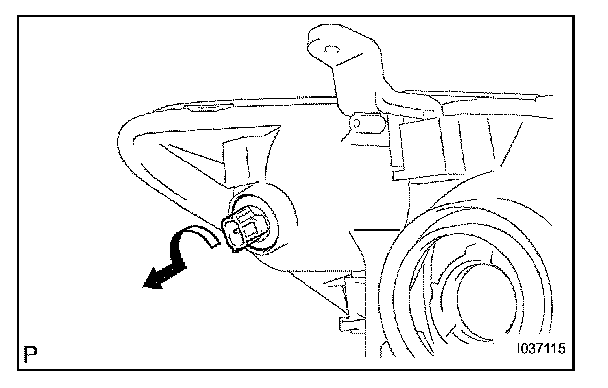

4. REMOVE CLEARANCE LIGHT BULB
a. Remove the clearance light socket as shown in the illustration.
b. Remove the bulb from the socket.
REASSEMBLY
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
1. INSTALL CLEARANCE LIGHT BULB
a. Install the bulb to the socket.
b. Install the clearance light socket.
2. INSTALL FRONT TURN SIGNAL LIGHT BULB
a. Install the bulb to the socket.
b. Install the front turn signal light socket.
3. INSTALL NO.1 LIGHT BULB
a. Release the lock of the set spring and install the headlight No. 1 bulb.
