Home >> Scion >> 2006 >> xA L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Warning Buzzer Does Not Sound

Warning Buzzer Does Not Sound

Warning Buzzer does not Sound

Wiring Diagram:

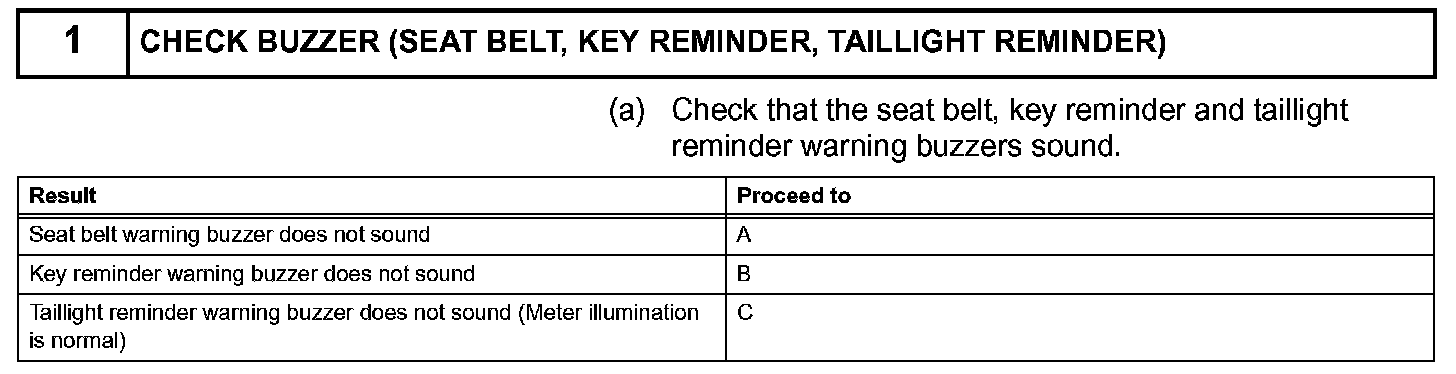

Step 1:

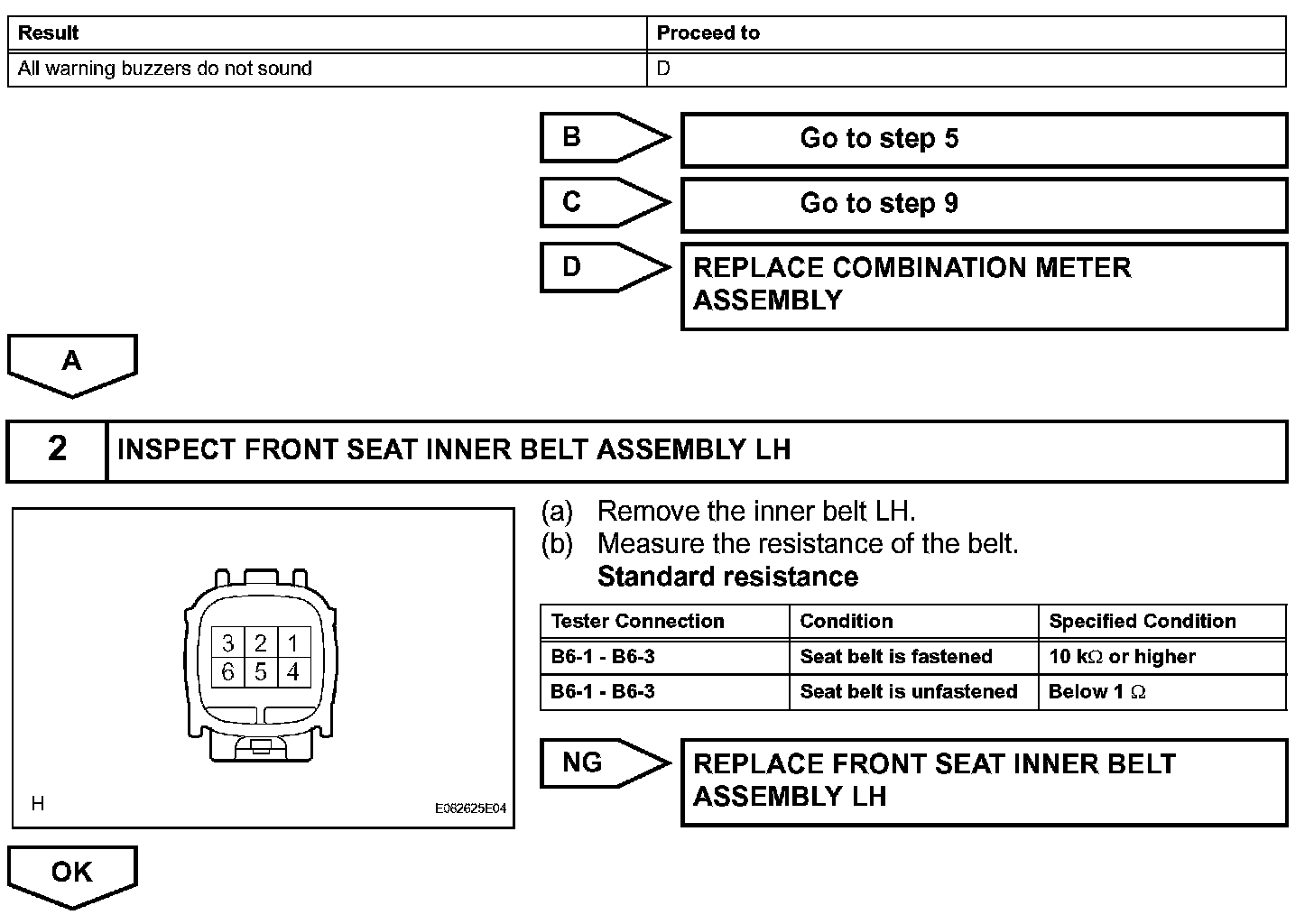

Step 1(continued)-2:

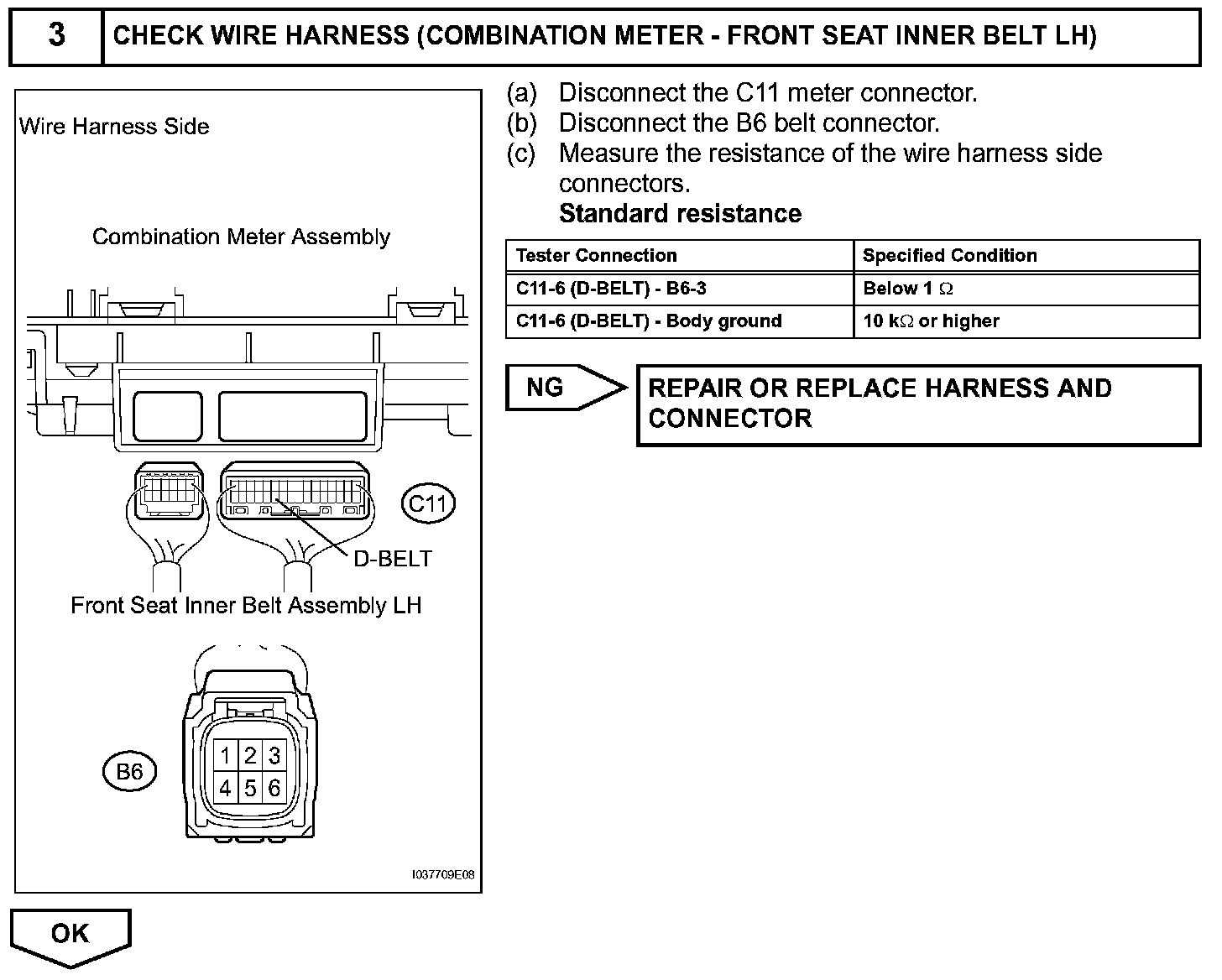

Step 3:

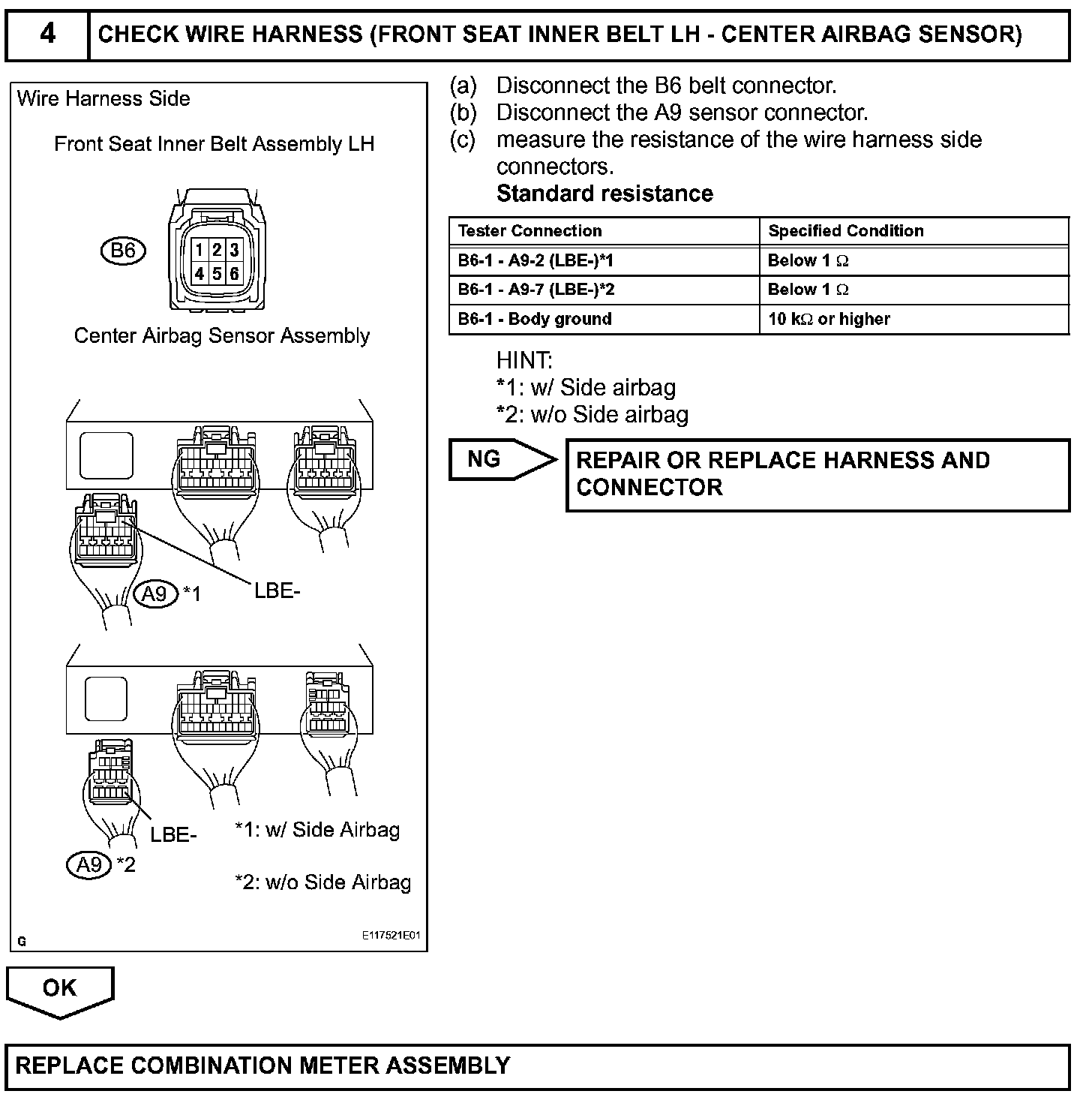

Step 4:

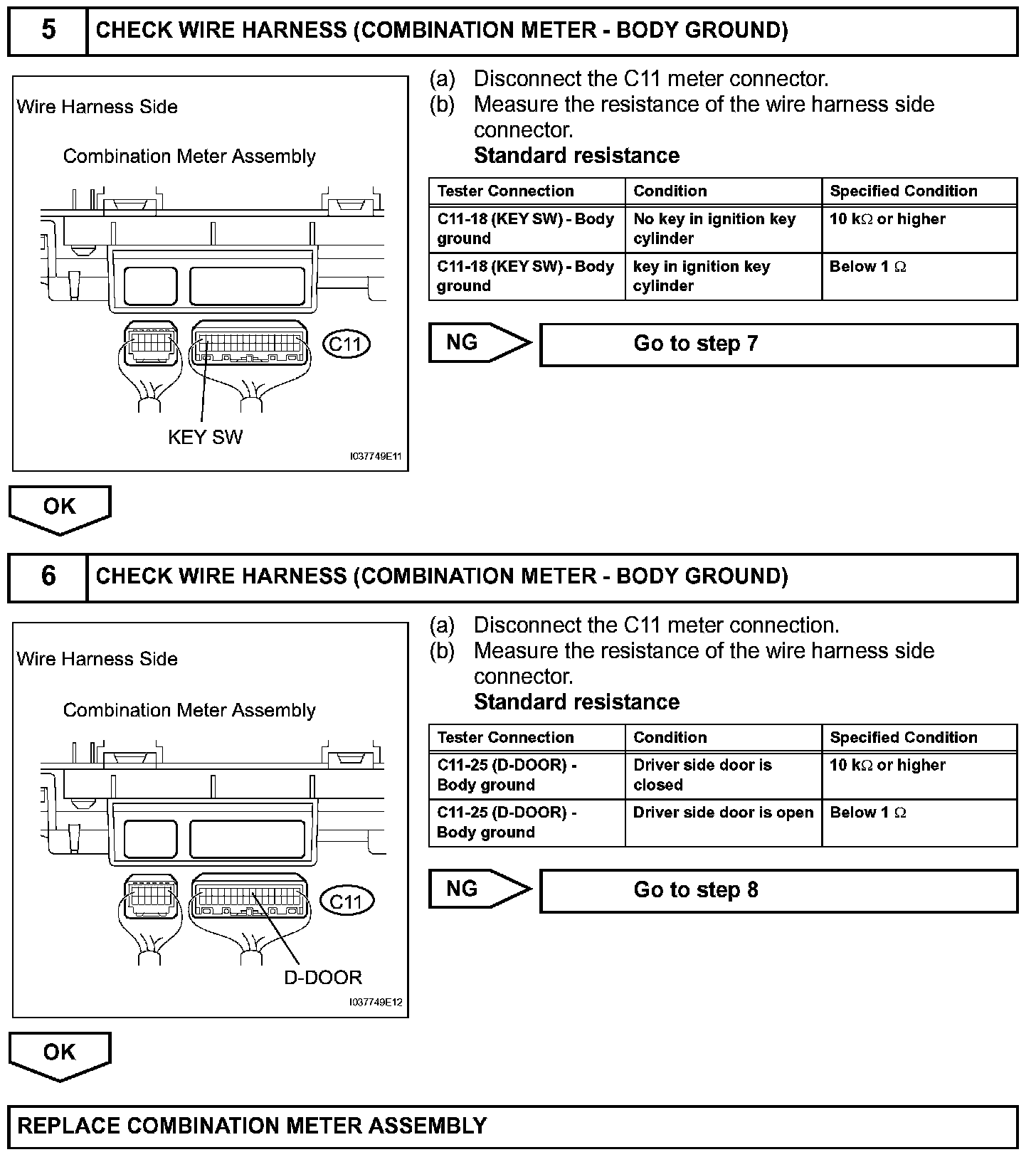

Step 5-6:

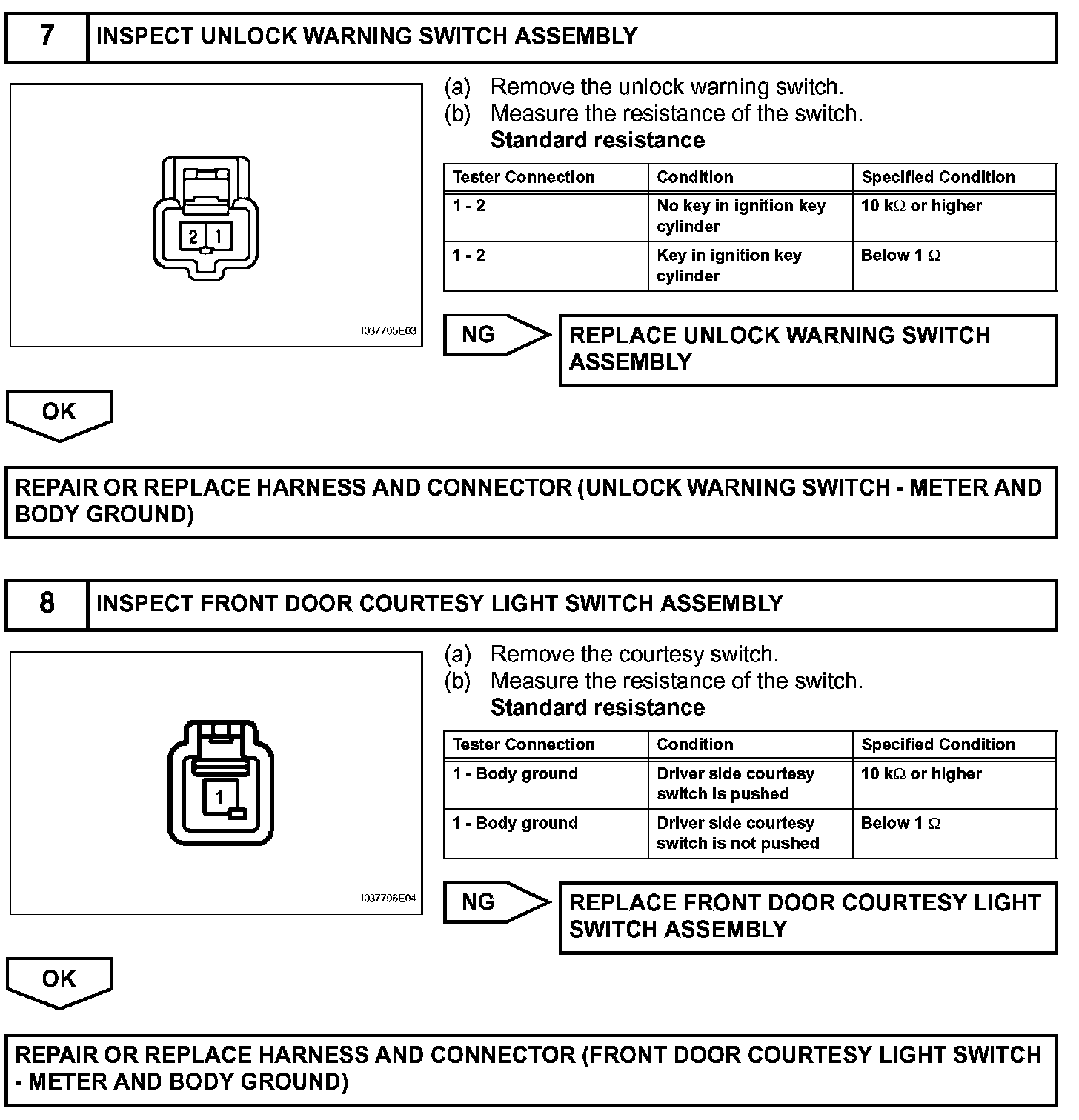

Step 7-8:

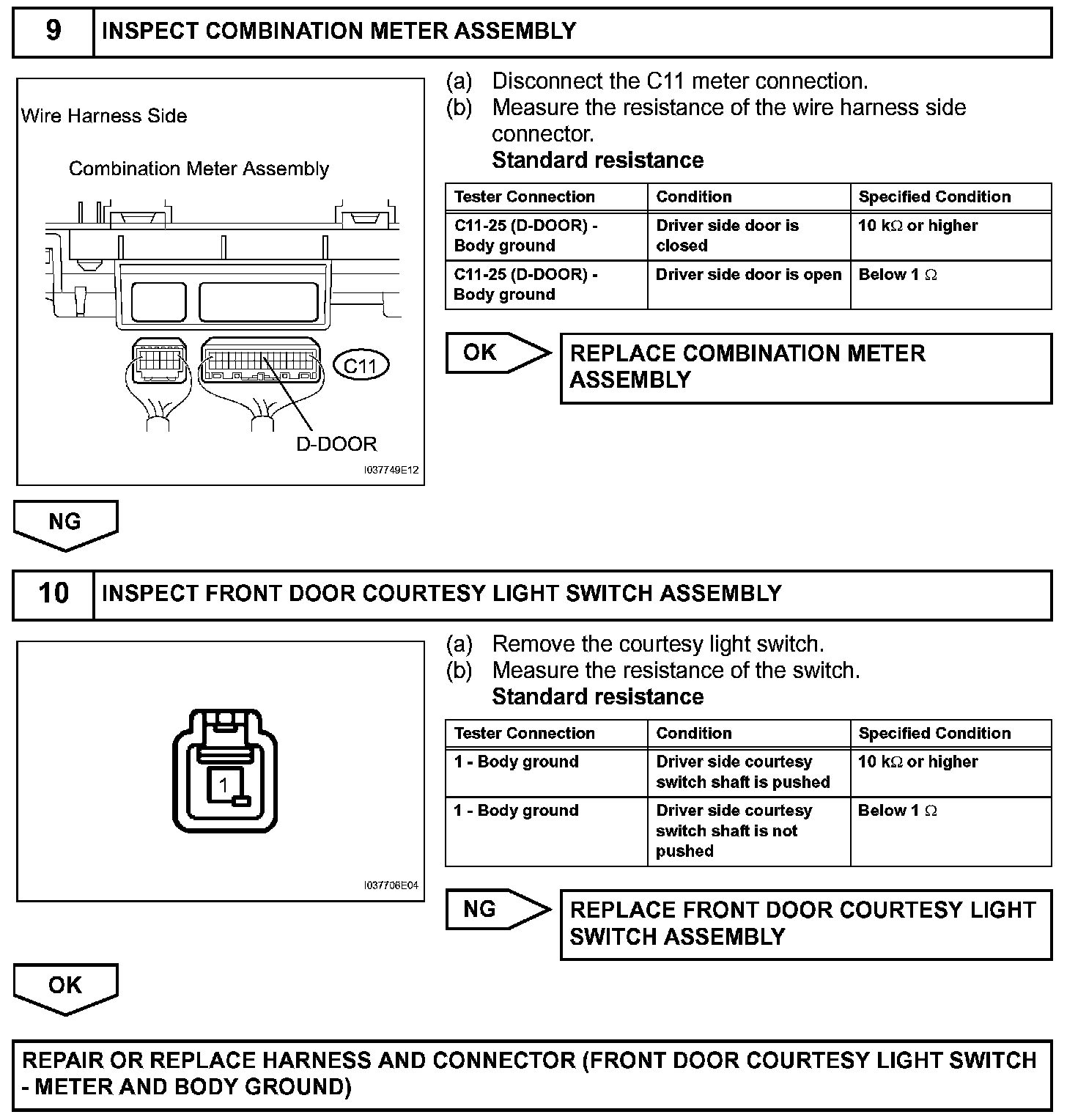

Step 9-10:




INSPECTION PROCEDURE
