Operating Light Control Rheostat Does Not Change Light Brightness

Operating Light Control Rheostat does not Change Light Brightness

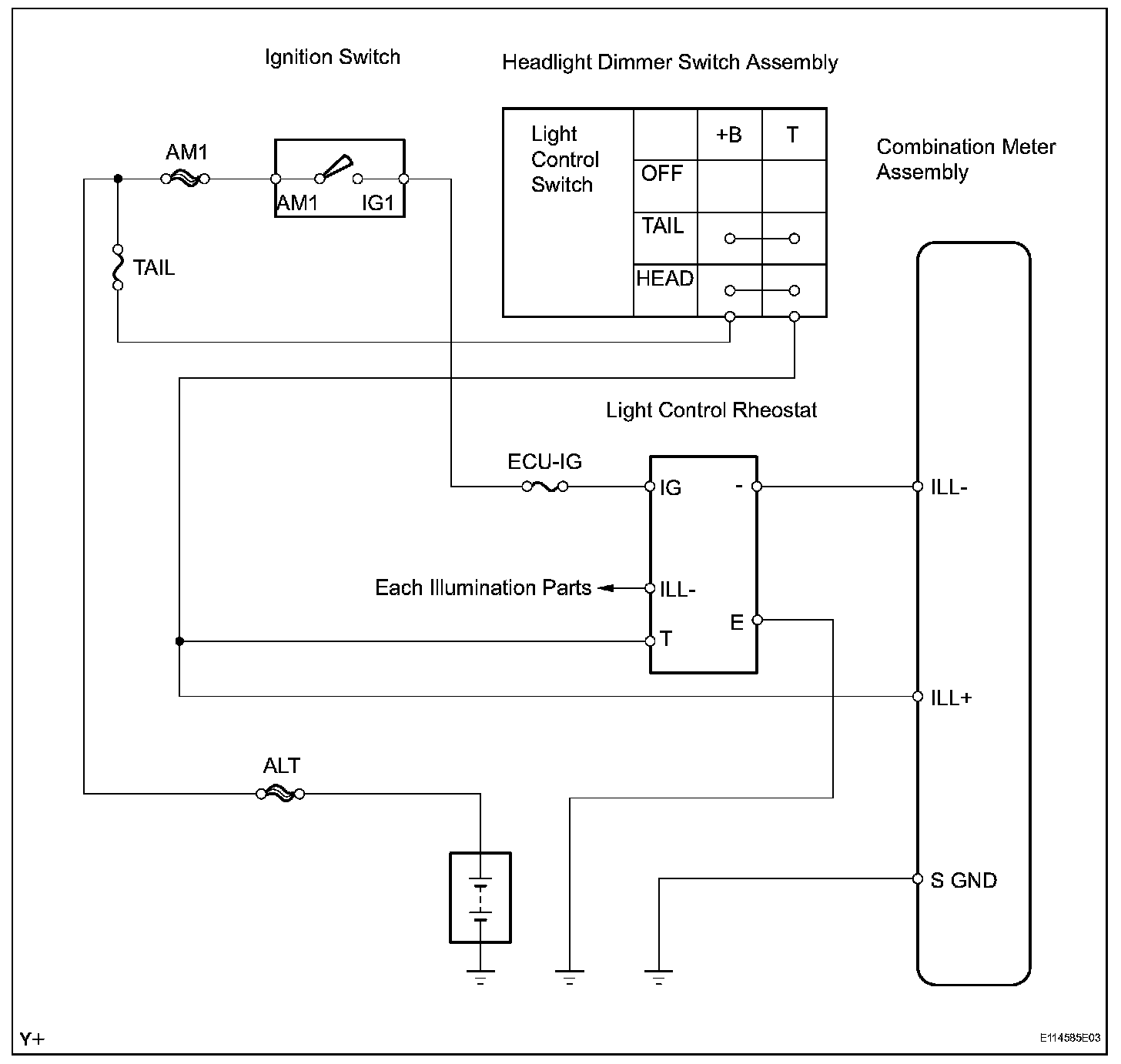

Wiring Diagram:

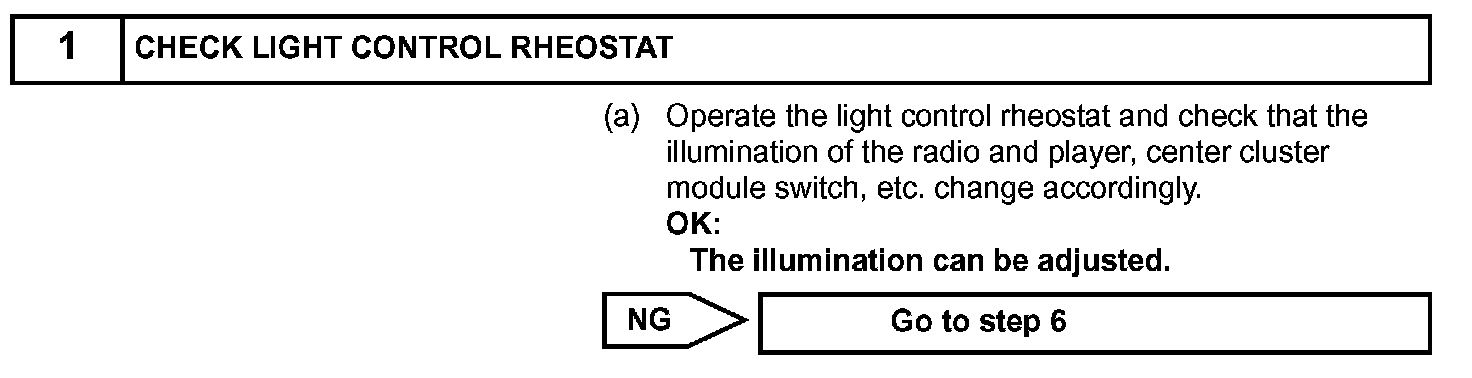

Step 1:

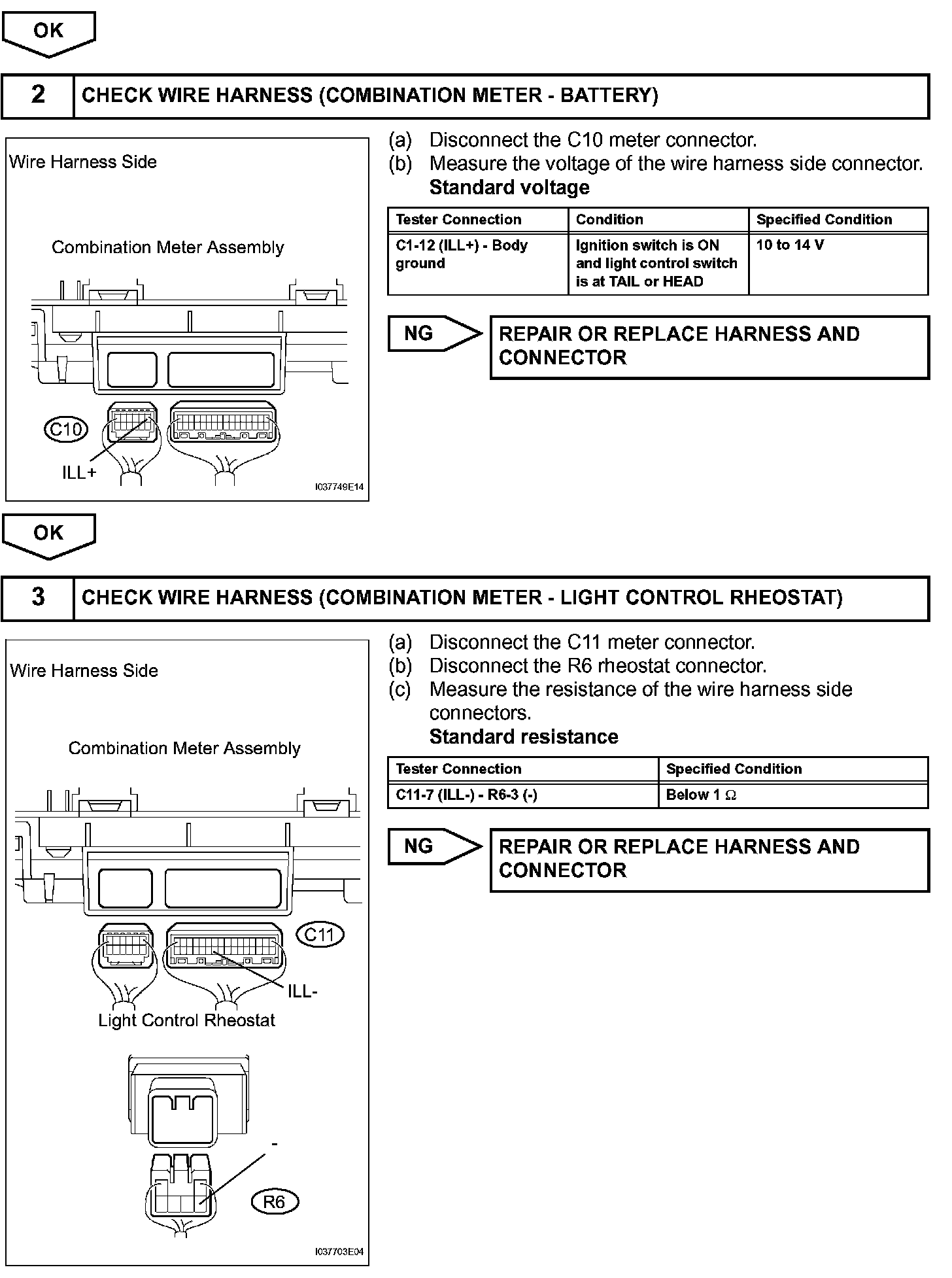

Step 1(continued)-3:

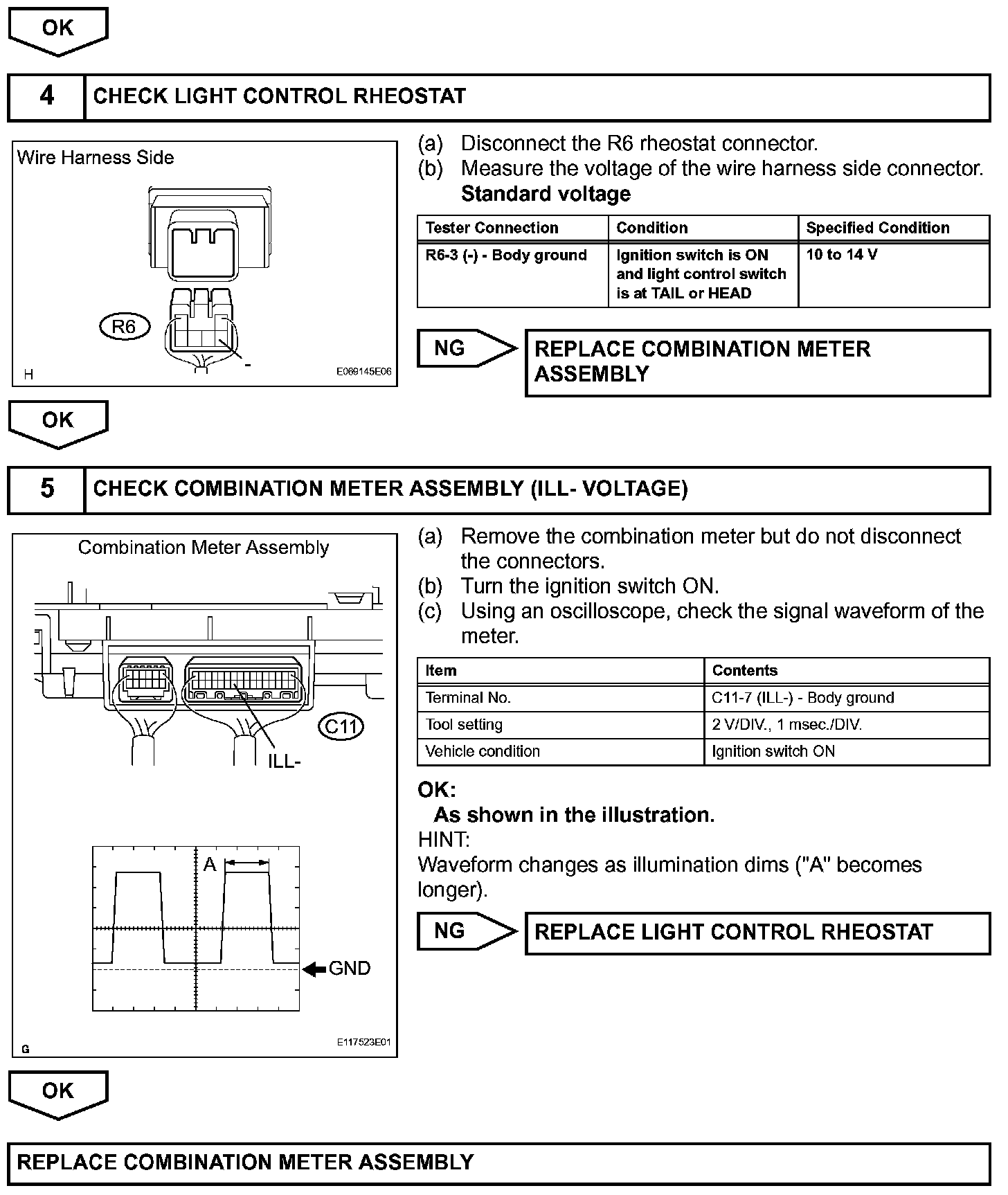

Step 3(continued)-5:




Step 6:




INSPECTION PROCEDURE
