Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

Terminals Of Control Module/Pinouts - Check Combination Meter Assembly:

1. CHECK COMBINATION METER ASSEMBLY

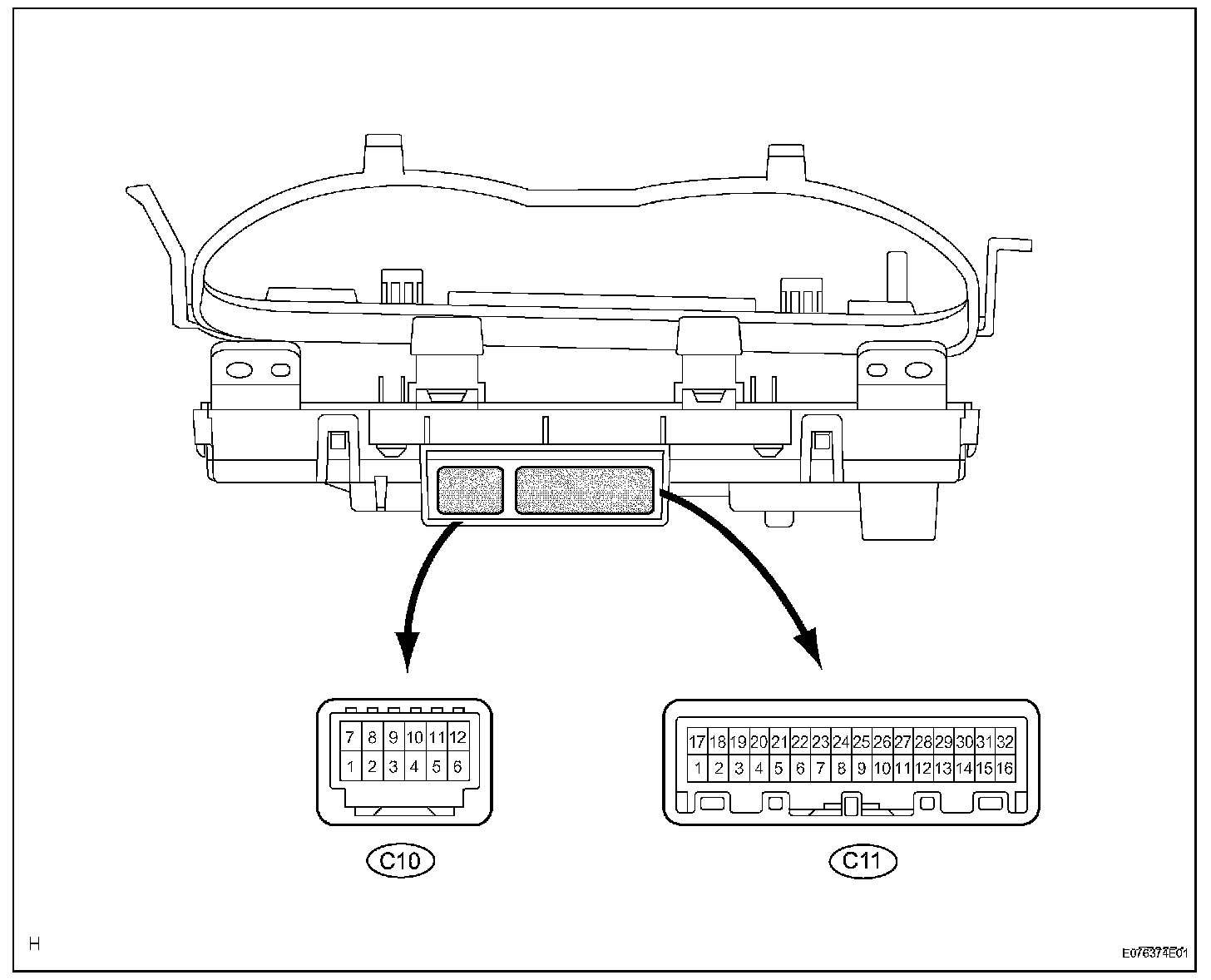

a. Disconnect the C10 and C11 meter connectors.

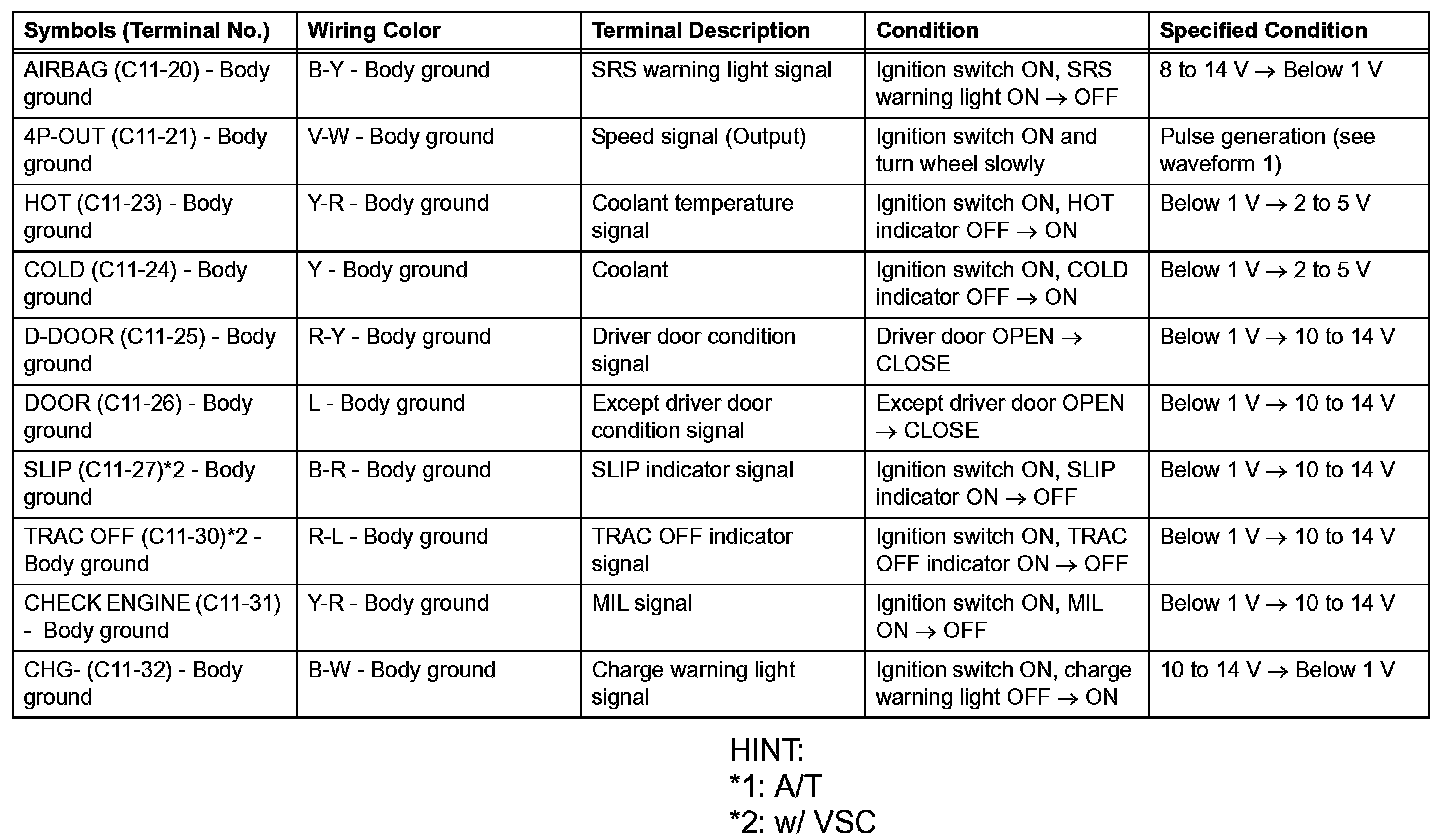

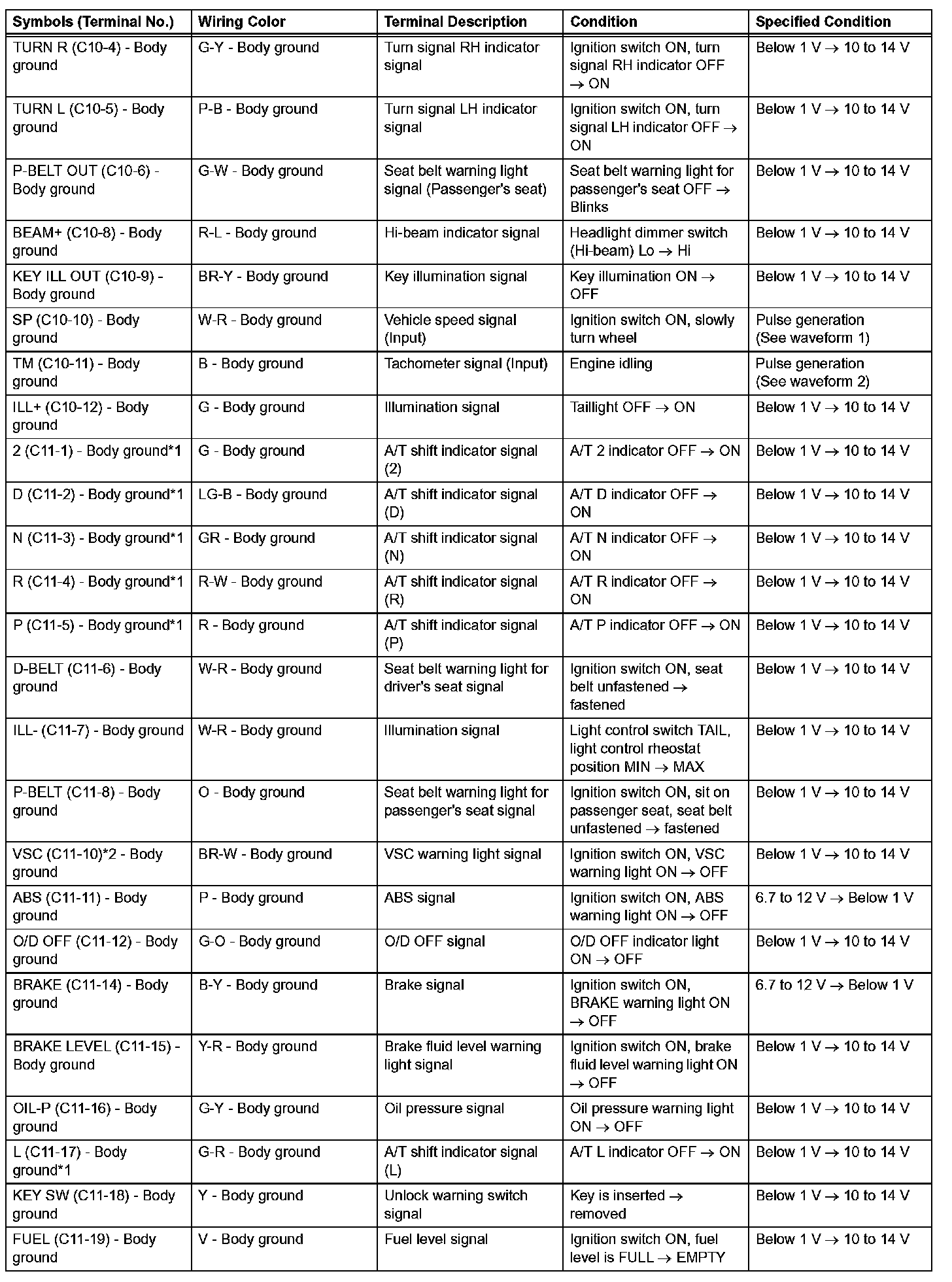

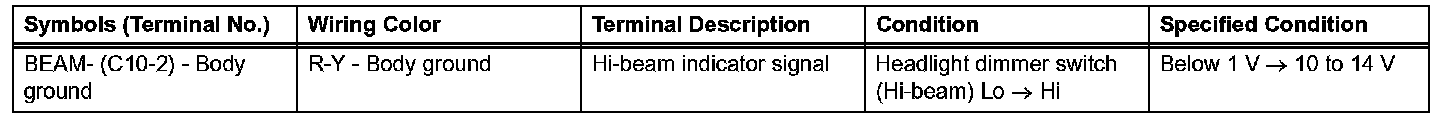

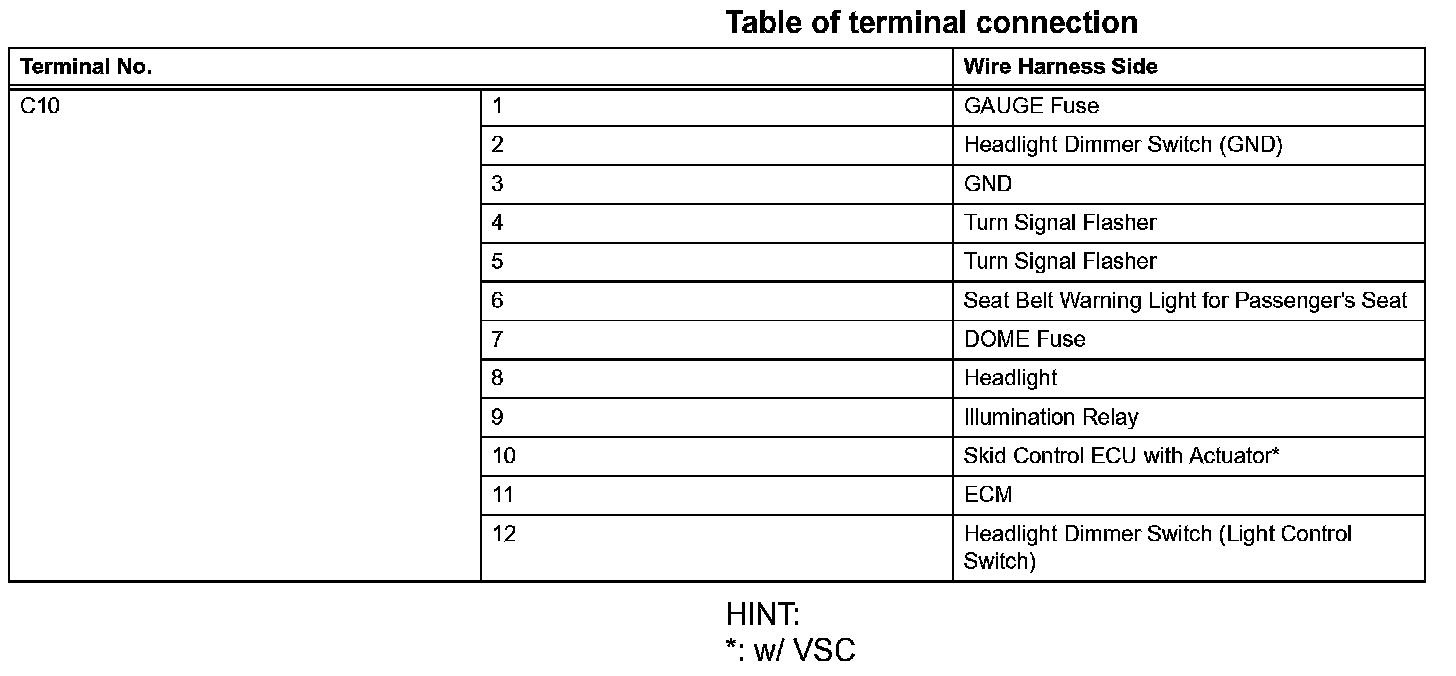

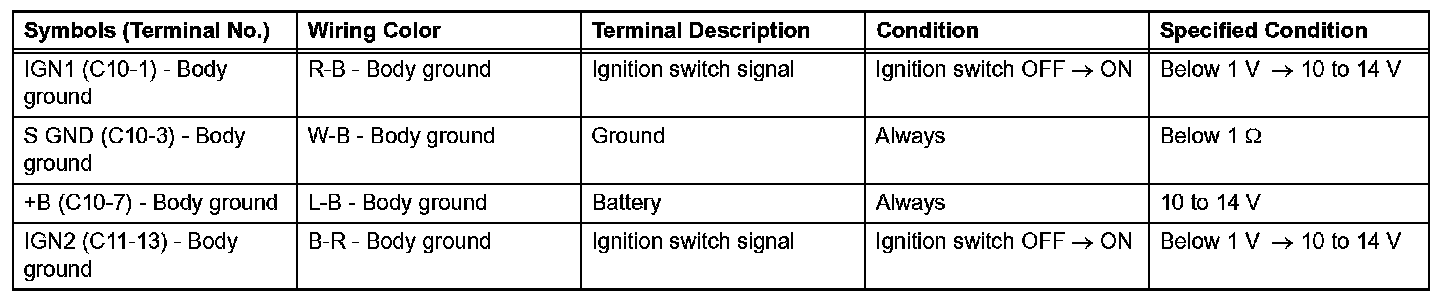

b. Measure the voltage and resistance of the wire harness side connectors.

If the result is not as specified, there may be a malfunction on the wire harness.

c. Reconnect the C10 and C11 meter connectors.

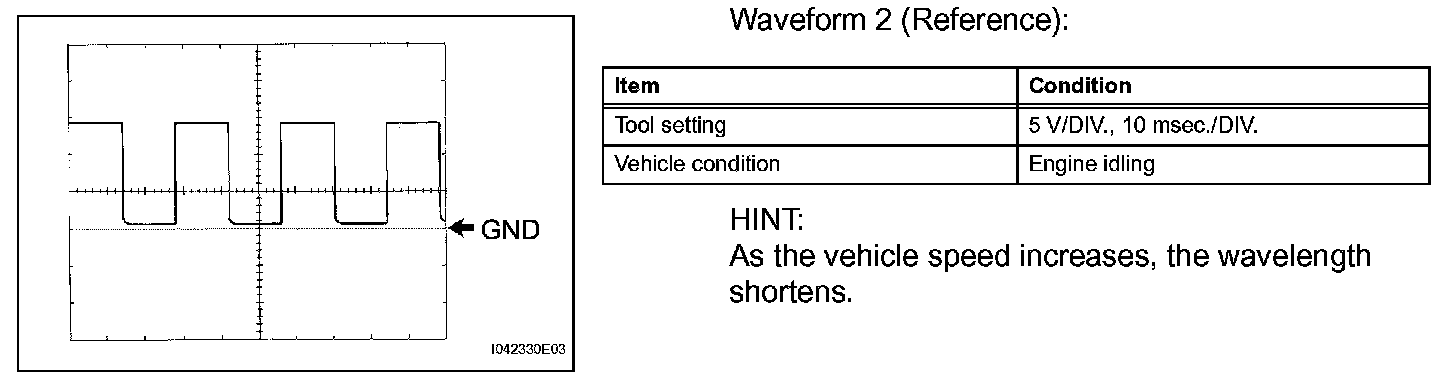

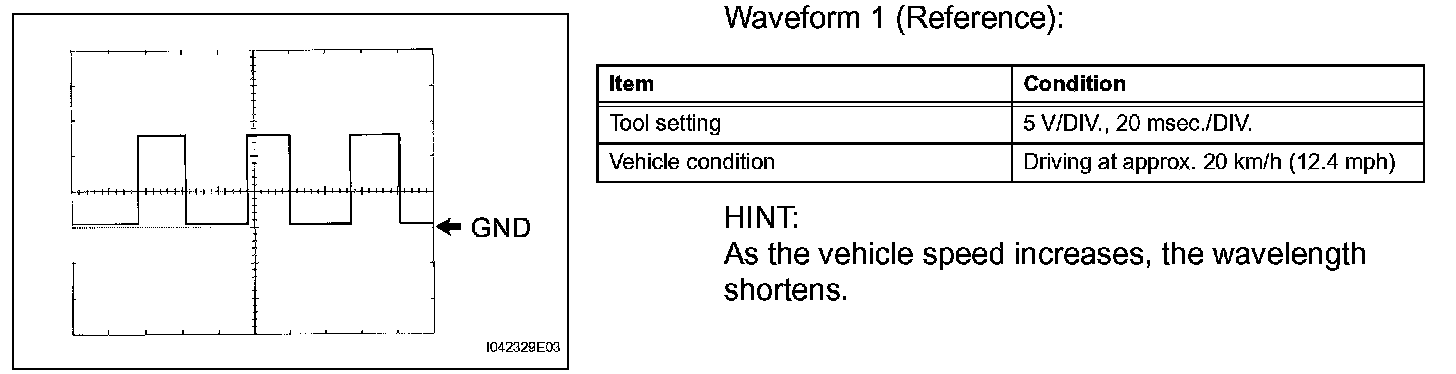

Oscilloscope Waveform:

Part 1:

Part 2:

Part 3:

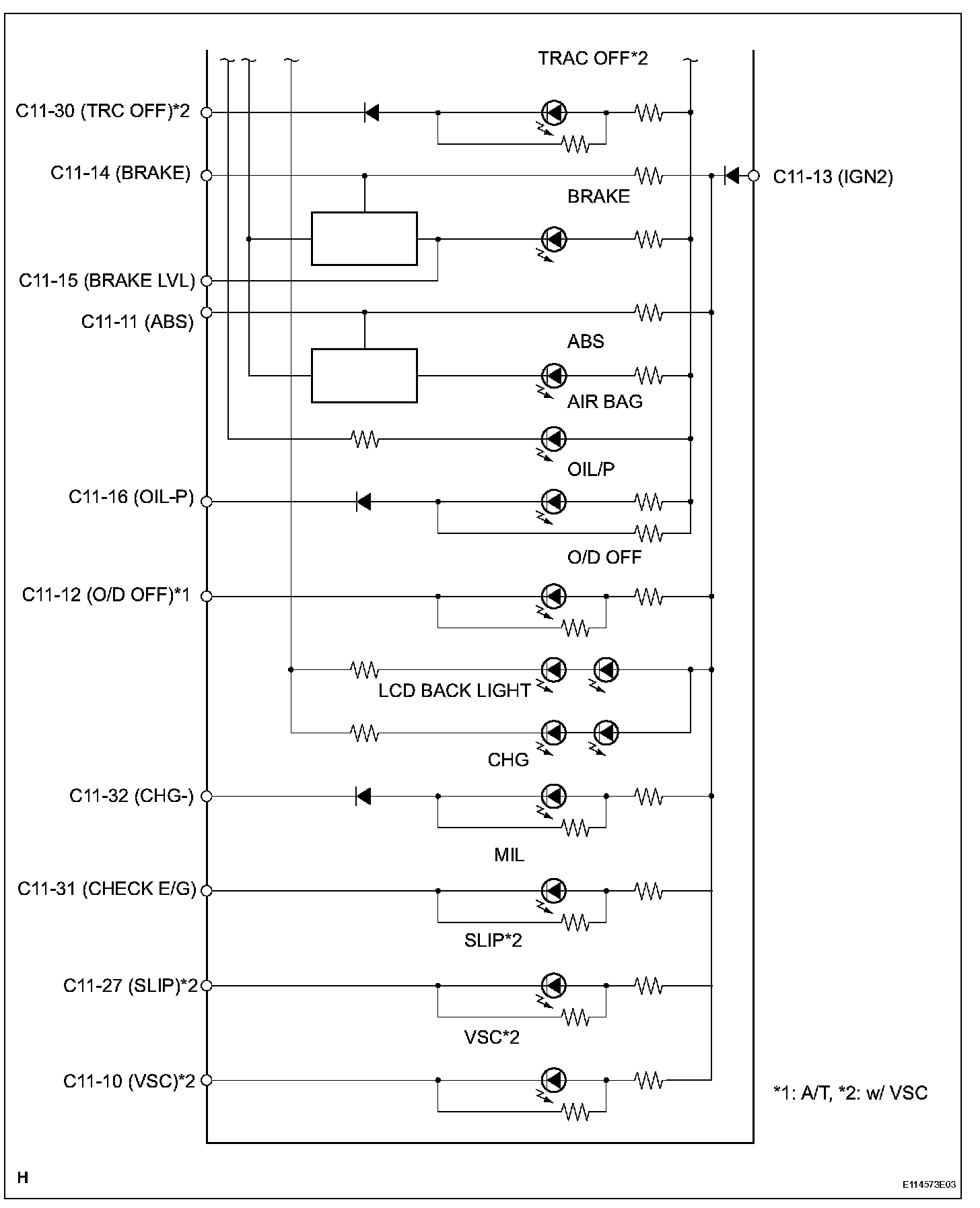

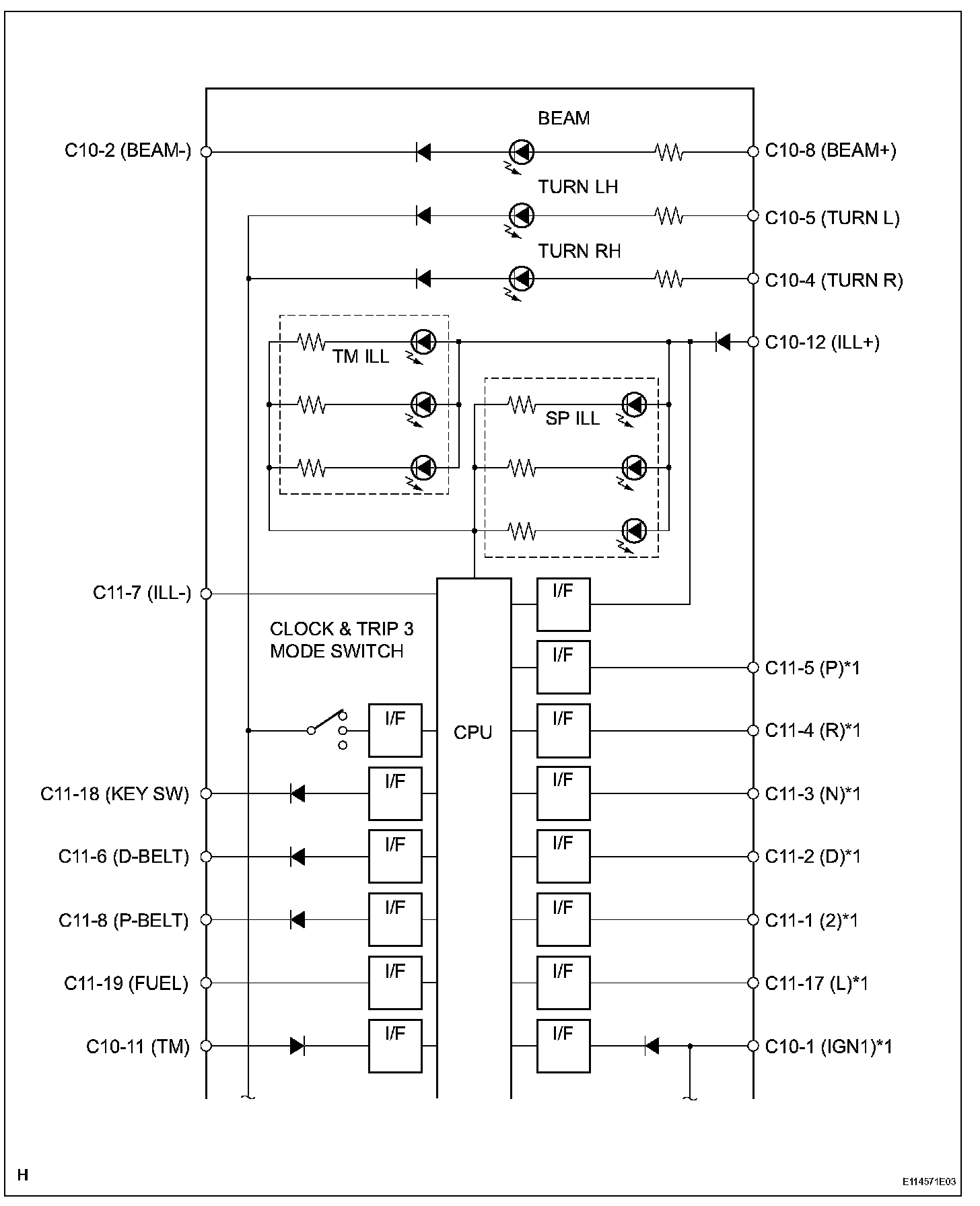

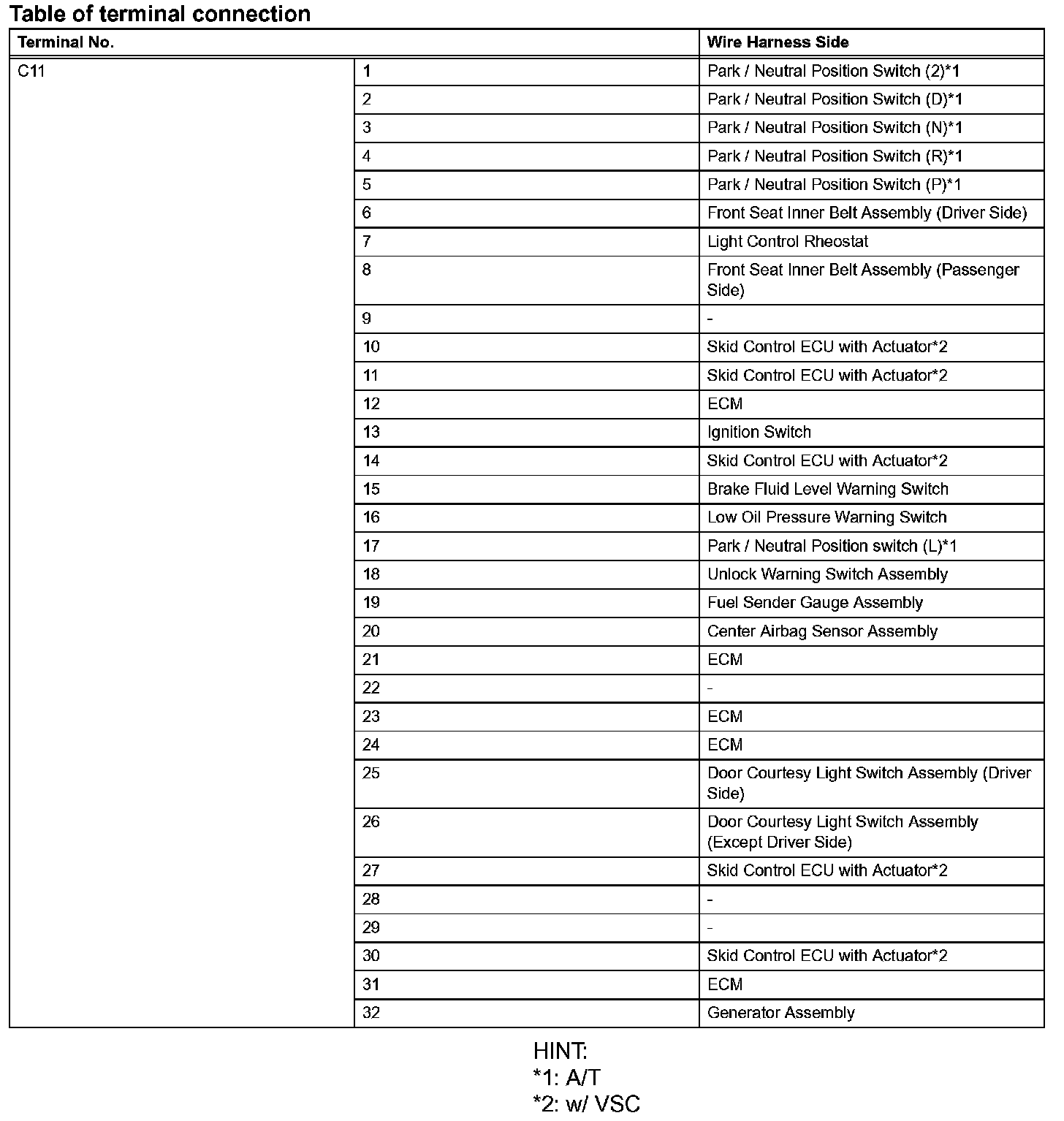

d. Measure the resistance of the connectors.

If the result is not as specified, the combination meter may be malfunctioning.
