Disassembly and Reassembly

DISASSEMBLY

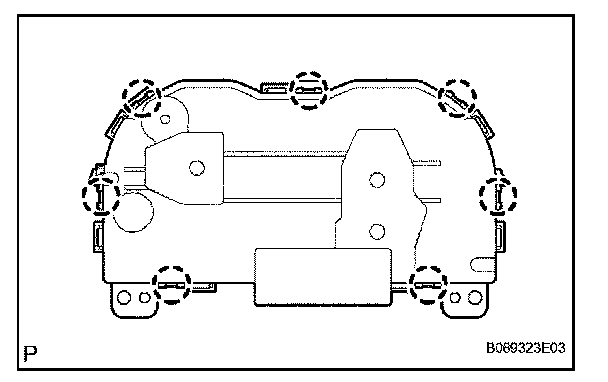

1. REMOVE COMBINATION METER CASE
a. Using a screwdriver, detach the 7 claws and remove the meter case.

HINT: Tape the screwdriver tip before use.

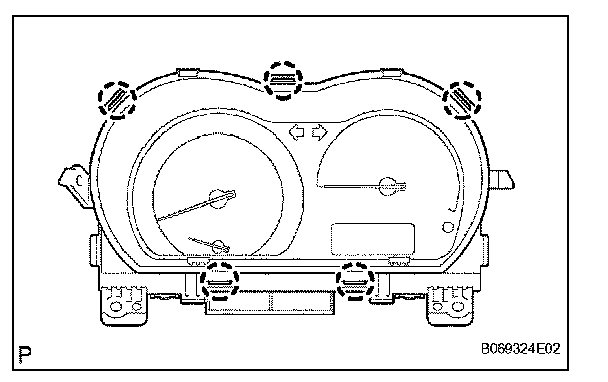

2. REMOVE COMBINATION METER GLASS
a. Using a screwdriver, detach the 5 claws and remove the meter glass.

HINT: Tape the screwdriver tip before use.

REASSEMBLY

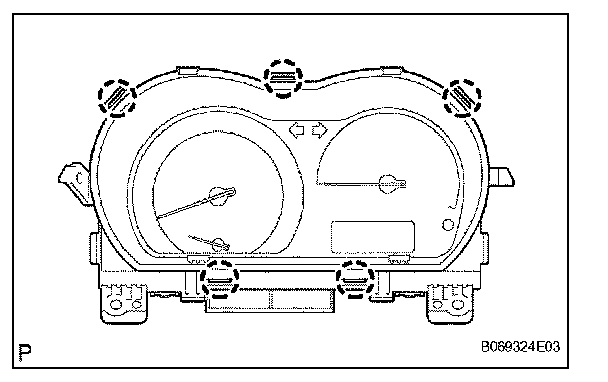

1. INSTALL COMBINATION METER GLASS
a. Attach the 5 claws to install the meter glass.

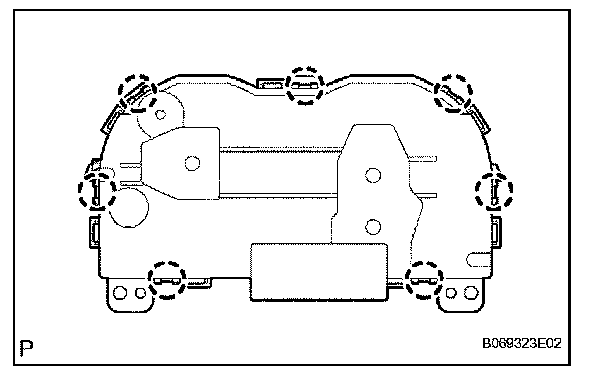

2. INSTALL COMBINATION METER CASE
a. Attach the 7 claws to install the meter case.
