Disassembly

INSTRUMENT PANEL: LOWER INSTRUMENT PANEL: DISASSEMBLY

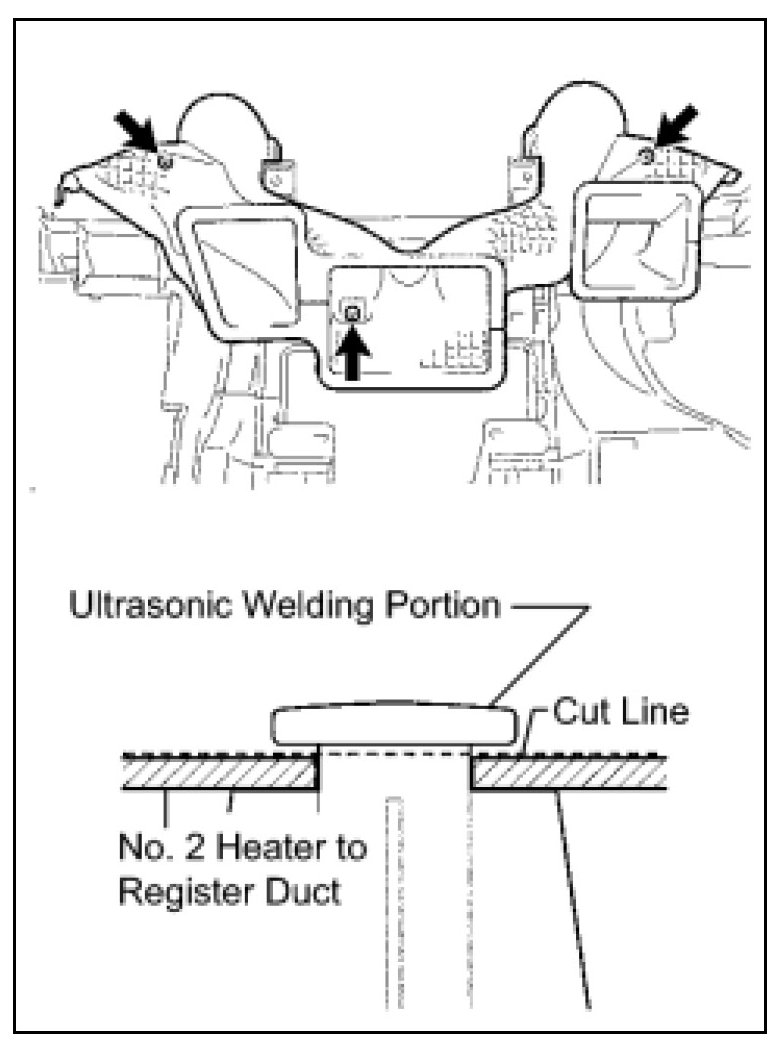

1. REMOVE NO. 2 HEATER TO REGISTER DUCT






(a) Using nippers, cut off the ultrasonic welding portion as shown in the illustration to remove the No. 2 heater to register duct from the instrument panel sub-assembly.

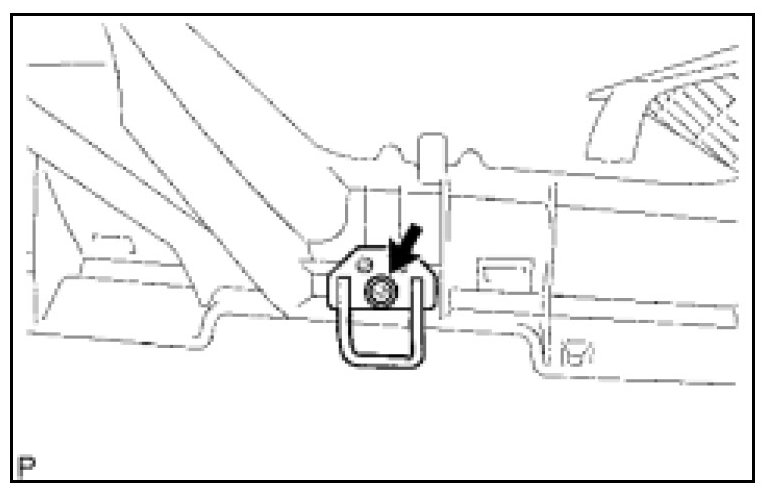

2. REMOVE GLOVE COMPARTMENT DOOR LOCK MOUNTING BRACKET






(a) Remove the screw and glove compartment door lock mounting bracket.
