Cigarette Lighter: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
3. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
4. REMOVE FRONT ASH RECEPTACLE ASSEMBLY
5. REMOVE CIGARETTE LIGHTER COVER

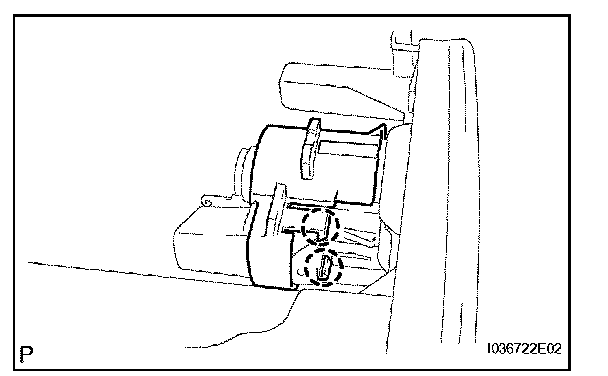

a. Detach the 2 claws and remove the cigarette lighter cover.
6. REMOVE CIGARETTE LIGHTER ASSEMBLY

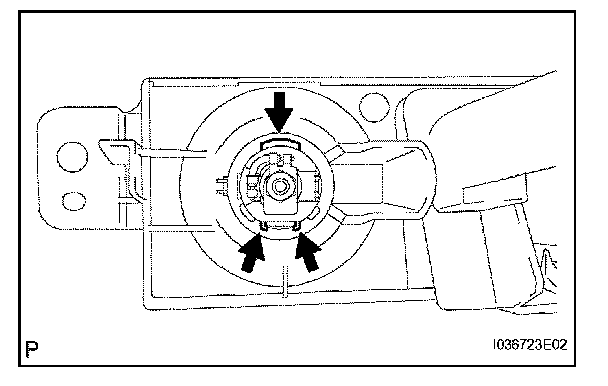

a. Remove the cigarette lighter knob and element.

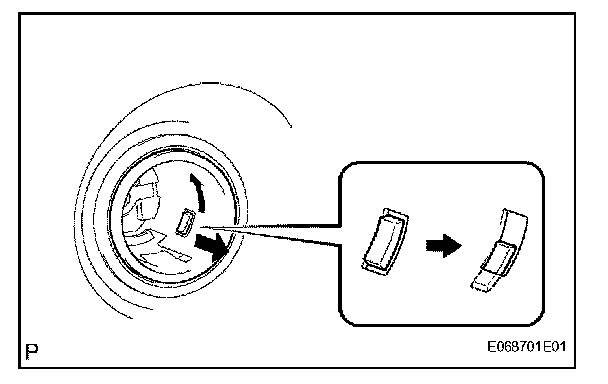

b. Turn the socket in the direction as shown in the illustration, disengage the claw between the socket and the cigarette lighter bezel stay, and pull out the socket.
c. Align the socket with the notch on the cigarette lighter bezel stay, and remove the cigarette lighter.
INSTALLATION
1. INSTALL CIGARETTE LIGHTER ASSEMBLY
a. Align the socket with the notch on the cigarette lighter bezel stay and push the cigarette lighter in as hard as possible.
b. Install the cigarette lighter knob and element.
2. INSTALL CIGARETTE LIGHTER COVER

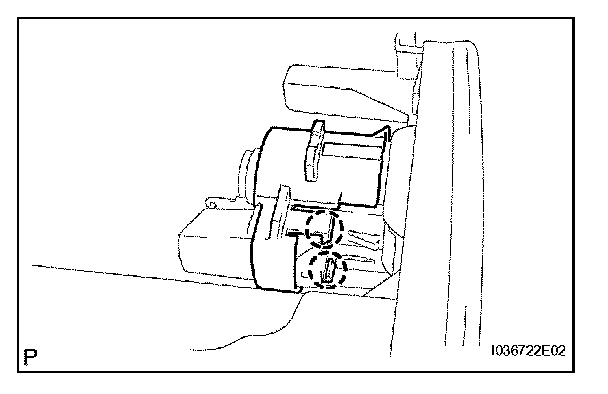

a. Attach the 2 claws to install the cigarette lighter cover.
3. INSTALL FRONT ASH RECEPTACLE ASSEMBLY
4. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
5. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
