Disassembly and Reassembly

DISASSEMBLY

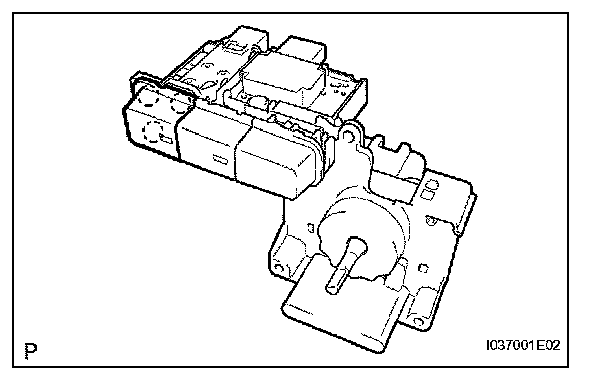

1. REMOVE NO. 7 CENTER CLUSTER MODULE KNOB
a. Detach the 3 claws and remove the center cluster module knob.

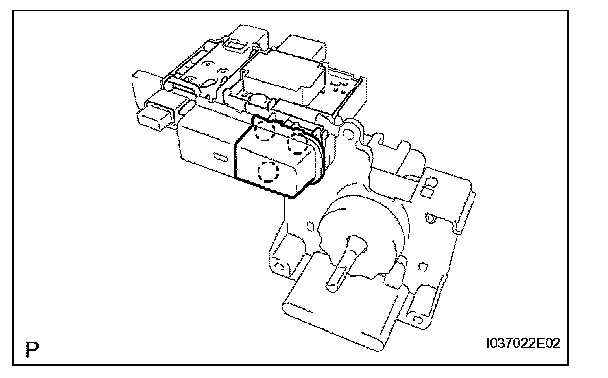

2. REMOVE NO. 5 CENTER CLUSTER MODULE KNOB
a. Detach the 3 claws and remove the center cluster module knob.

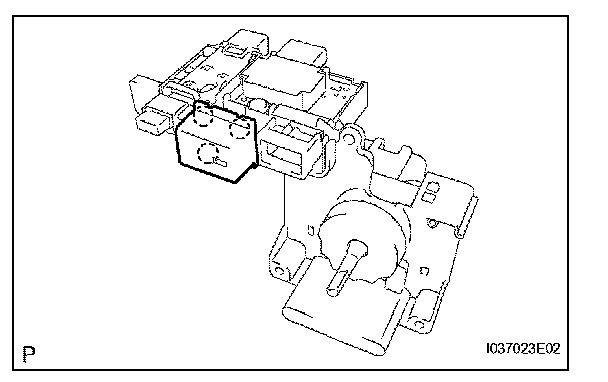

3. REMOVE NO. 6 CENTER CLUSTER MODULE KNOB
a. Detach the 3 claws and remove the center cluster module knob.

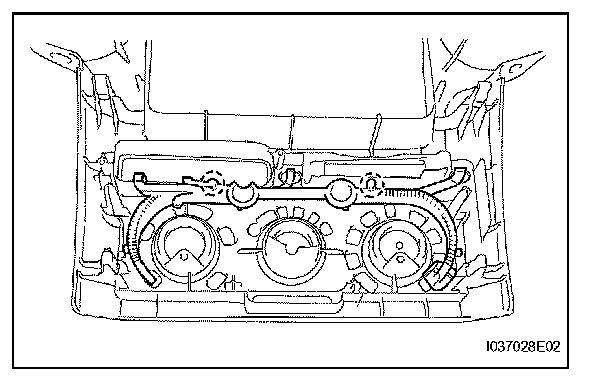

4. REMOVE CENTER CLUSTER MODULE INDICATOR LENS ASSEMBLY
a. Detach the 2 claws, and then remove the center cluster module.

REASSEMBLY

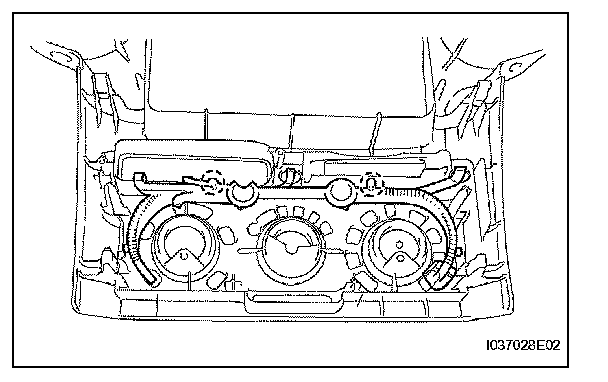

1. INSTALL CENTER CLUSTER MODULE INDICATOR LENS ASSEMBLY
a. Attach the 2 claws to install the center cluster module indicator lens.




2. INSTALL NO. 6 CENTER CLUSTER MODULE KNOB
a. Attach the 3 claws to install the center cluster module knob.

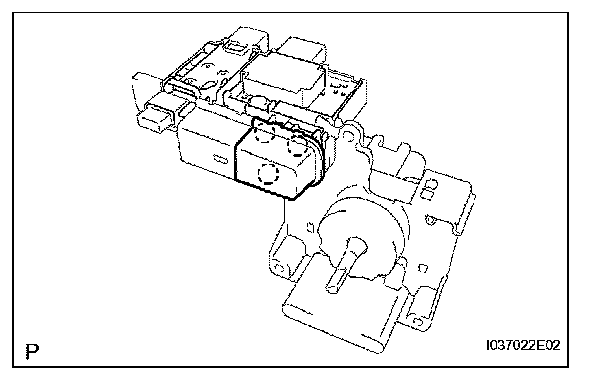

3. INSTALL NO. 5 CENTER CLUSTER MODULE KNOB
a. Attach the 3 claws to install the center cluster module knob.

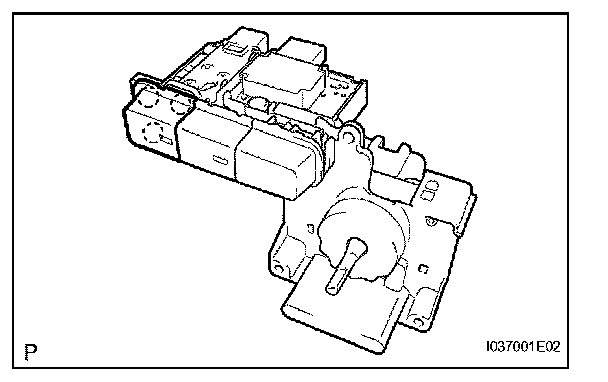

4. INSTALL NO. 7 CENTER CLUSTER MODULE KNOB
a. Attach the 3 claws to install the center cluster module knob.
