System Diagram

Heated Oxygen Sensor(for Bank 1 Sensor 2):



Heated Oxygen Sensor(for Bank 1 Sensor 2):



Heated Oxygen Sensor(for Bank 1 Sensor 2):

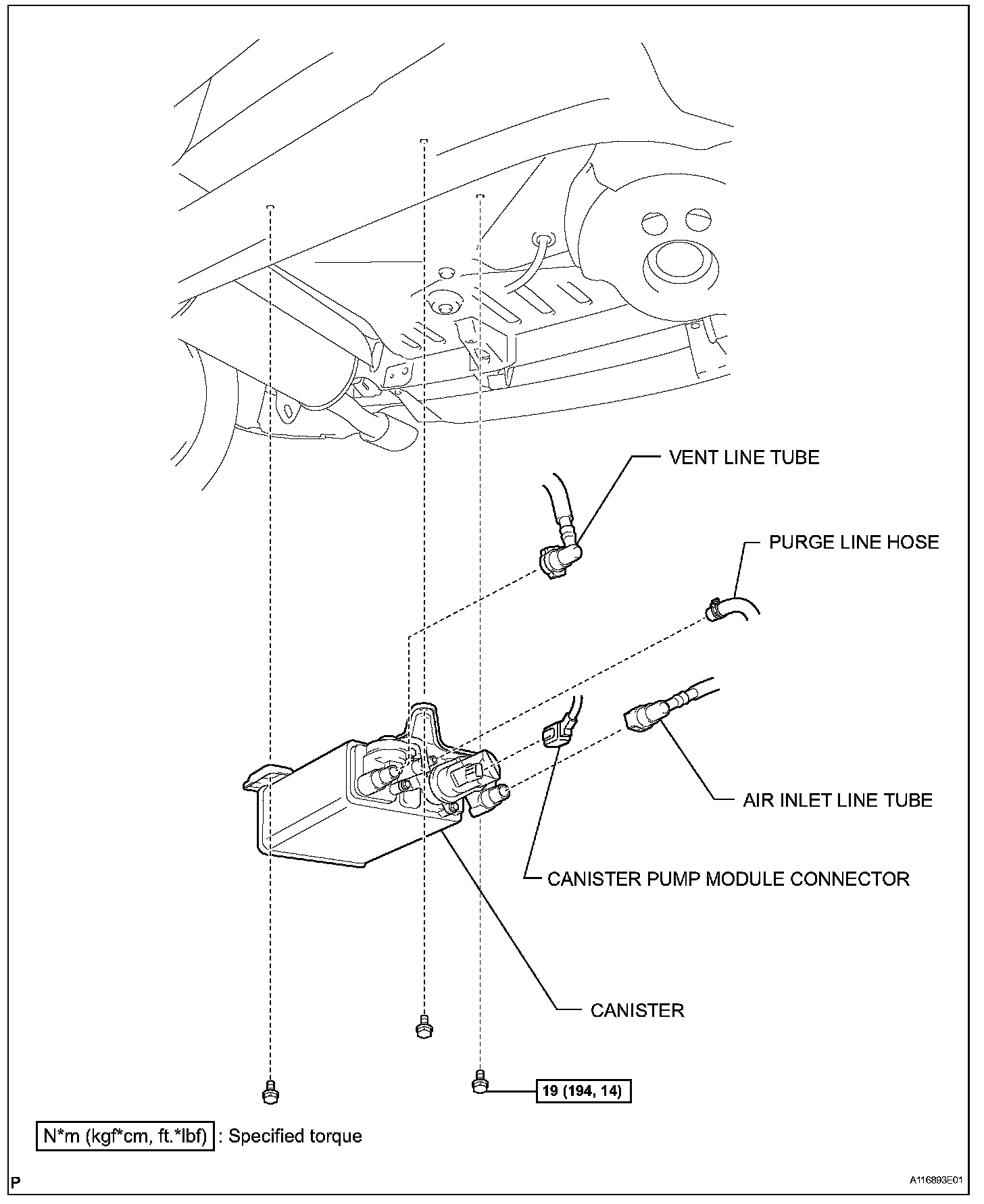

Canister:

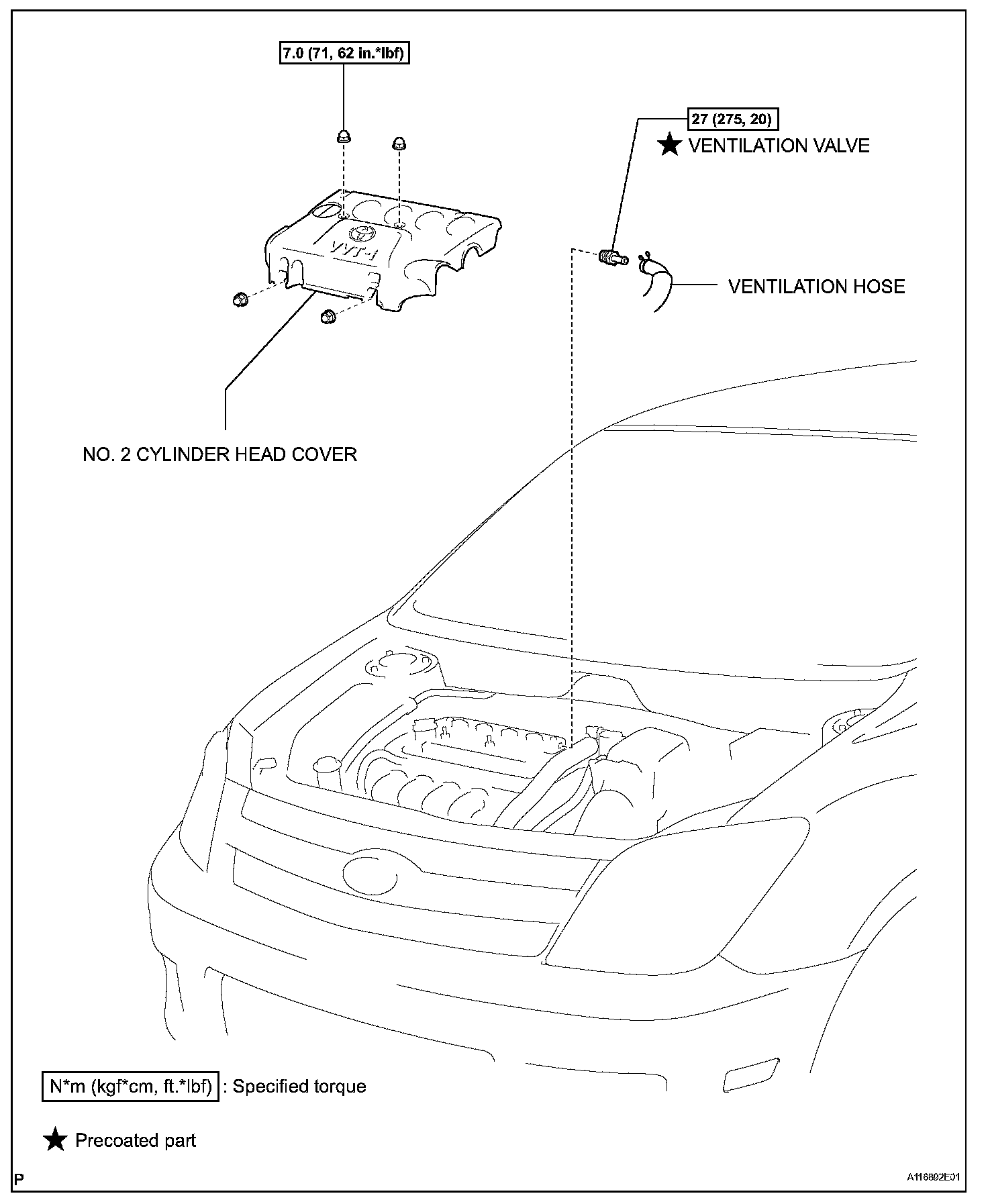

Ventilation Valve:

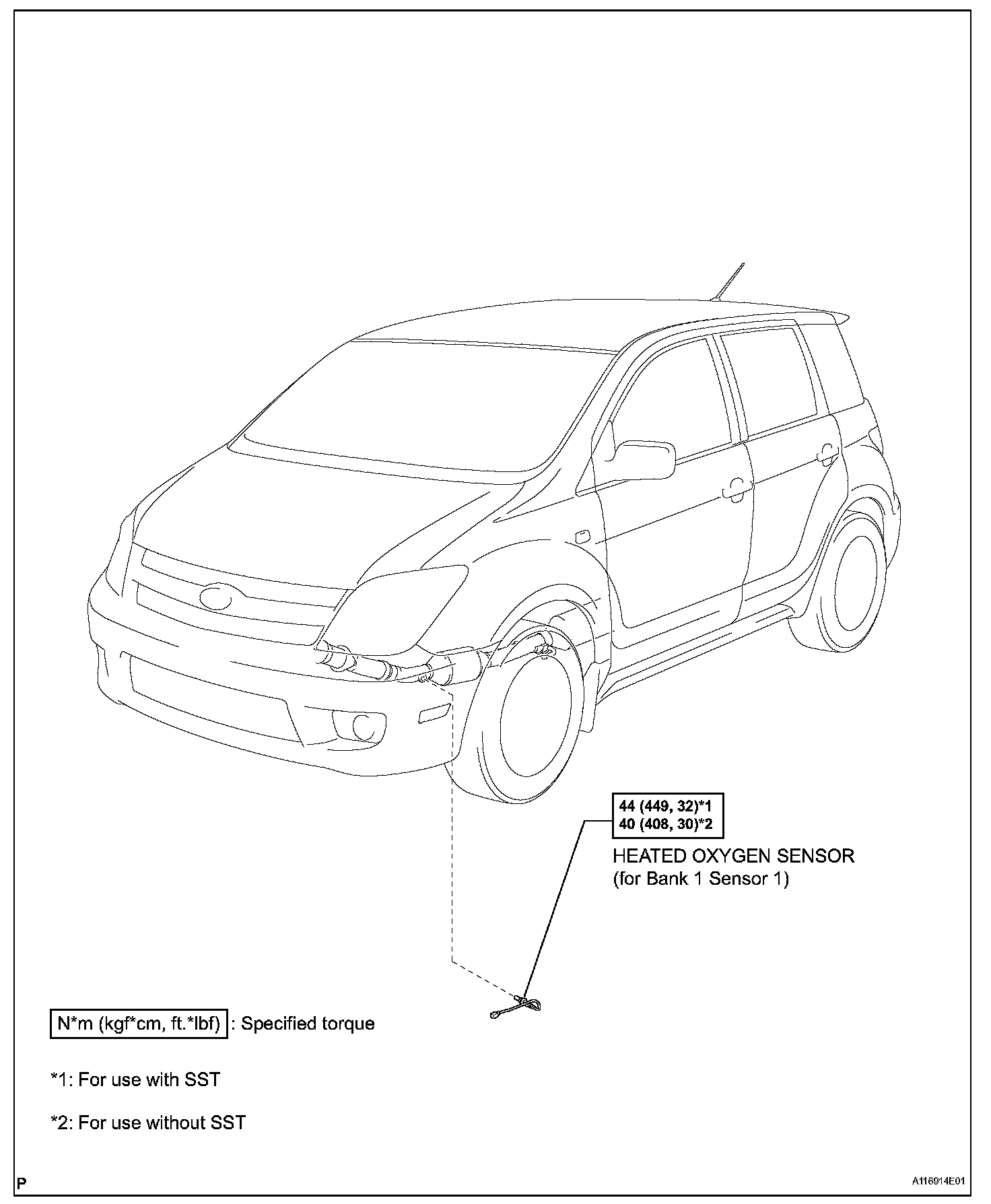

Heated Oxygen Sensor(for Bank 1 Sensor 1):
