Home >> Scion >> 2006 >> xA L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Instrument Cluster / Carrier

Instrument Cluster / Carrier

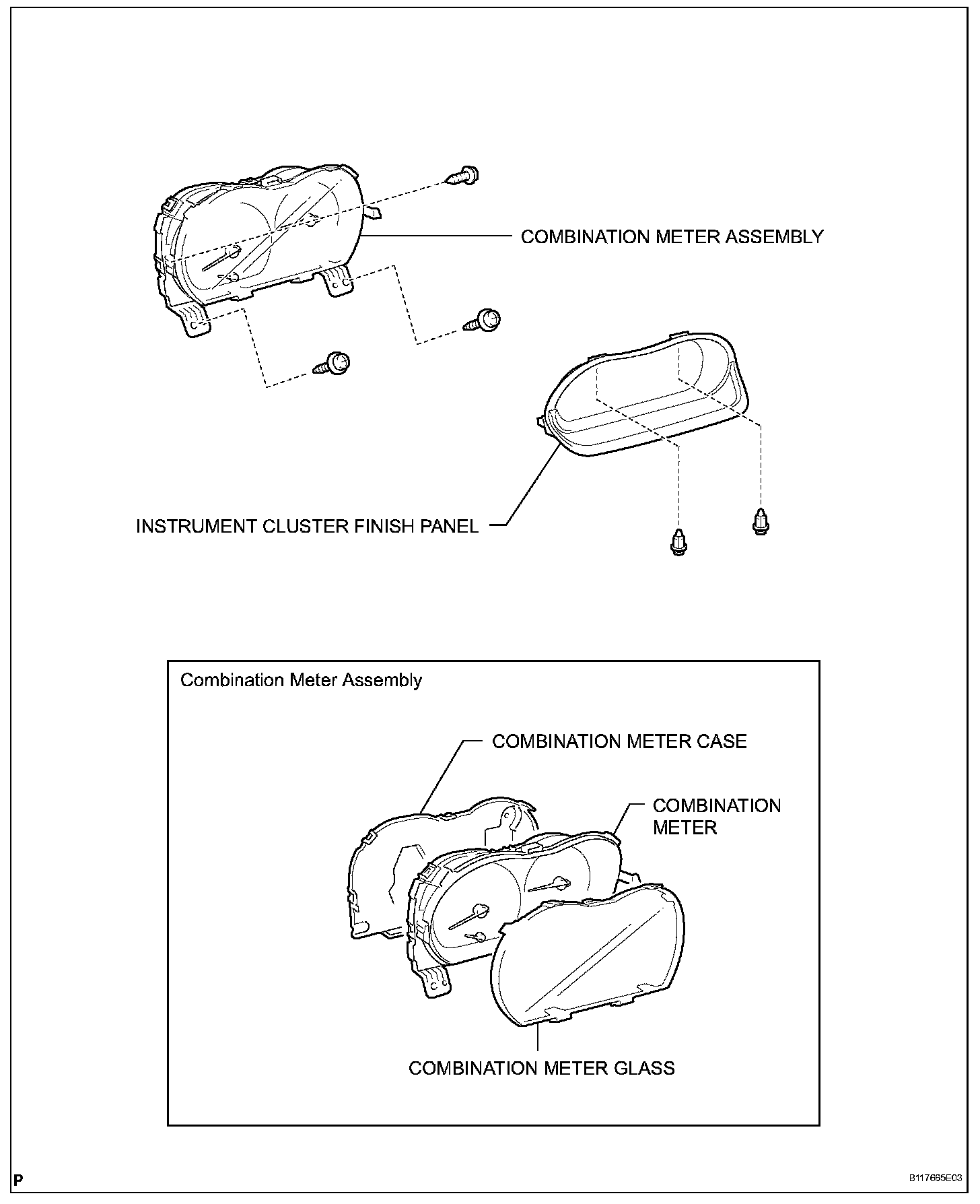

Combination Meter:

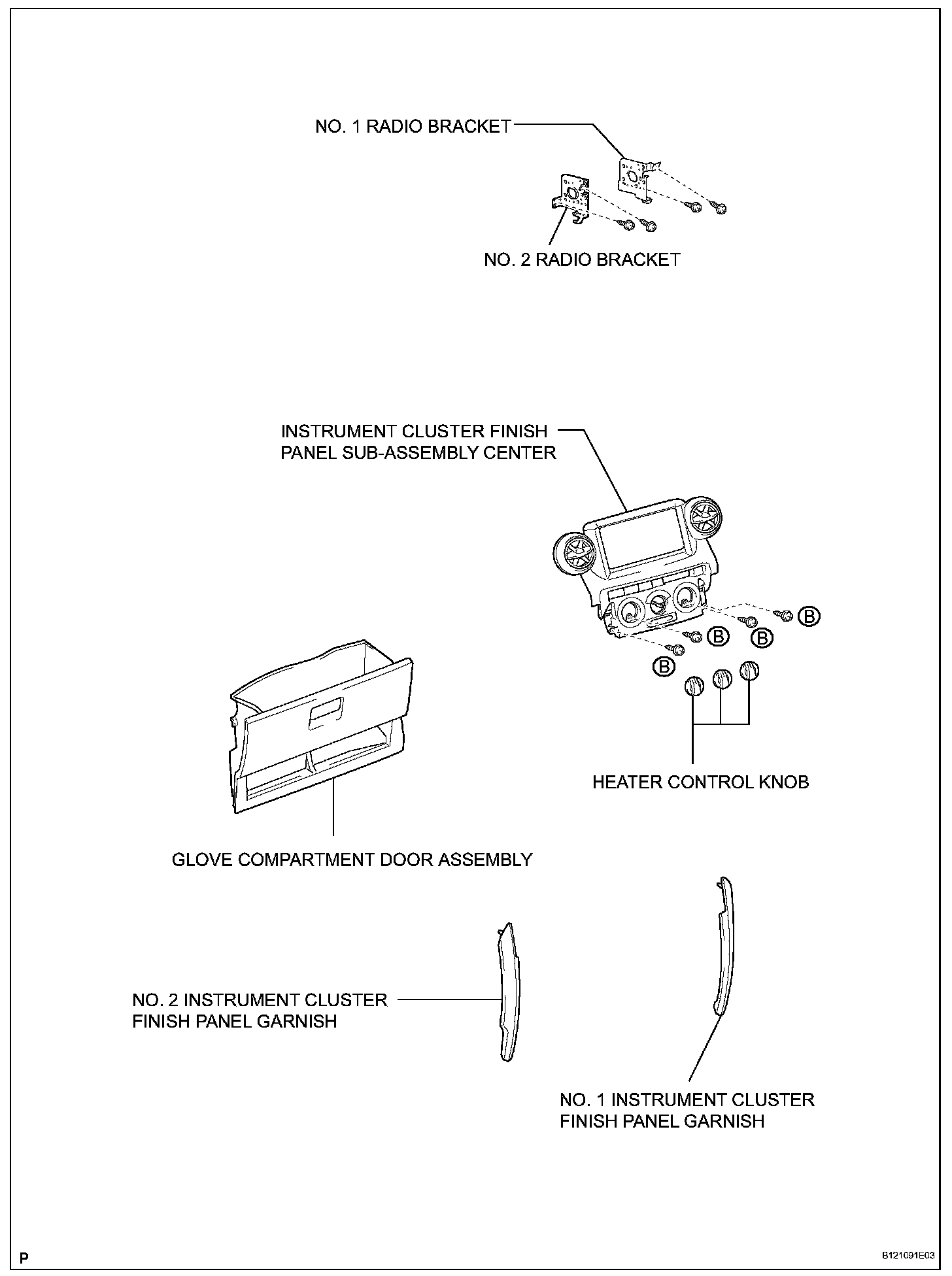

Upper Instrument Panel:

Upper Instrument Panel:

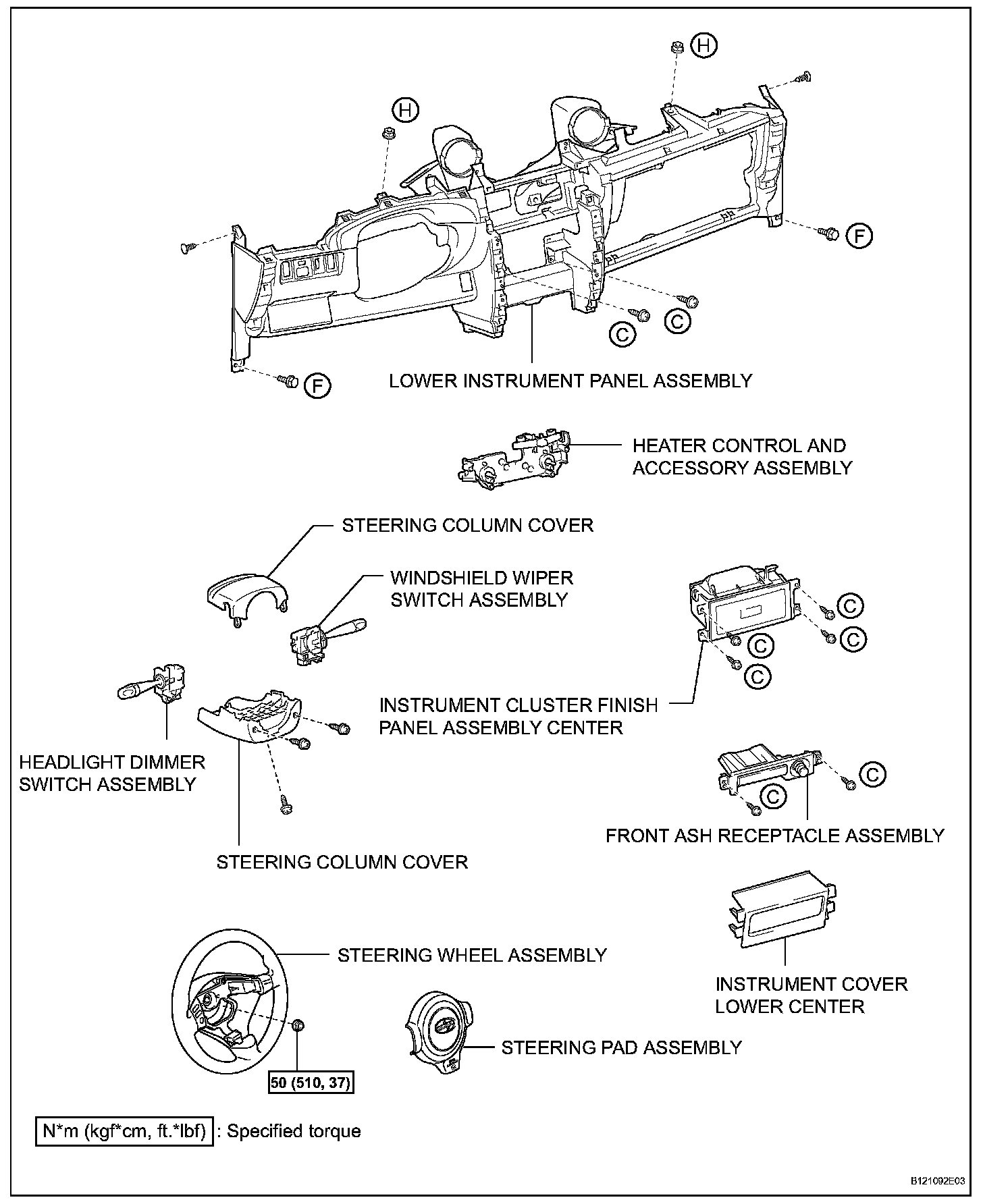

Lower Instrument Panel:

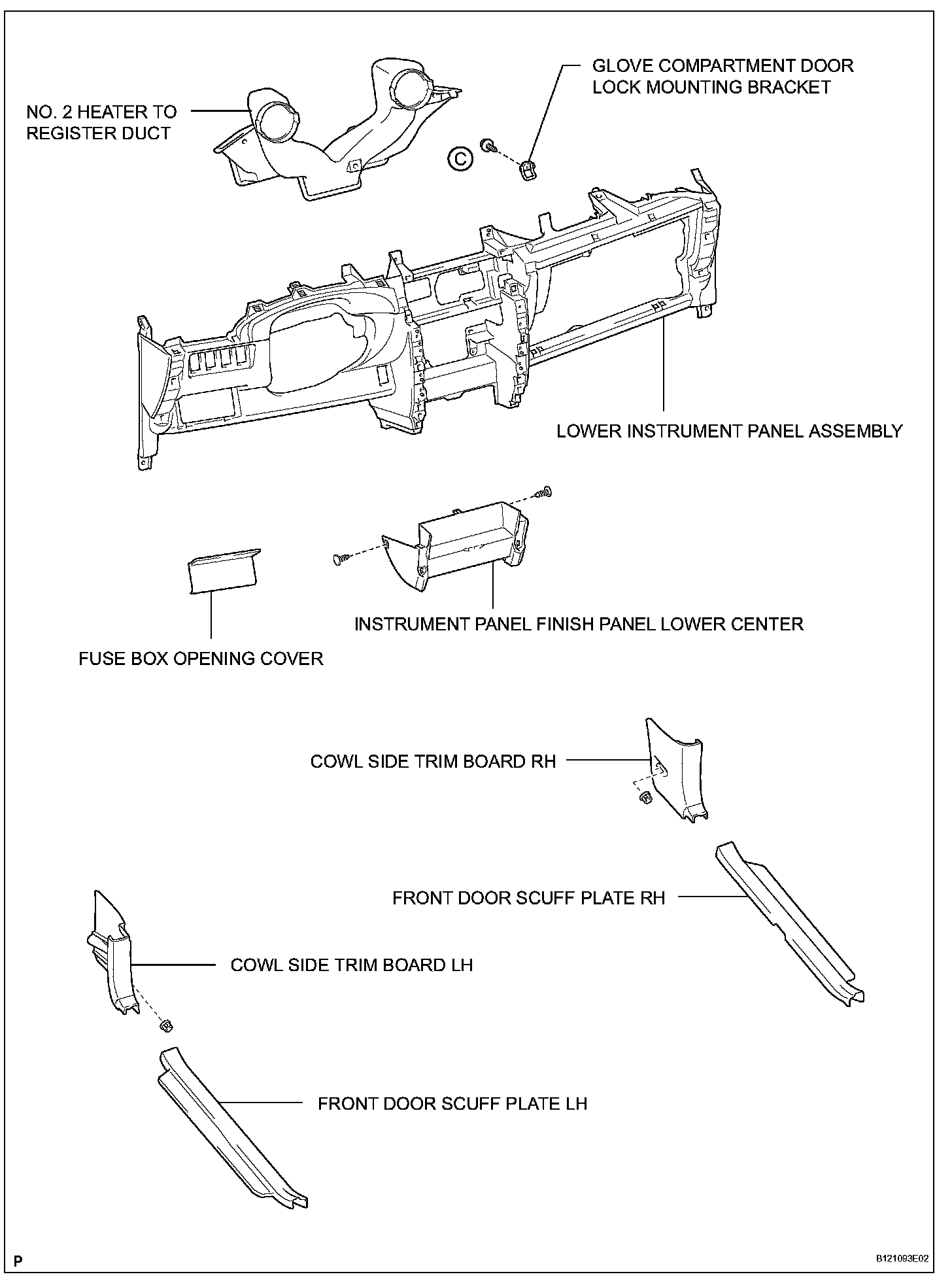

Lower Instrument Panel:
