Home >> Scion >> 2006 >> xA L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module >> Vehicle Stability Control System

Vehicle Stability Control System

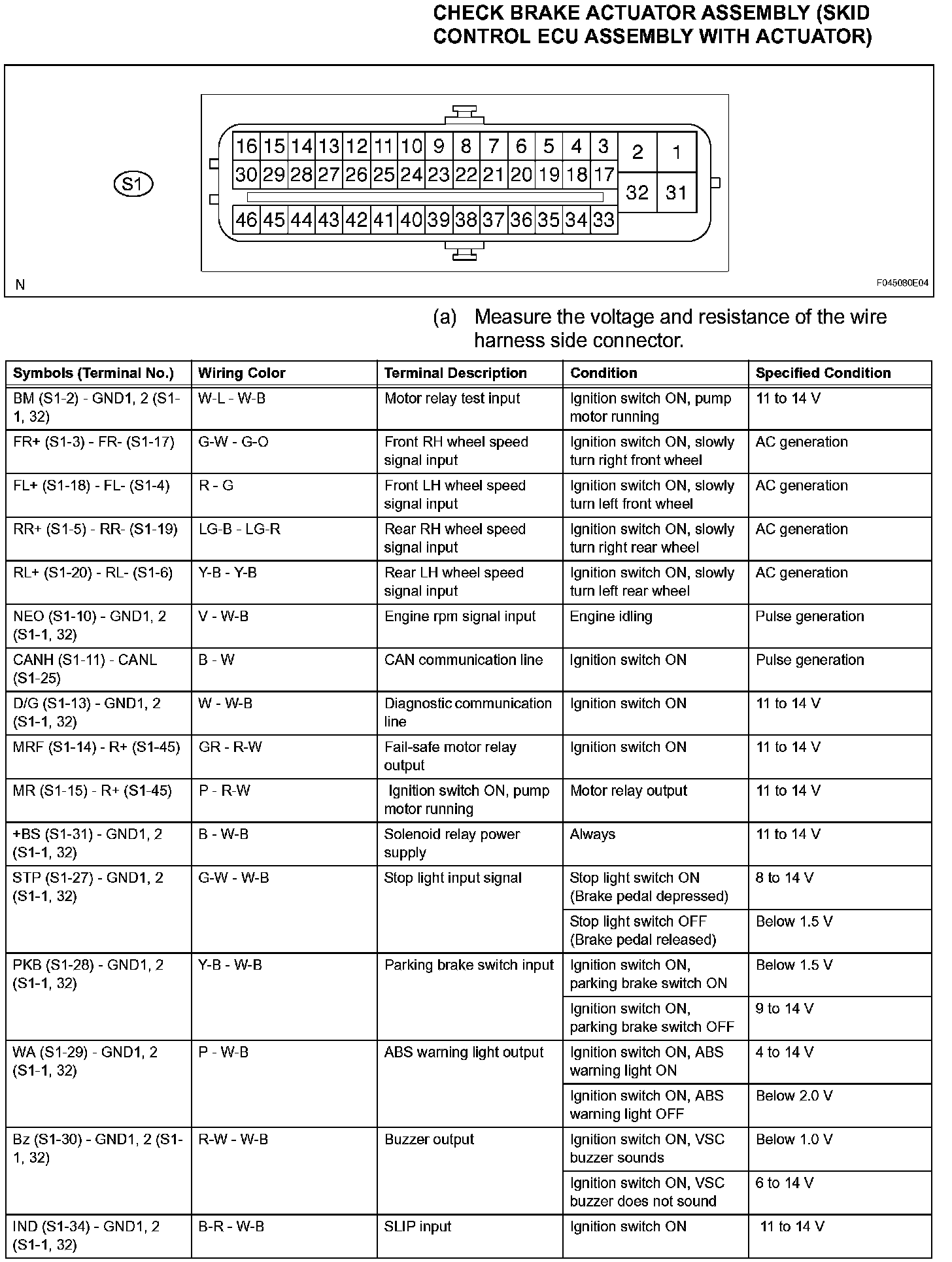

Terminals Of Control Module/Pinouts - Check Brake Actuator Assembly (Skid Control ECU Assembly With Actuator)(Part 1):

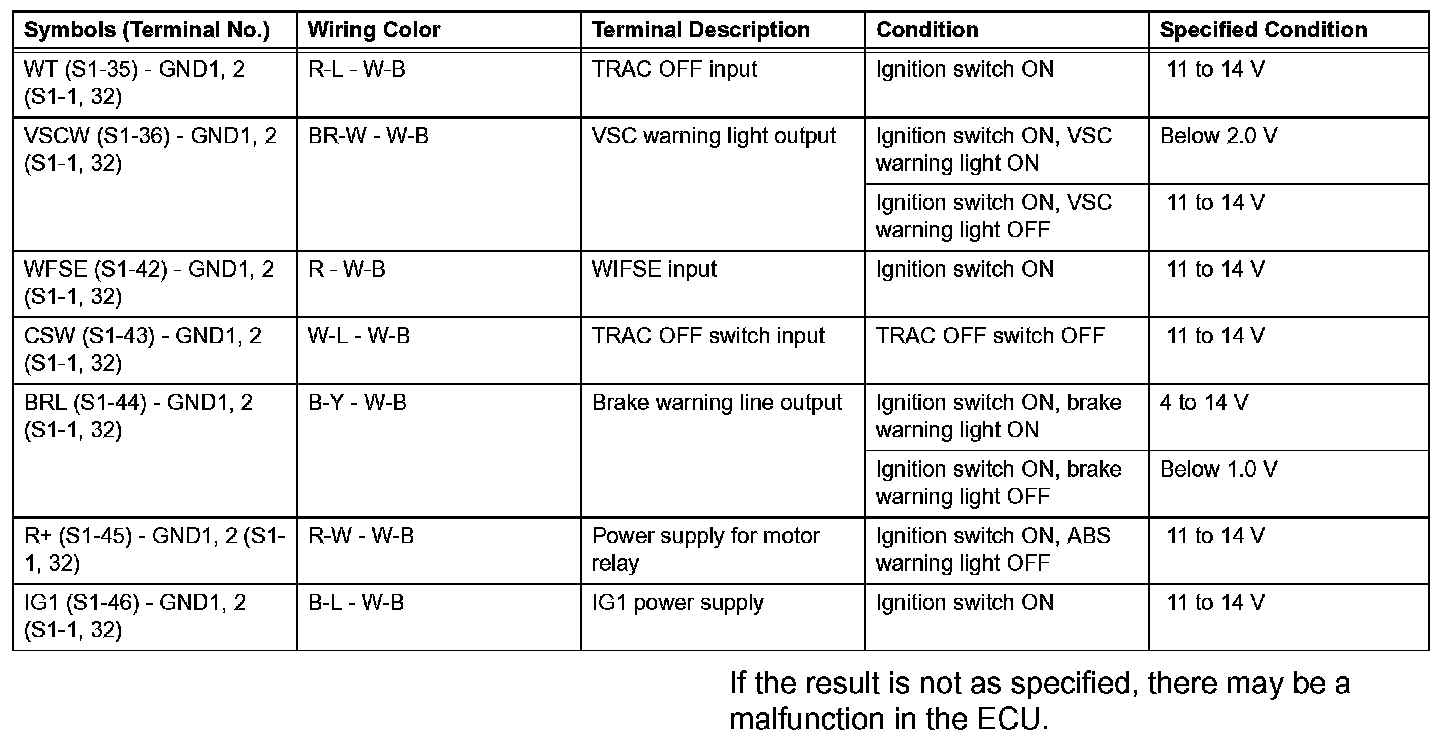

Terminals Of Control Module/Pinouts - Check Brake Actuator Assembly (Skid Control ECU Assembly With Actuator)(Part 2):
