xA L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

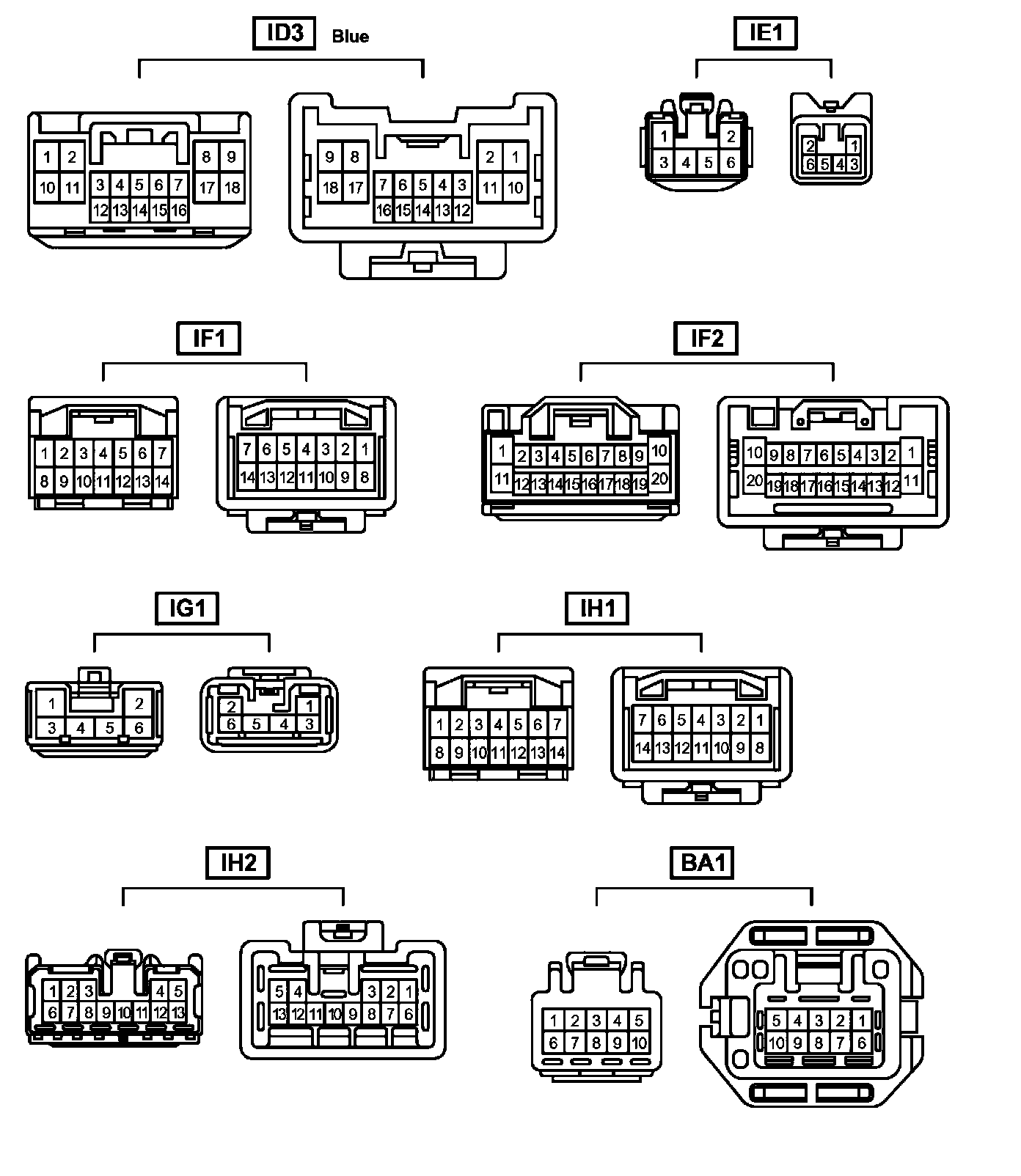

ID3 - BA1
ID3 - BA1
ID3 - BA1:
