Electronic Brake Control Module: Locations

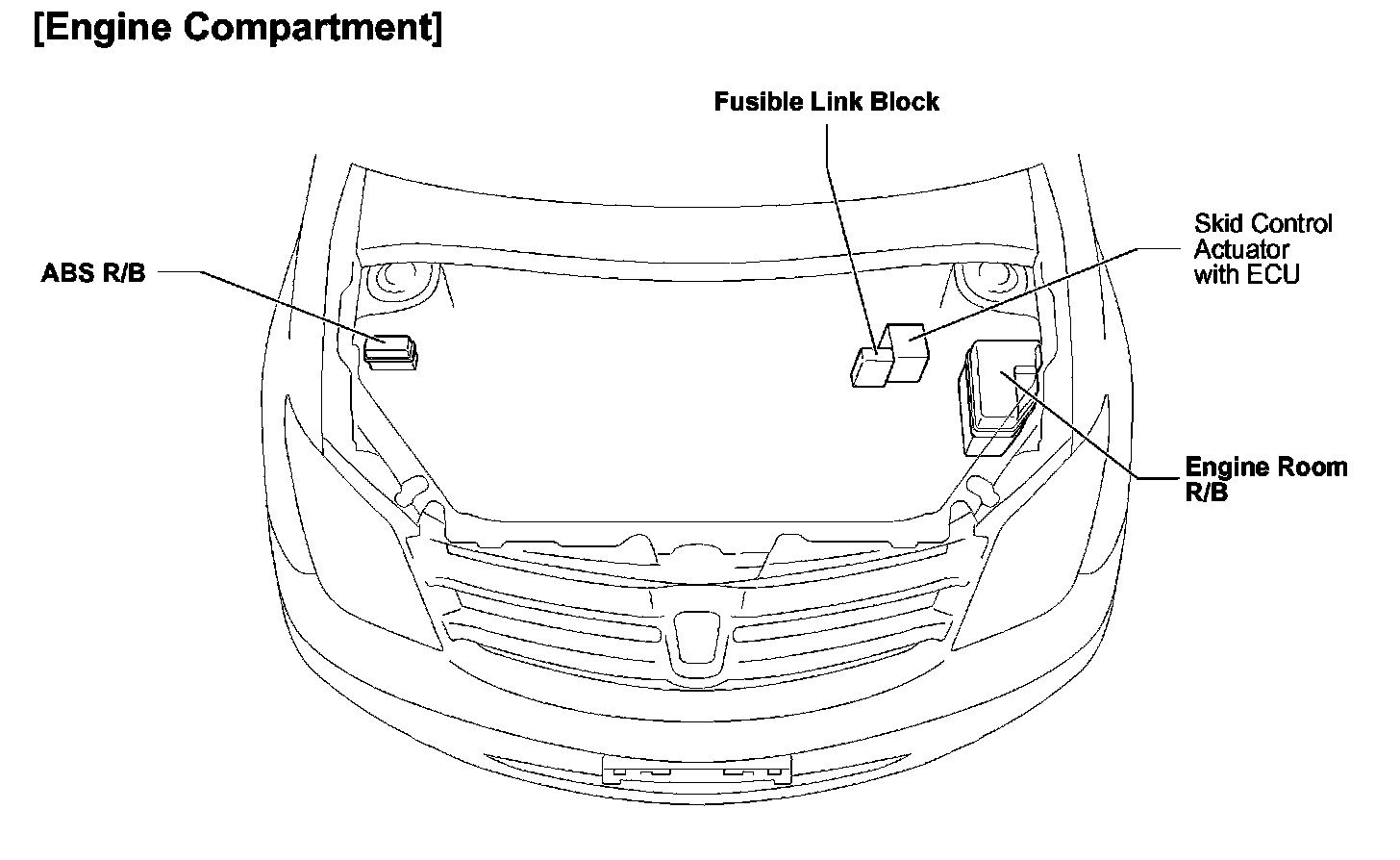

Engine Compartment:

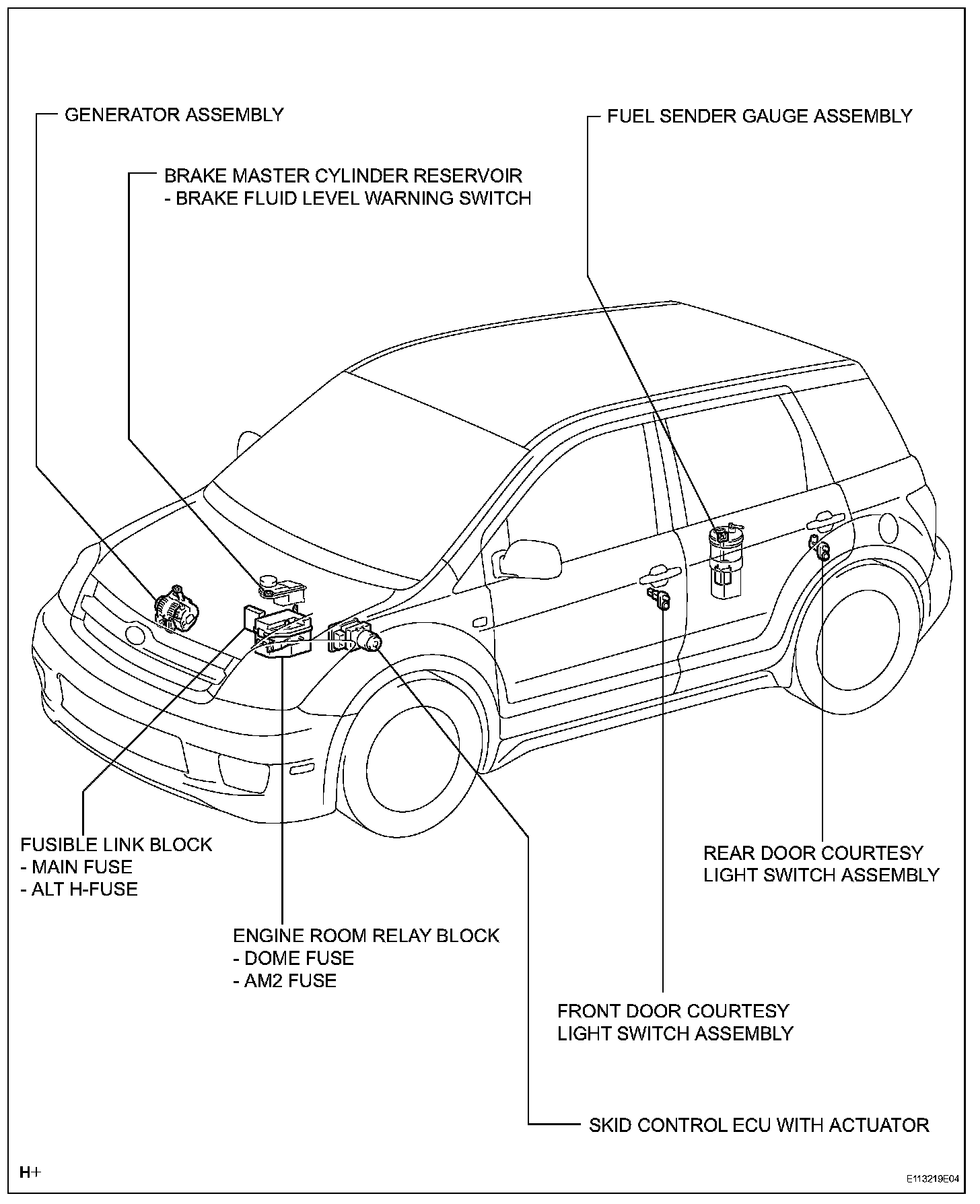

CAN Communication System:



Meter/Gauge System:

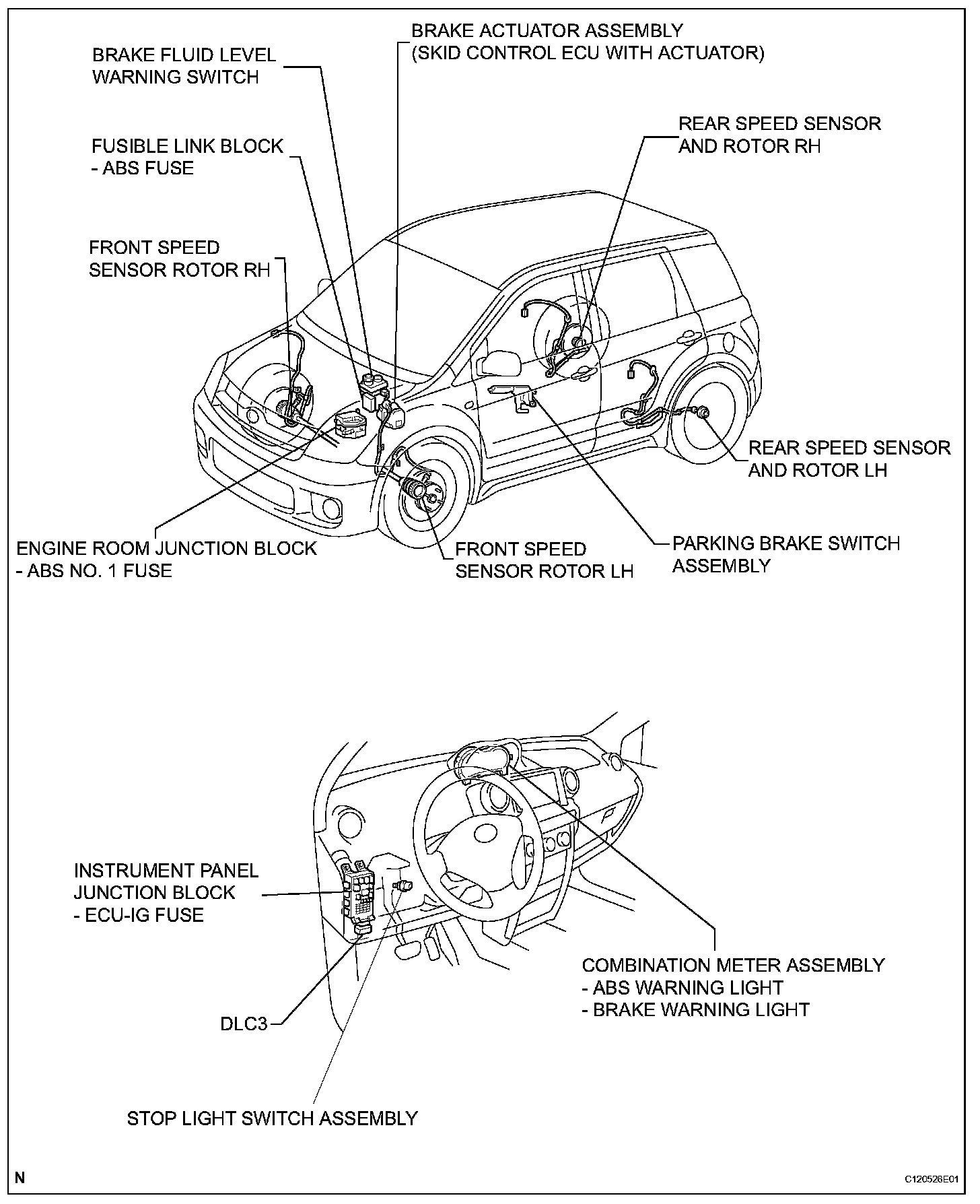

Anti-Lock Brake System:

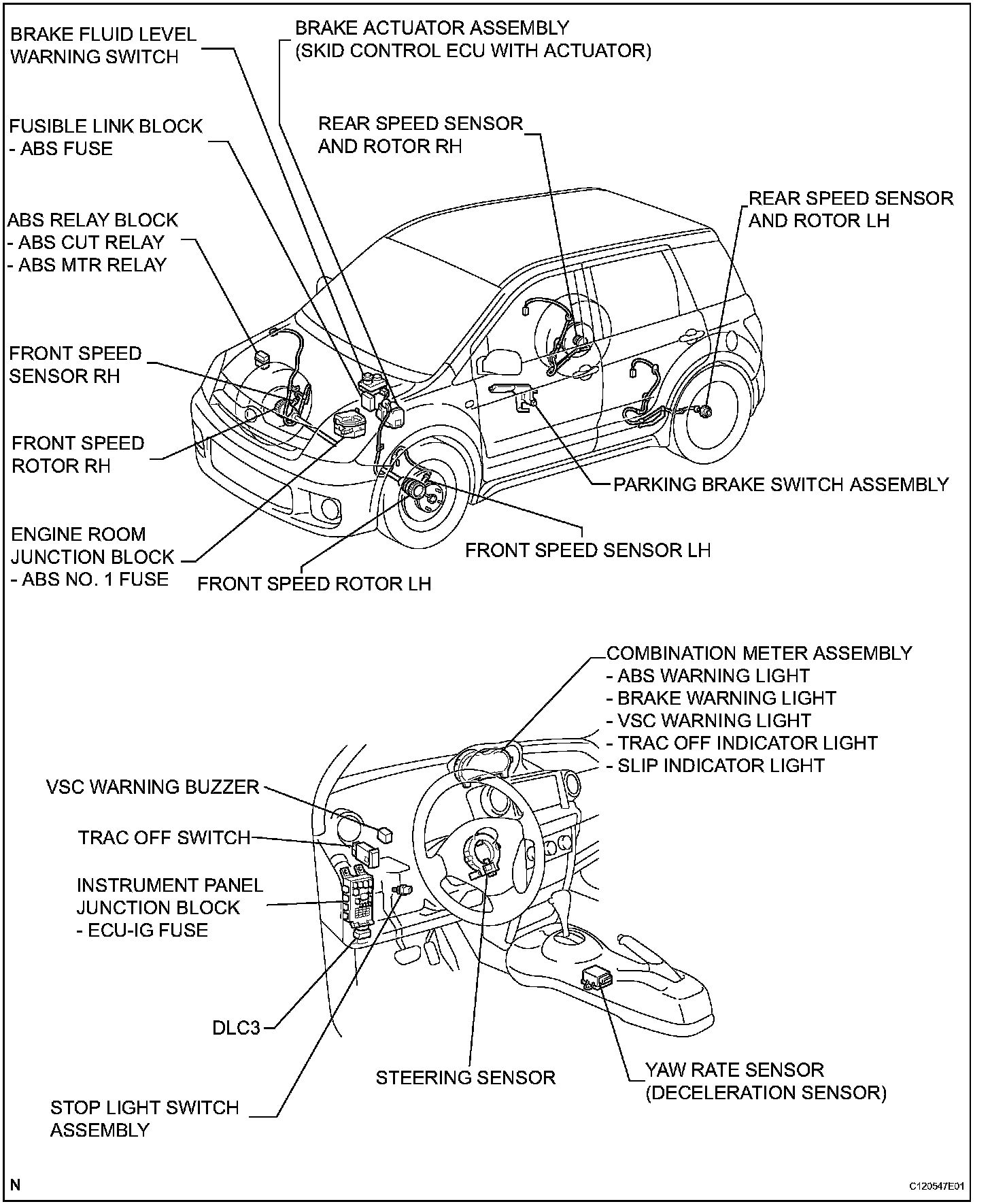

Vehicle Stability Control System:
