VSC Warning Light Circuit (Remains ON)

VSC Warning Light Remains ON

DESCRIPTION

DTC Detection Condition:

If the ECU stores a DTC, the VSC illuminates.

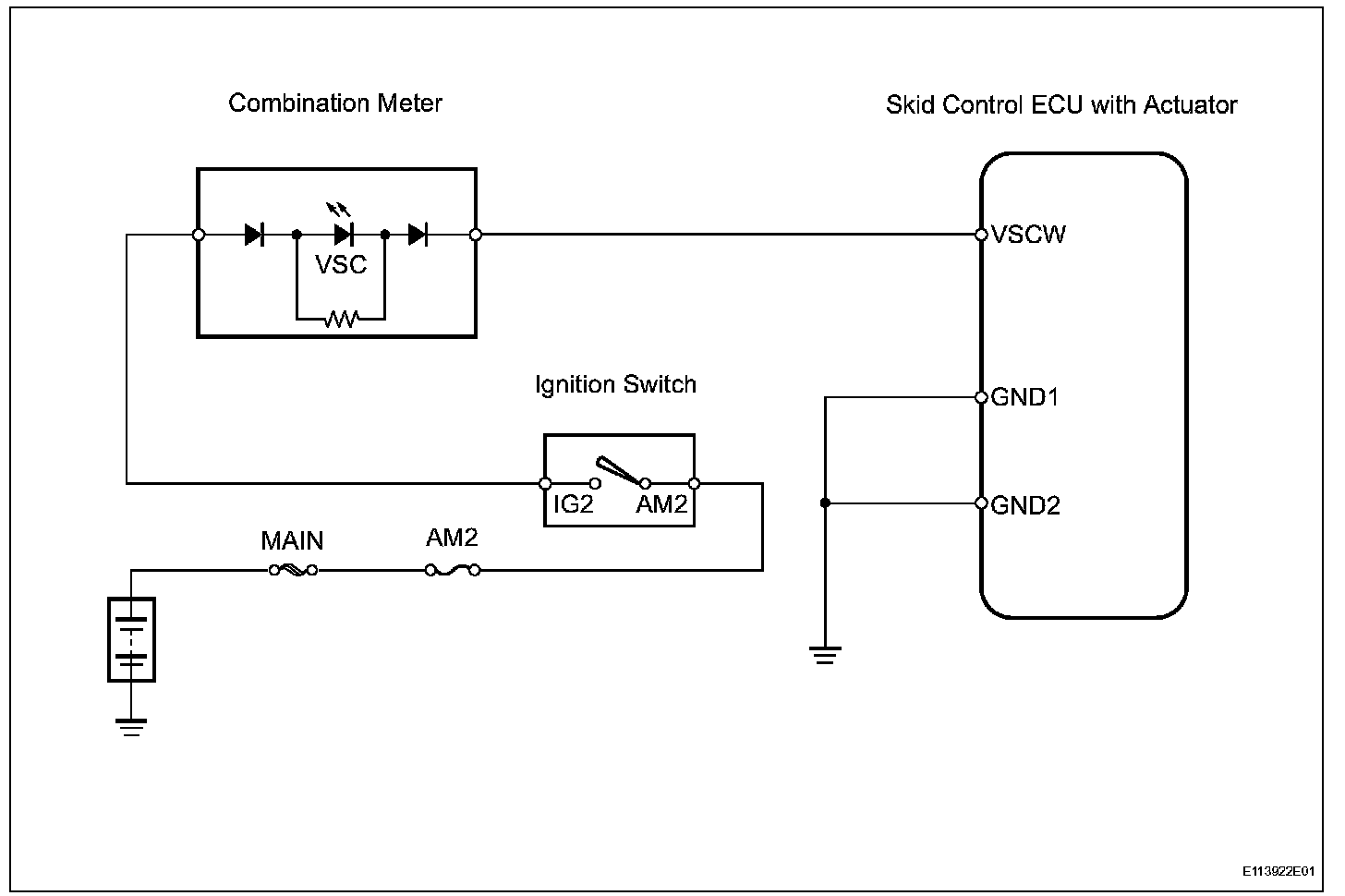

Wiring Diagram:

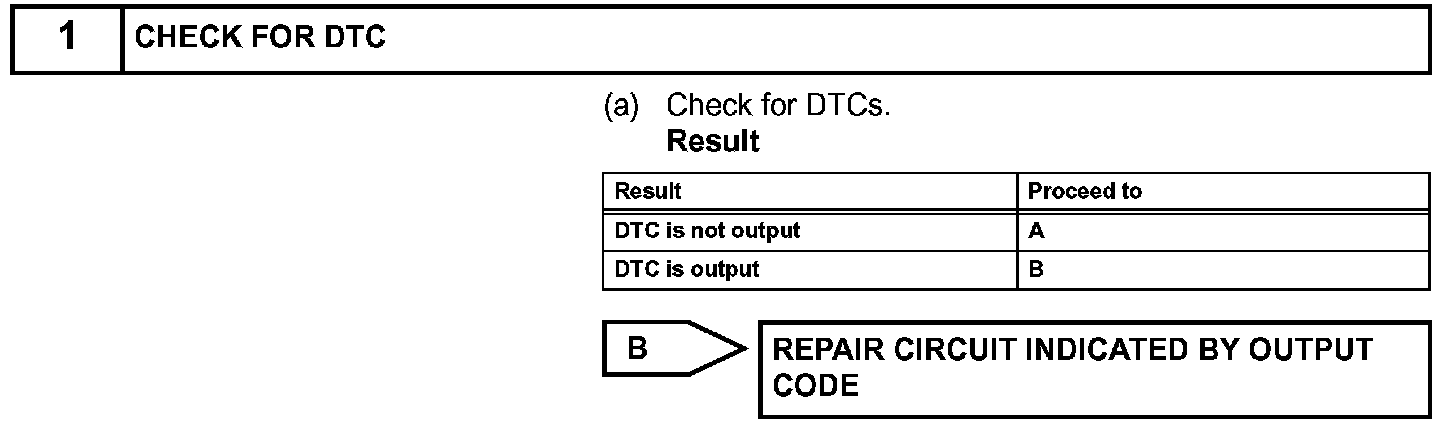

Step 1:

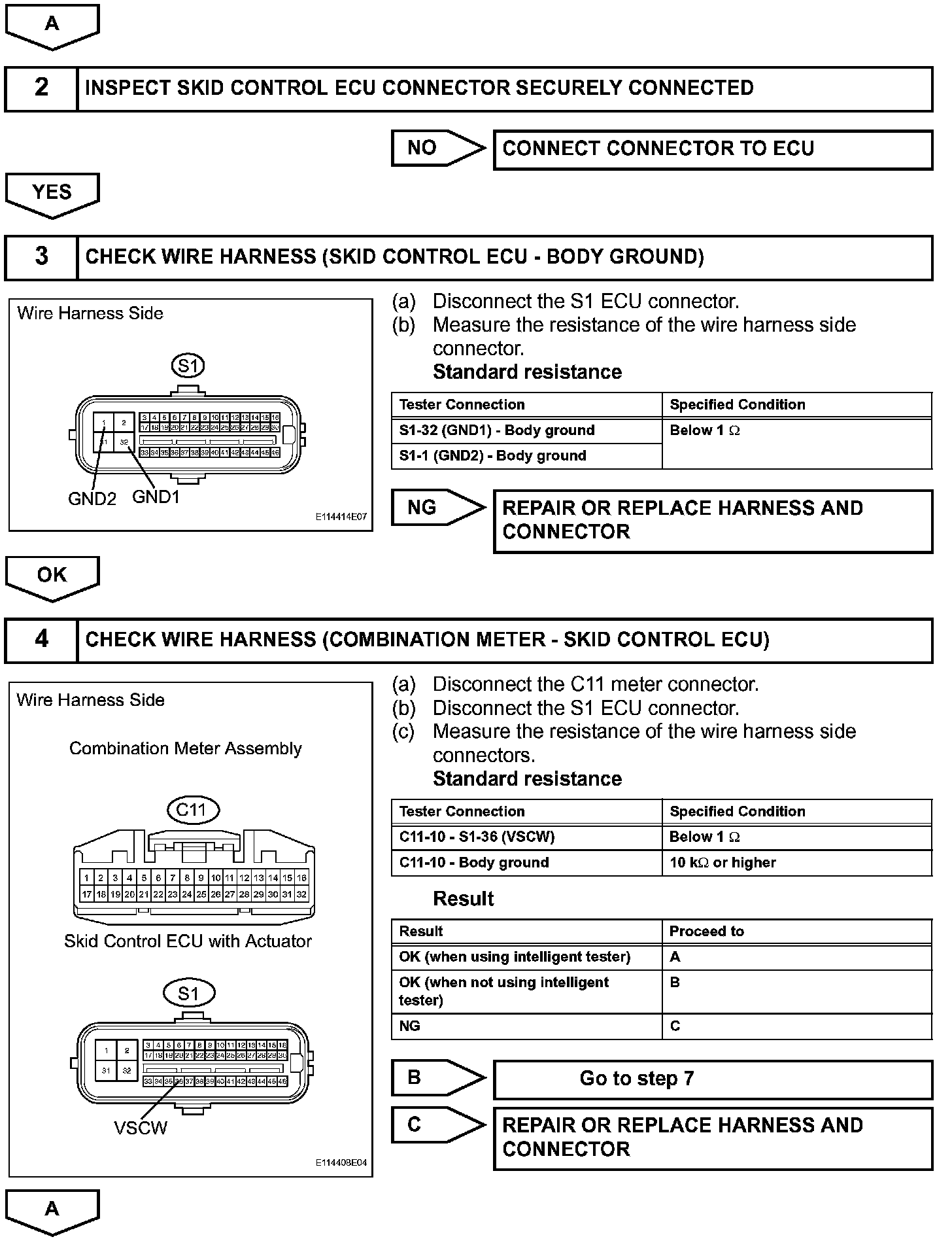

Step 1(Continued)-4:

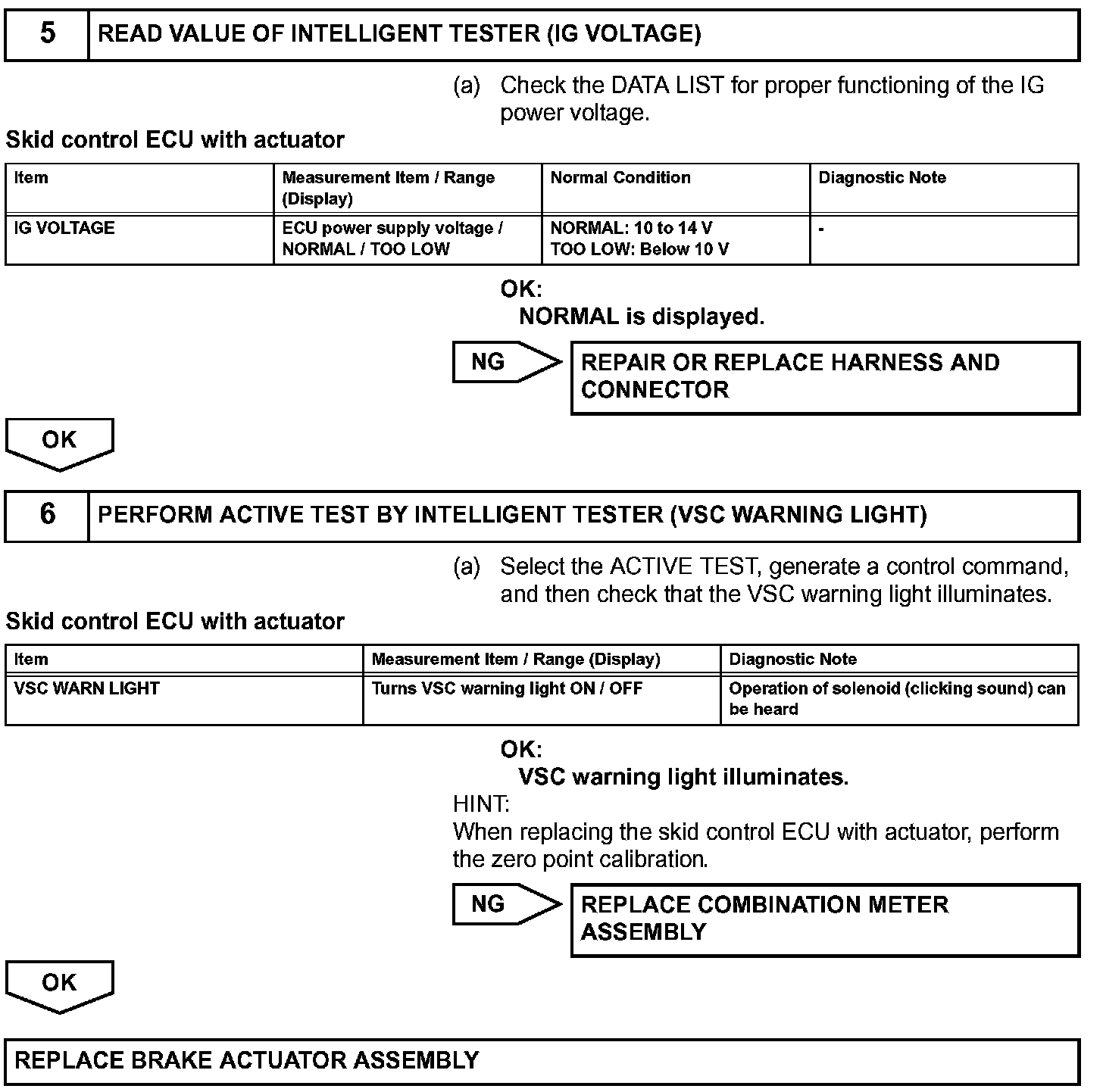

Step 5-6:

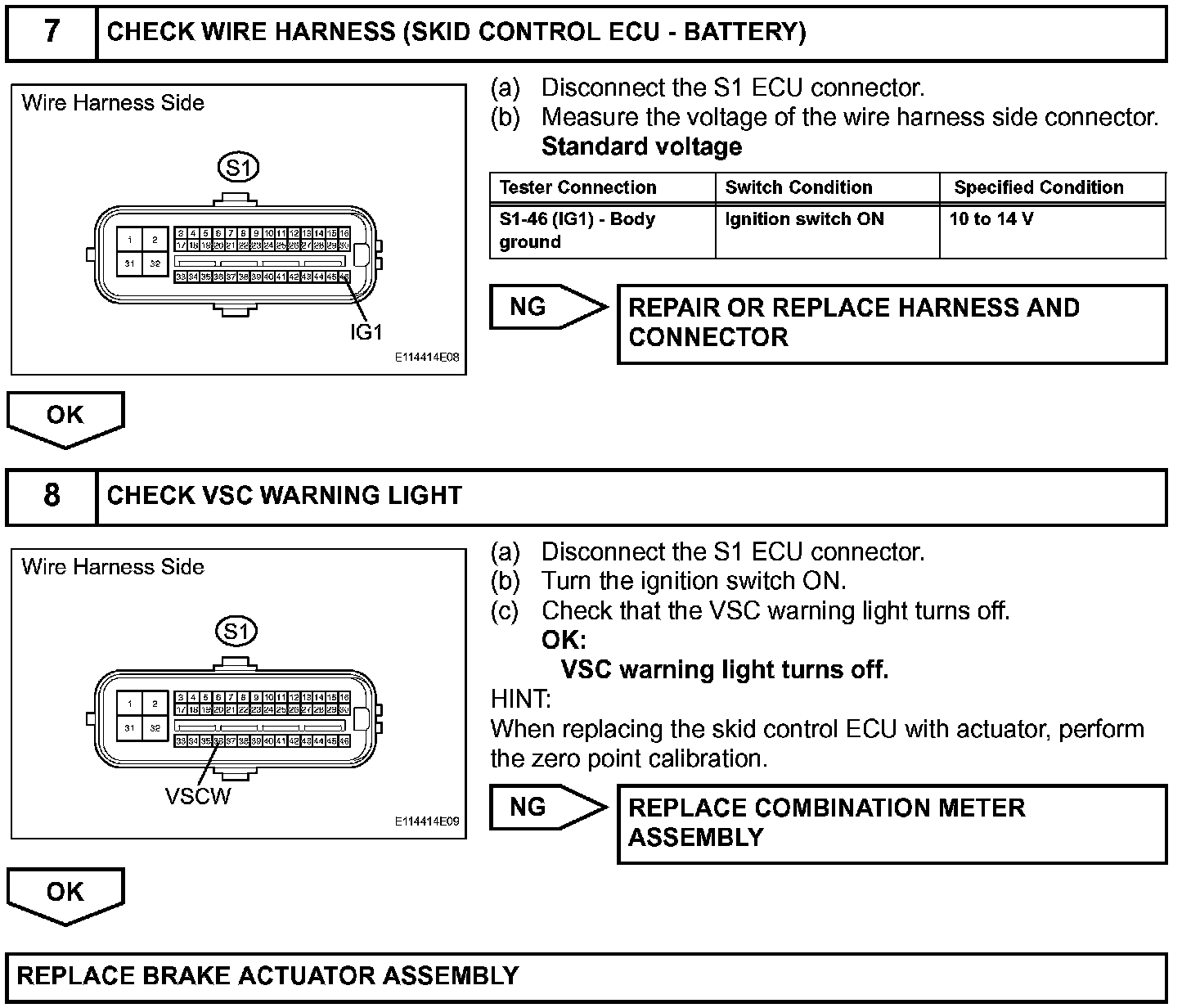

Step 7-8:

INSPECTION PROCEDURE
