ABS Warning Light Circuit (Remains ON)

ABS Warning Light Remains ON

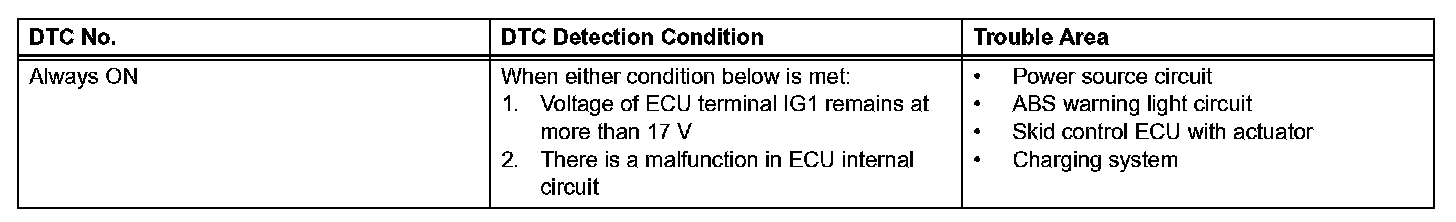

DTC Detection Condition:




DESCRIPTION

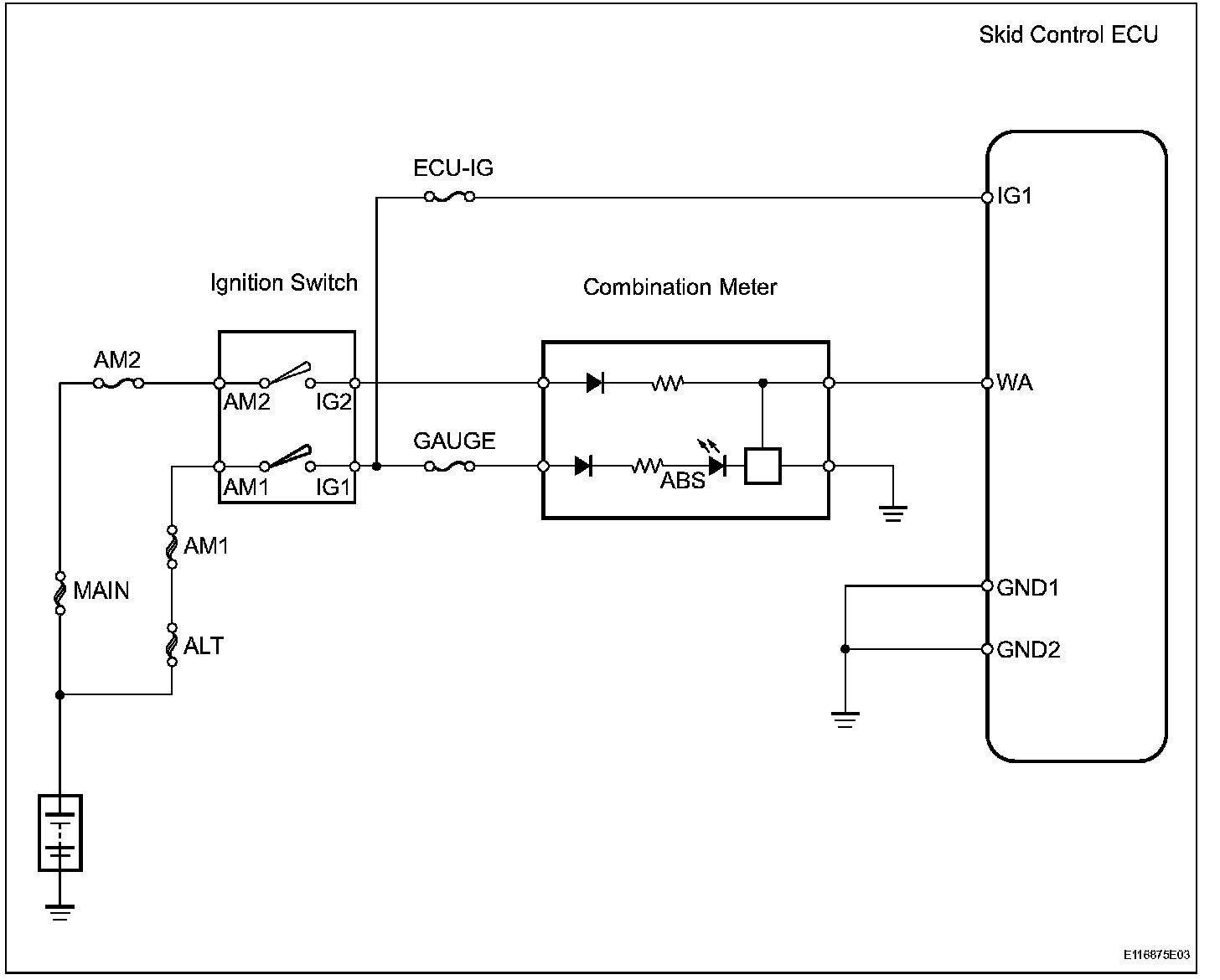

Wiring Diagram:

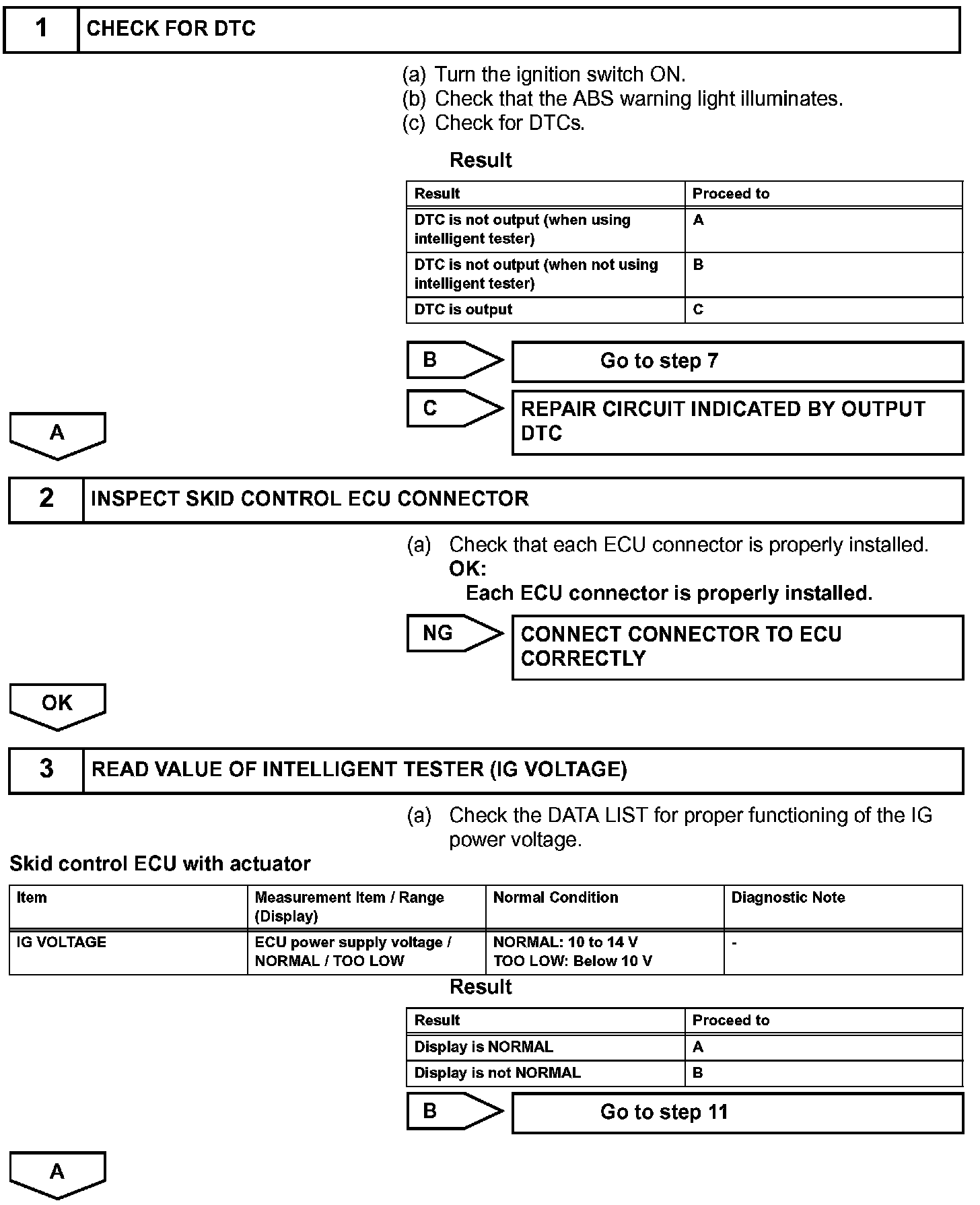

Step 1-3:

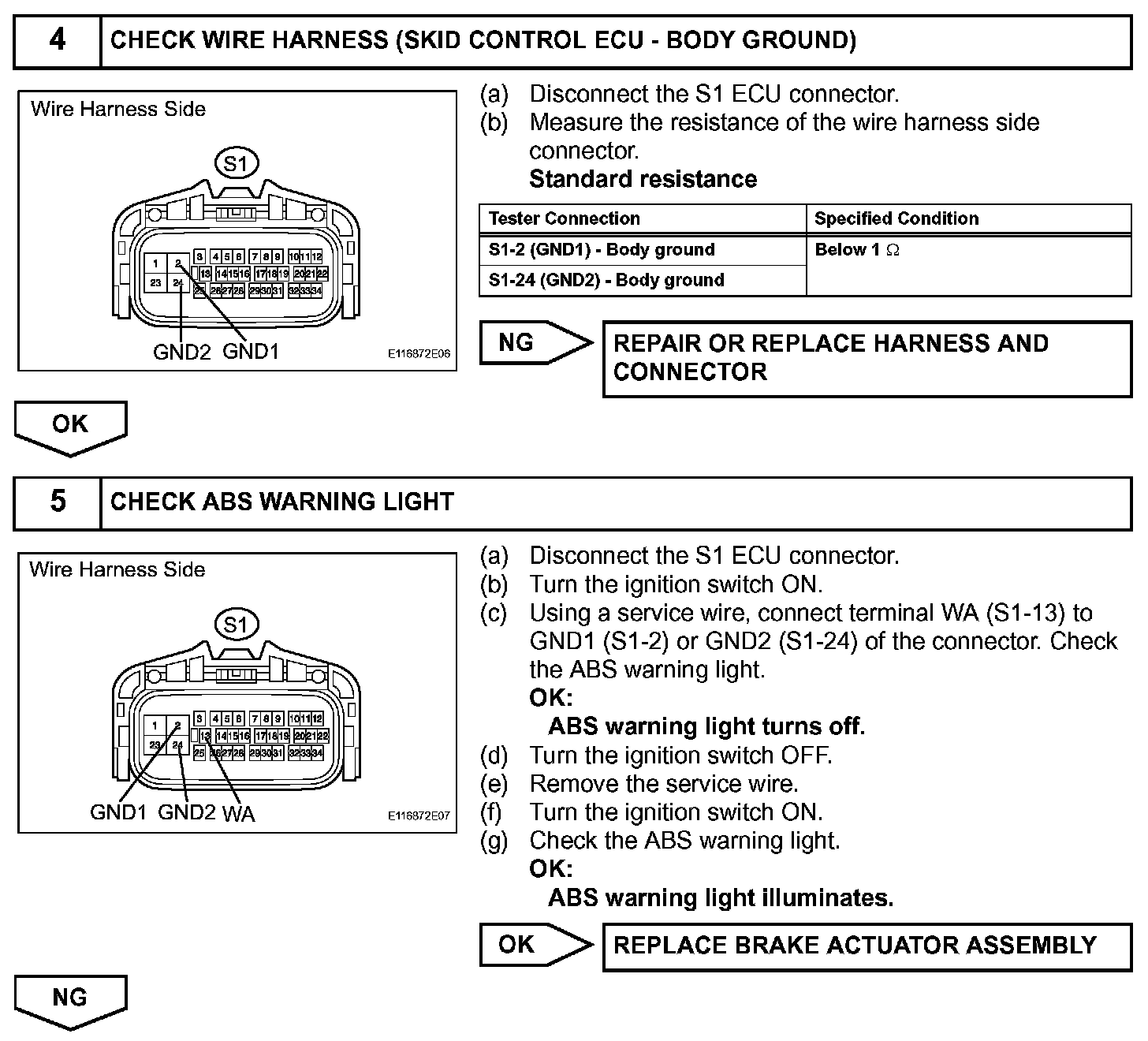

Step 4-5:

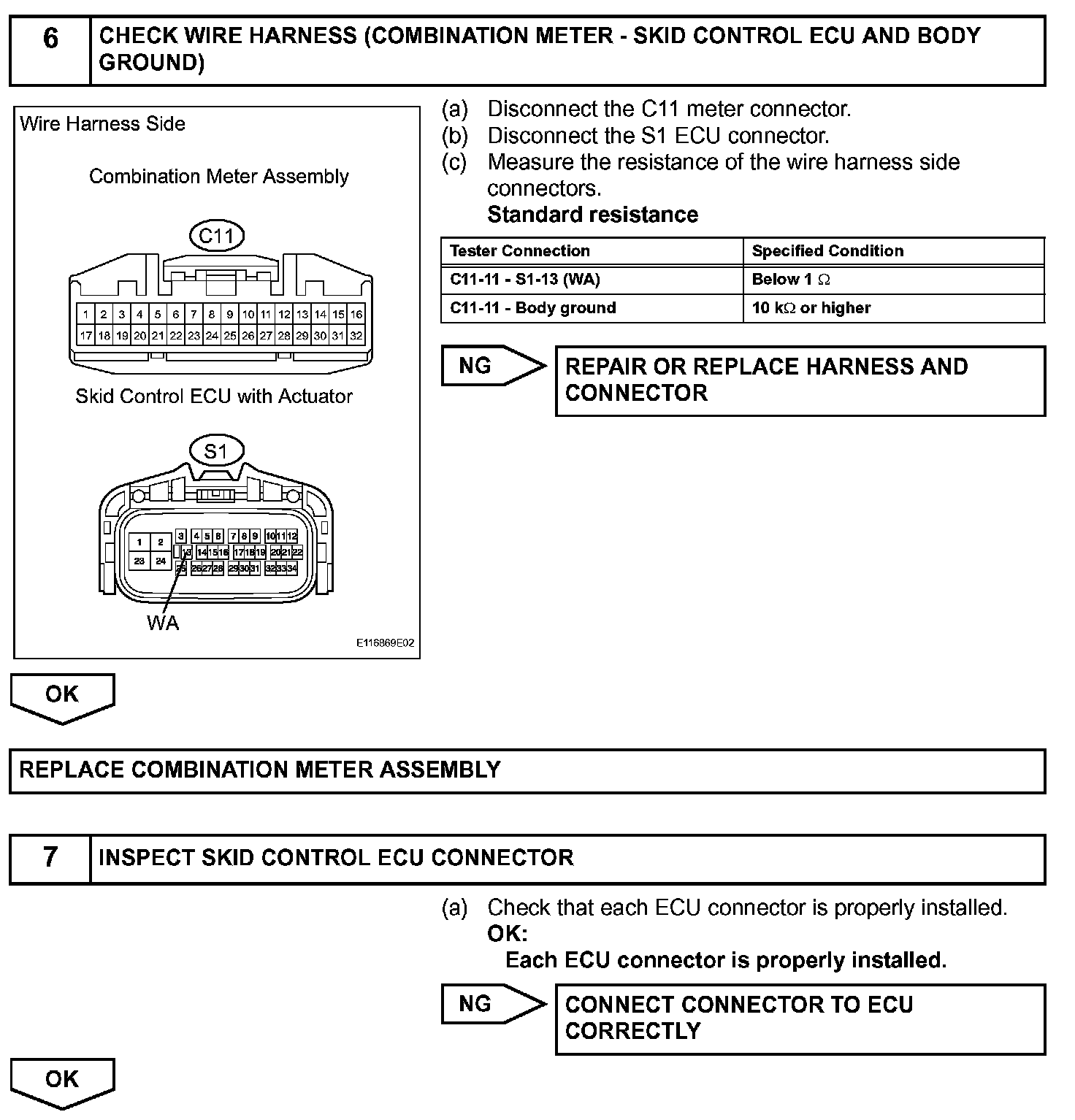

Step 6-7:

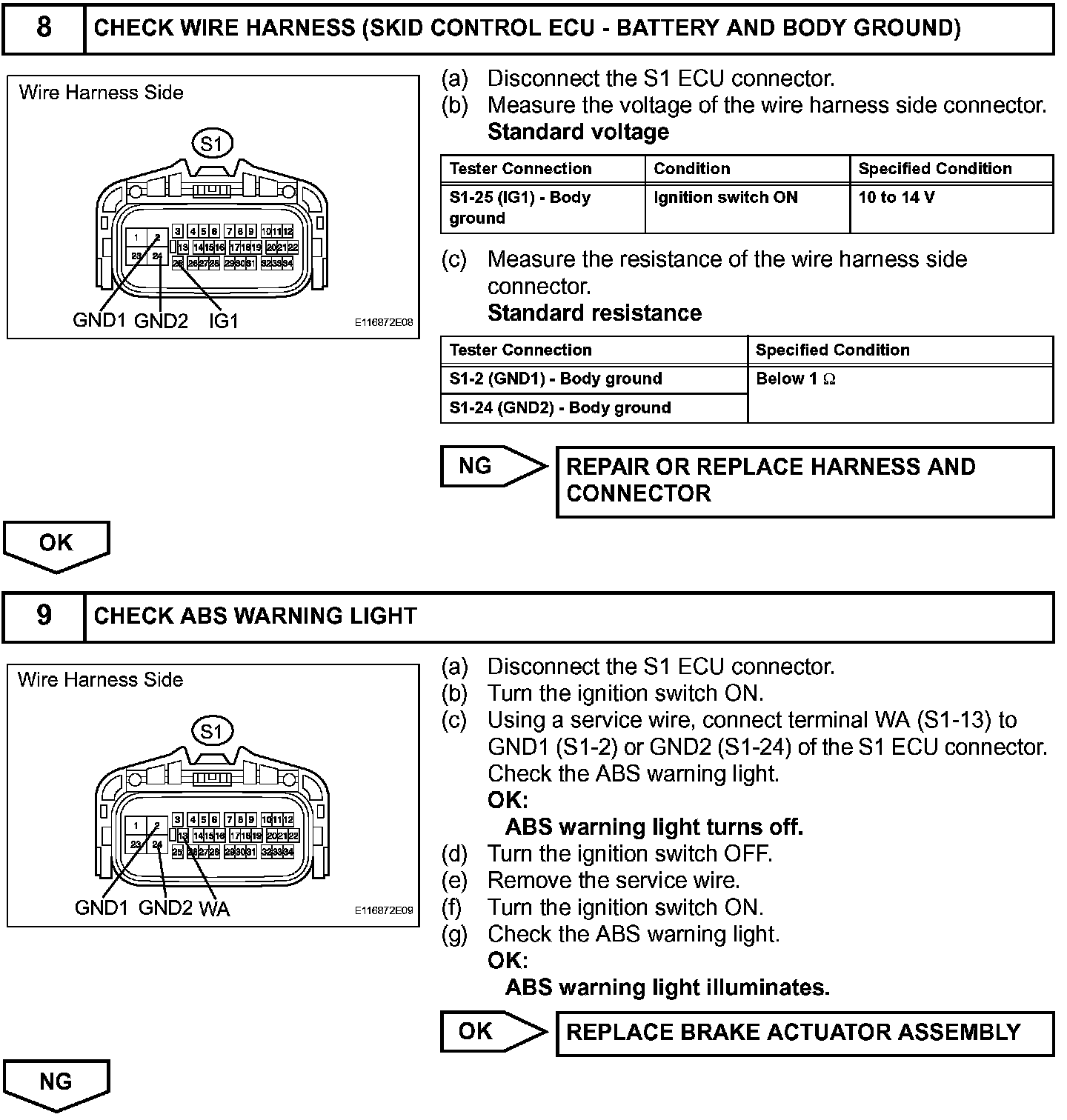

Step 8-9:

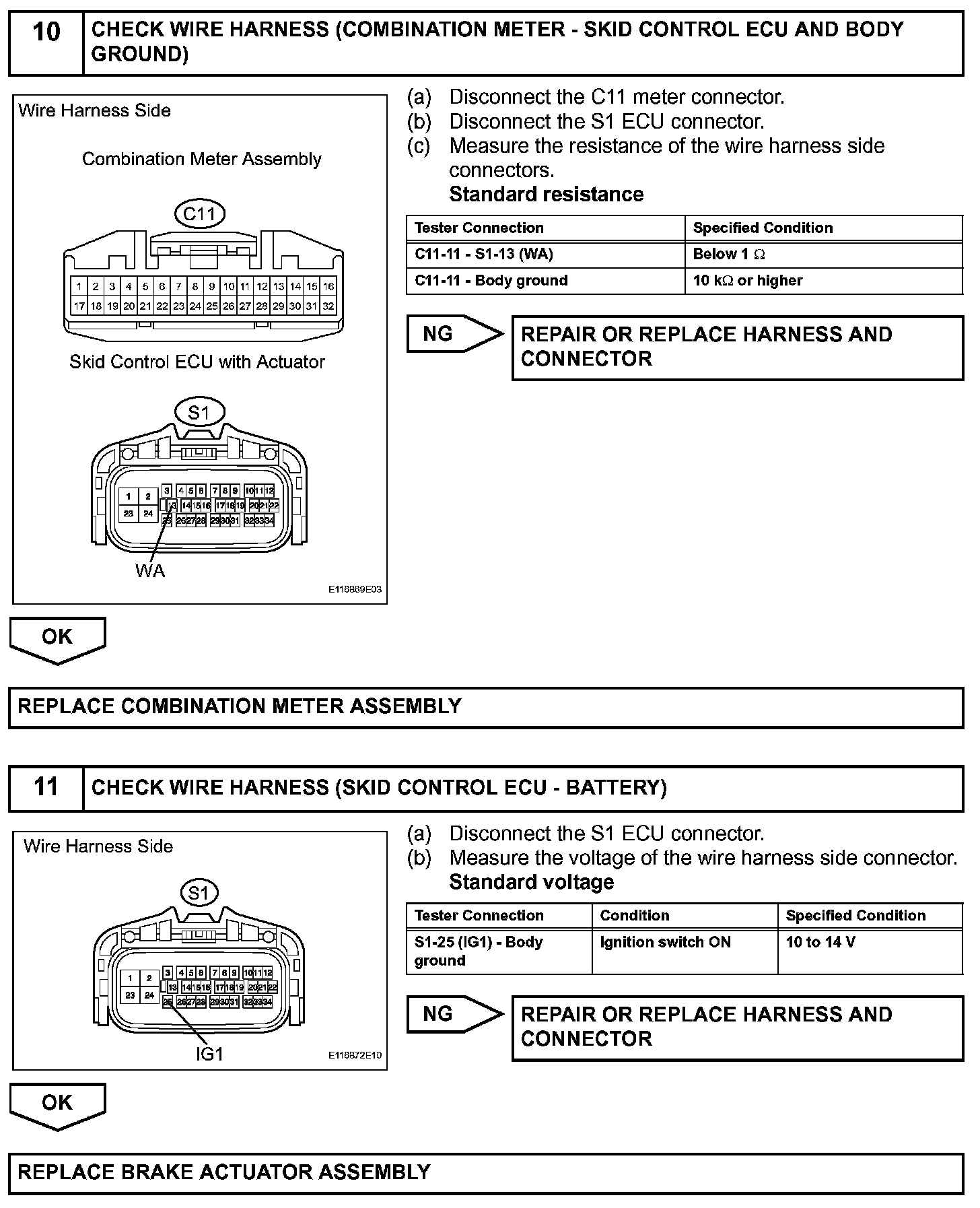

Step 10-11:




INSPECTION PROCEDURE
