Problem Symptoms Table

PROBLEM SYMPTOMS TABLE

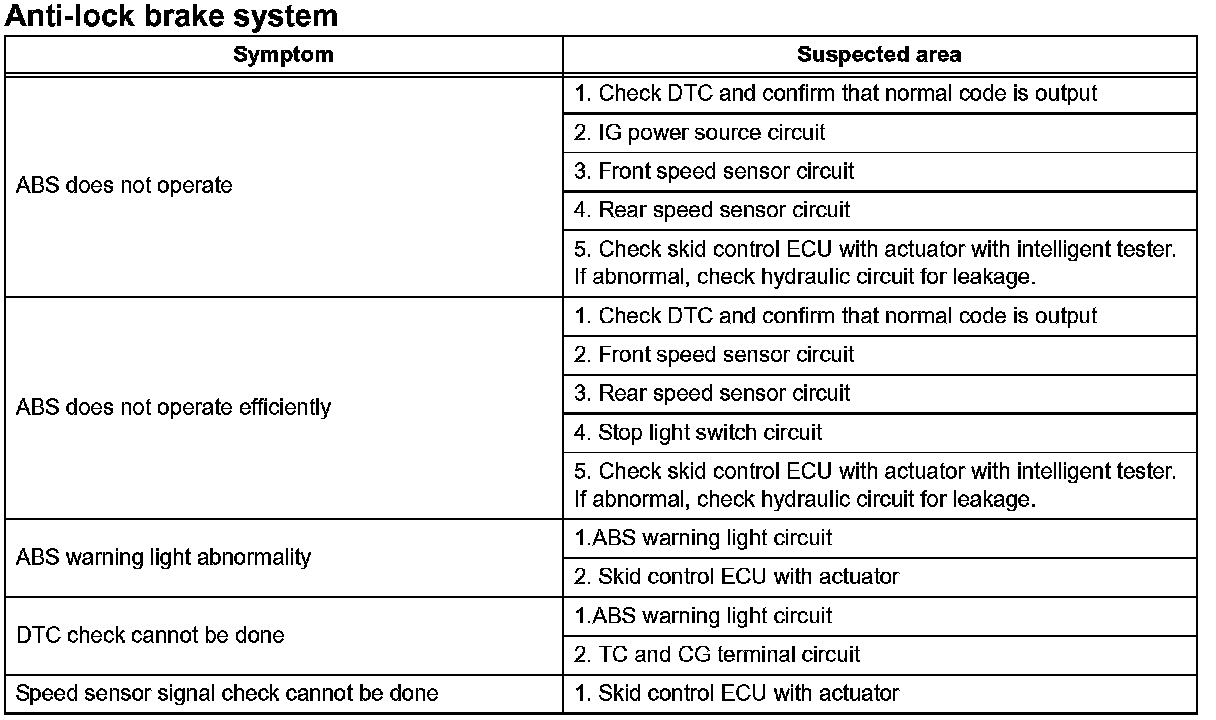

Problem Symptoms Table - Anti-Lock Brake System:

If a normal system code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the given table and proceed to the relevant troubleshooting page.

NOTE: When replacing the skid control ECU with actuator or sensor, turn the ignition switch OFF.
