Diagnosis System

DIAGNOSIS SYSTEM




1. CHECK INDICATOR

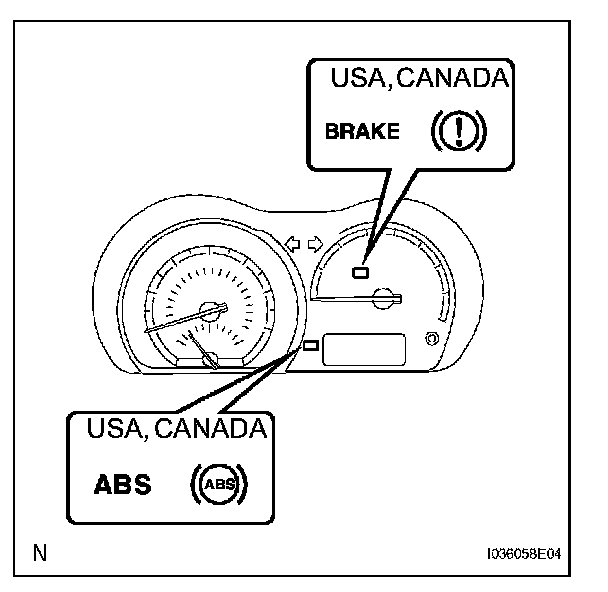

a. Check the warning lights.
1. Release the parking brake lever.
2. When the ignition switch is ON, check that the ABS warning light and brake warning light illuminate for approximately 3 seconds.

HINT:
- When the parking brake is applied or brake fluid level is low, the brake warning light illuminates.
- If the indicator check result is not normal, proceed to troubleshooting for the ABS warning light and brake warning light circuit.

If the indicator remains on, proceed to troubleshooting for the light circuit below.

Trouble Area
ABS warning light circuit
Brake warning light circuit
