Skid Control Buzzer Circuit

Skid Control Buzzer Circuit

DESCRIPTION

The skid control buzzer sounds during VSC operation.

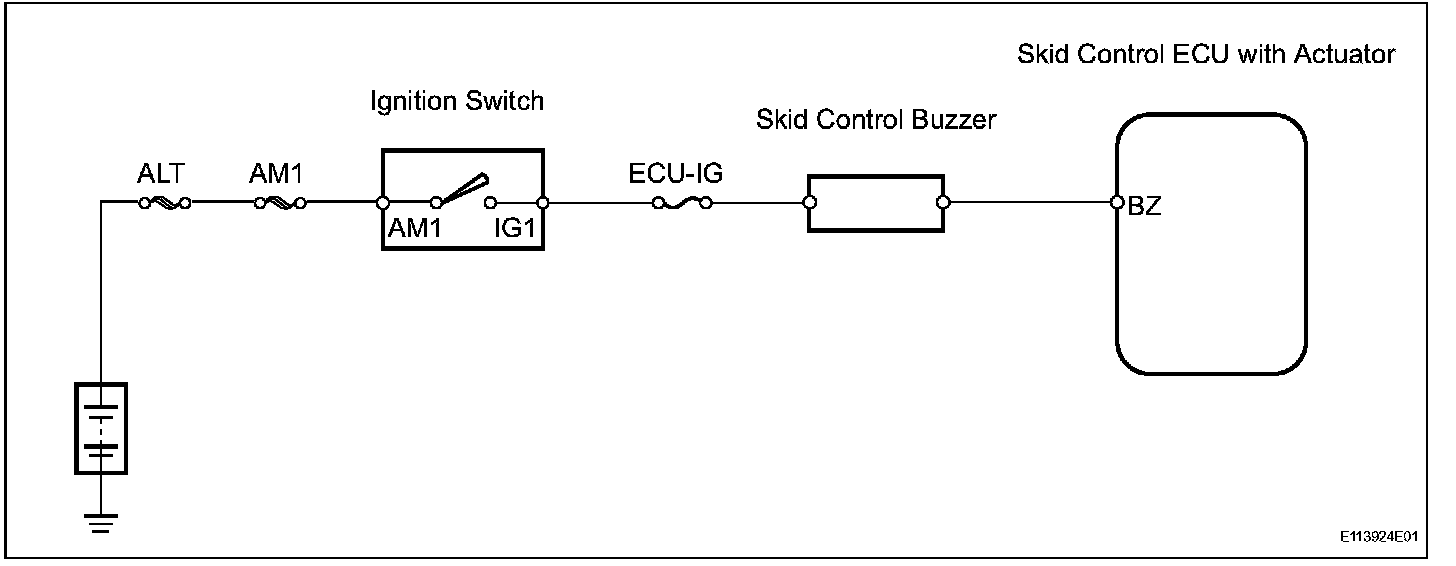

Wiring Diagram:

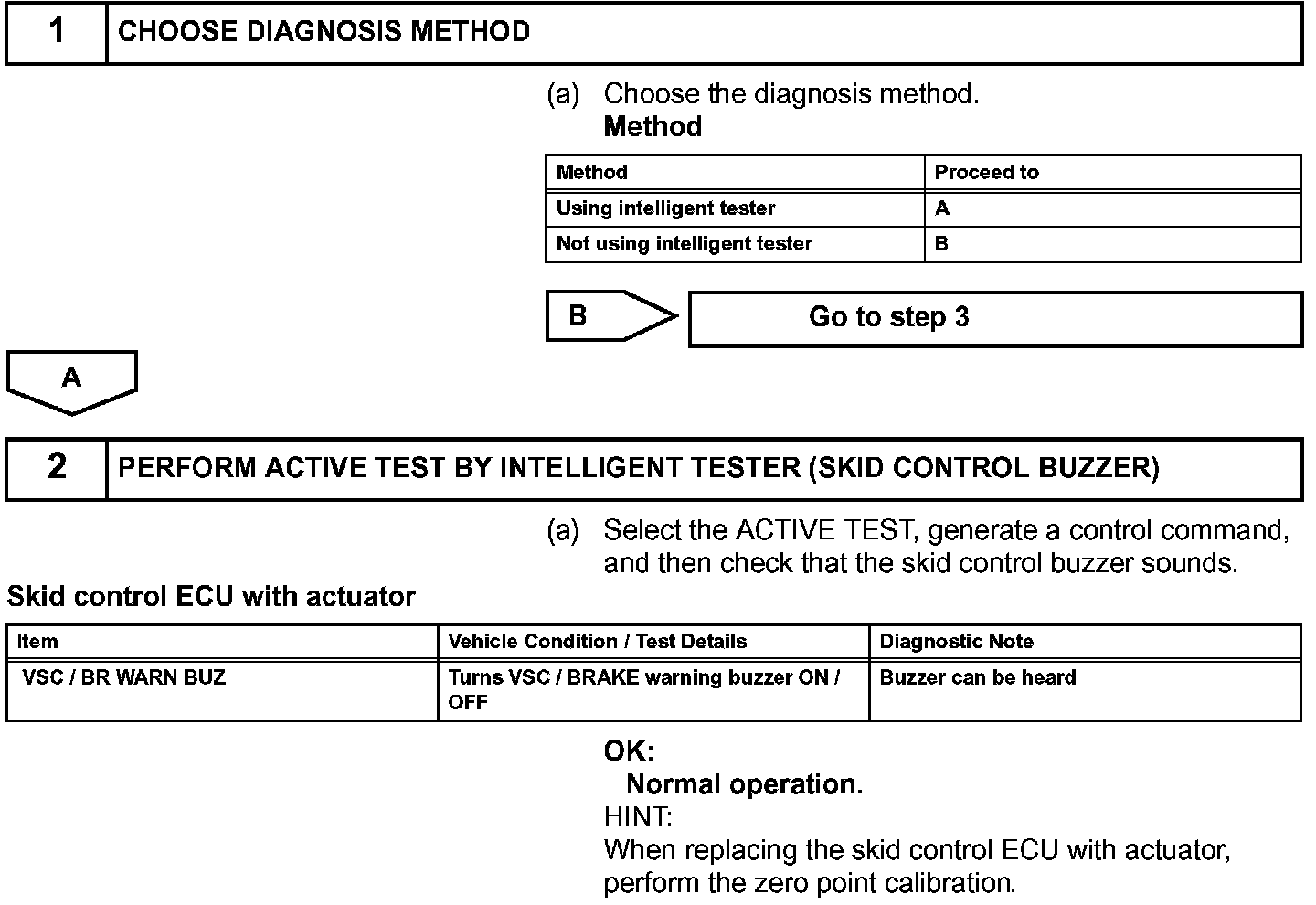

Step 1-2:




Step 2(Continued)-4:

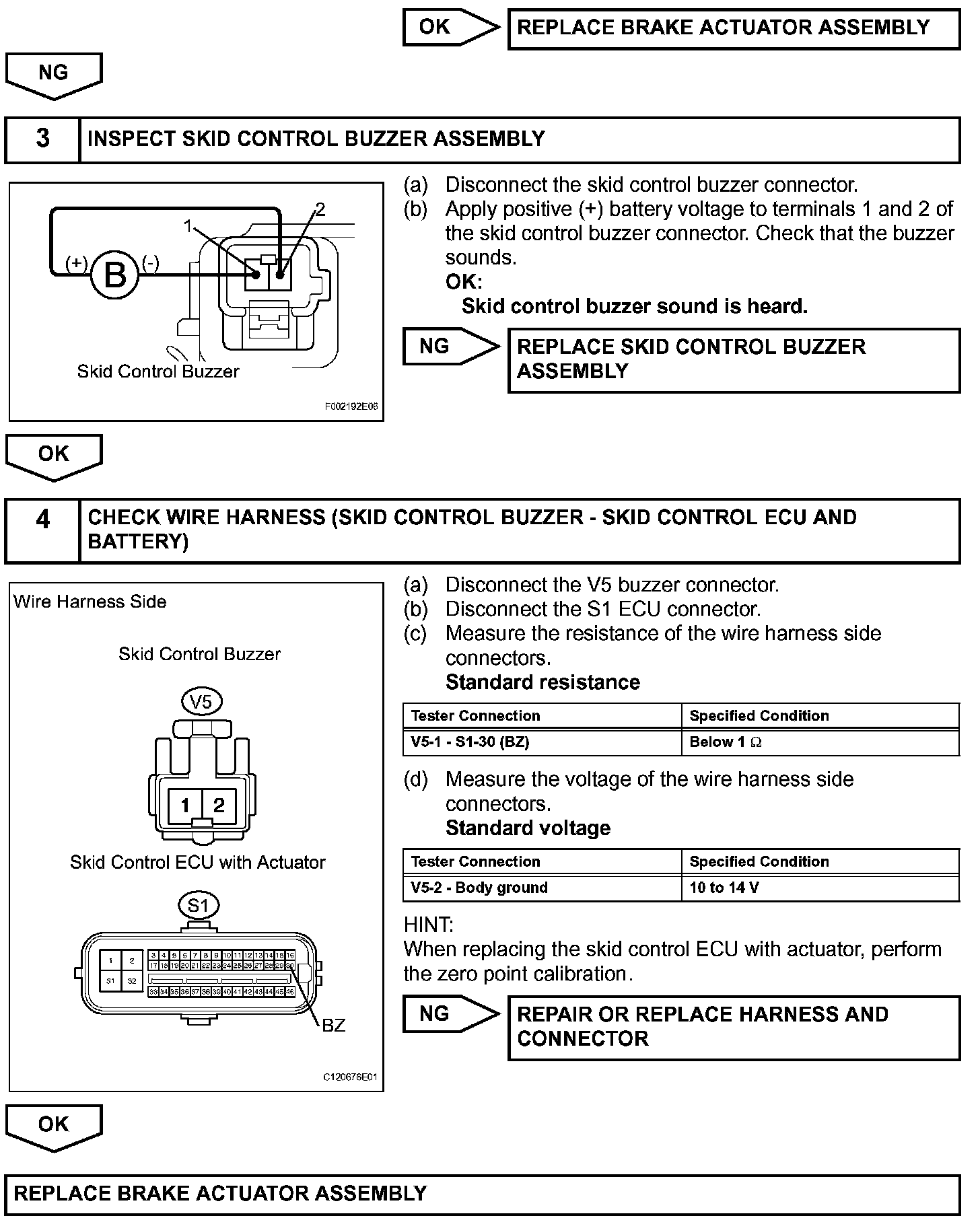

INSPECTION PROCEDURE
