Curtain Shield Airbag
CURTAIN SHIELD AIRBAG ASSEMBLYON-VEHICLE INSPECTION
1. CHECK CURTAIN SHIELD AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)
a. Perform a diagnostic system check.

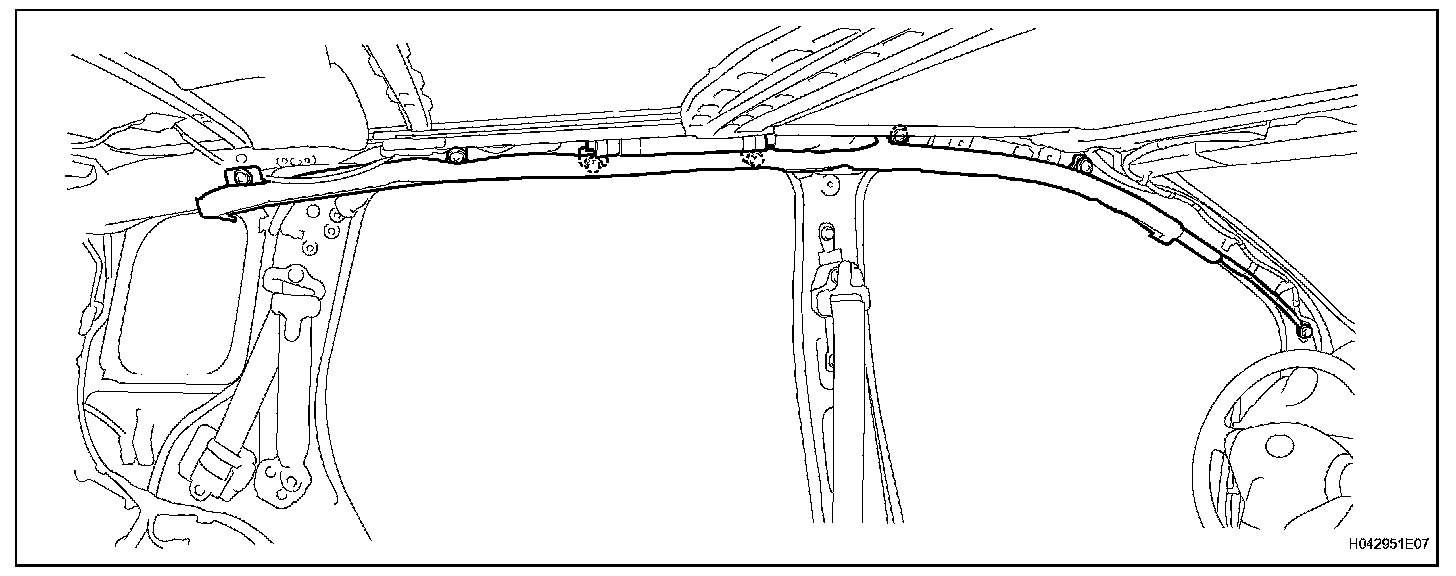

b. With the curtain shield airbag installed on the vehicle, perform a visual check.
If there are any defects as mentioned , replace the front pillar garnish or roof headlining with a new one:
Cuts, minute cracks or marked discoloration on the front pillar garnish or roof headlining around the curtain shield airbag.
CAUTION: For removal and installation procedures of the curtain shield airbag assembly, be sure to follow the correct procedures.
2. CHECK CURTAIN SHIELD AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG NOT DEPLOYED)
a. Perform a diagnostic system check.

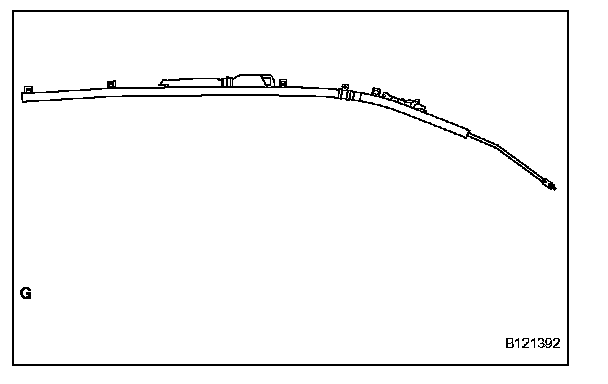

b. With the curtain shield airbag removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the curtain shield airbag with a new one:
- Cuts, minute cracks or marked discoloration on the curtain shield airbag.
- Cracks or other damage to the connectors.
CAUTION: For removal and installation procedures of the curtain shield airbag assembly, be sure to follow the correct procedures.
