Outer Mirror Switch

OUTER MIRROR SWITCH

INSPECTION




1. INSPECT OUTER MIRROR SWITCH ASSEMBLY

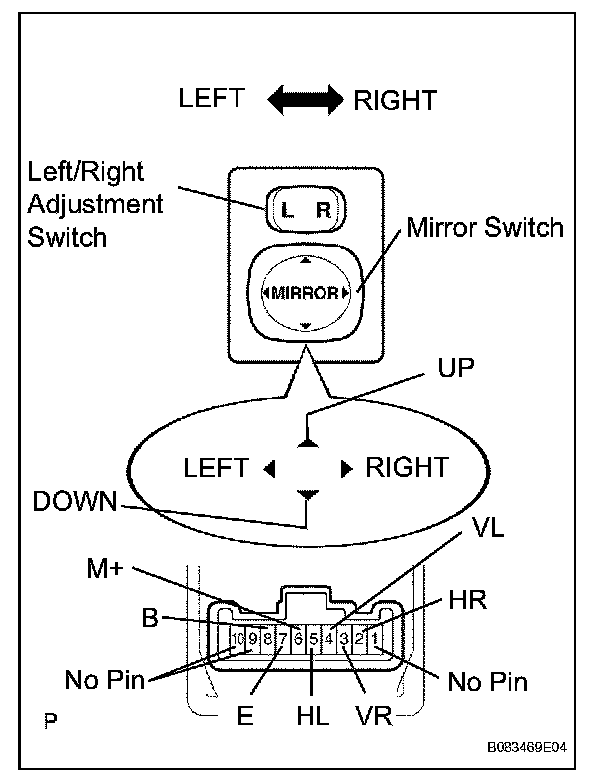

a. Select L on the left/right adjustment switch:

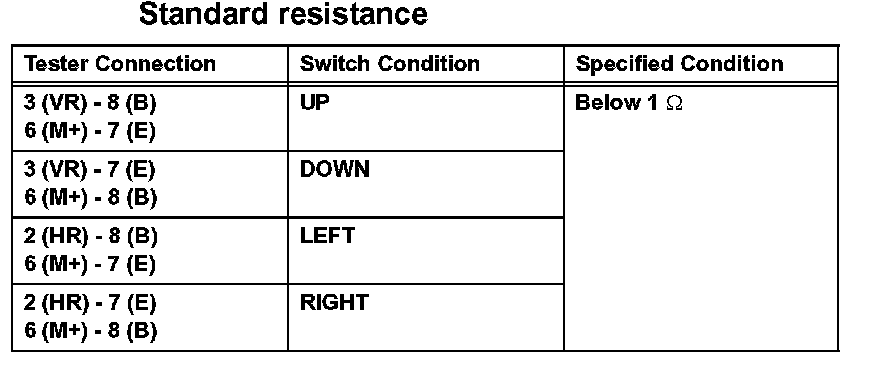

Measure the resistance of the switch.

If the result is not as specified, replace the switch assembly.




b. Select R on the left/right adjustment switch:

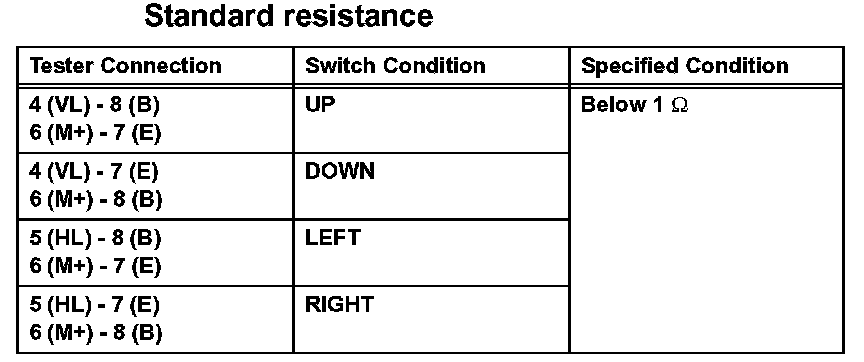

Measure the resistance of the switch.

If the result is not as specified, replace the switch assembly.
