Removal and Installation

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH




2. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH
a. Disconnect the connector.

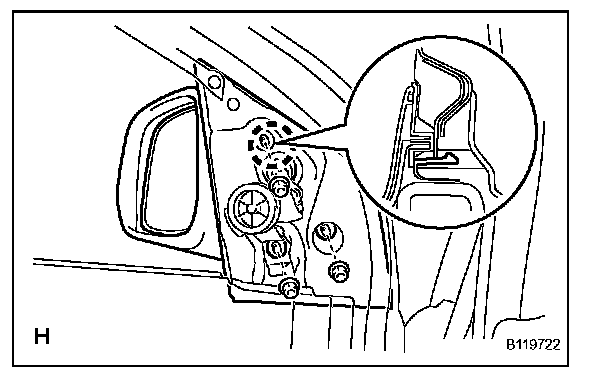

b. Remove the 3 nuts and mirror.

INSTALLATION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.




1. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH

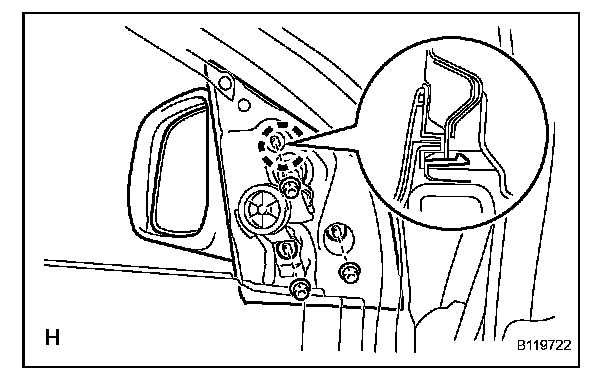

a. Install the mirror with the 3 nuts.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

b. Connect the connector.

2. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH
