Rear Door Lock

REAR DOOR LOCK

INSPECTION

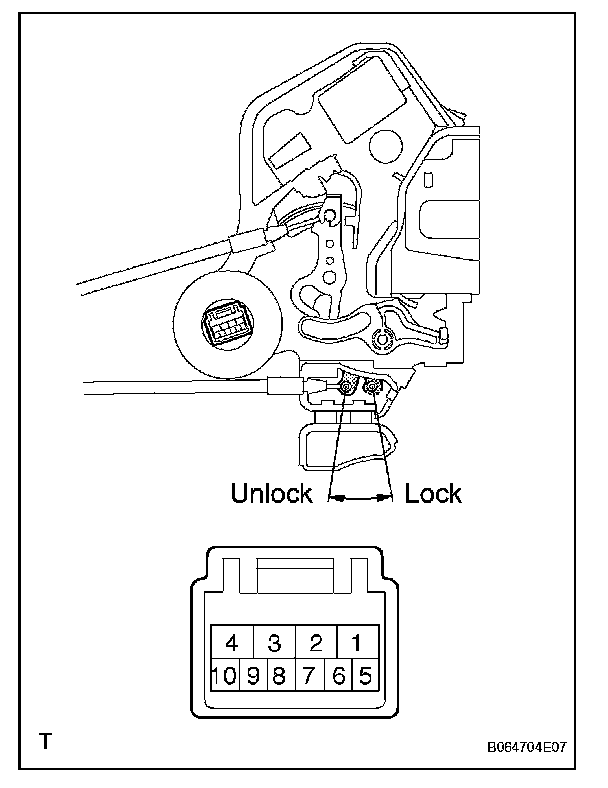

1. INSPECT REAR DOOR LOCK ASSEMBLY LH

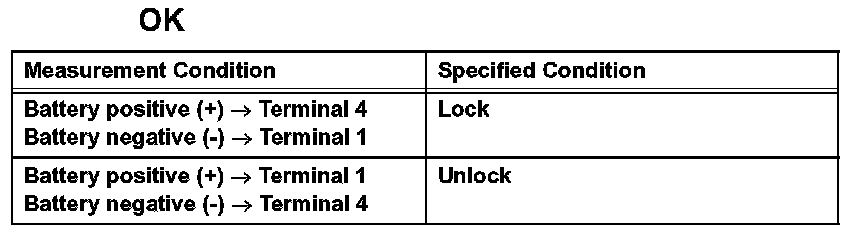

a. Apply battery voltage to the door lock and check operation of the door lock motor.

If the result is not as specified, replace the lock assembly.

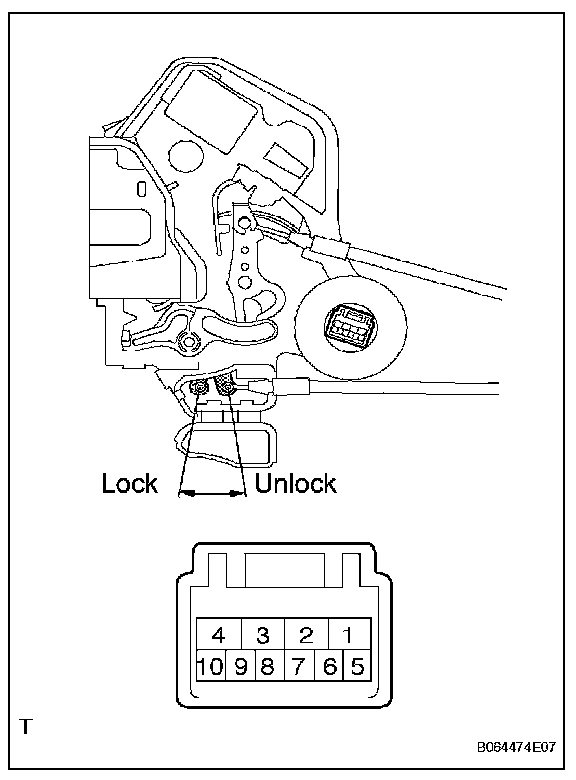

2. INSPECT REAR DOOR LOCK ASSEMBLY RH

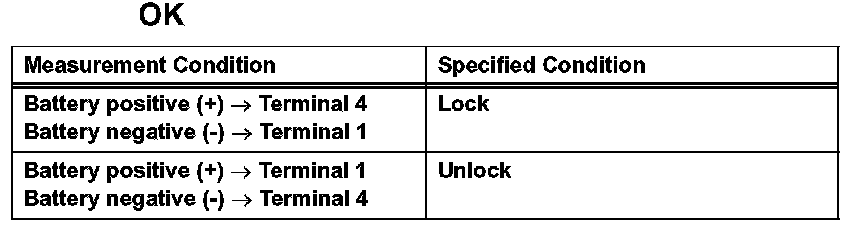

a. Apply battery voltage to the door lock and check operation of the door lock motor.

If the result is not as specified, replace the lock assembly.
