Front Door Lock

FRONT DOOR LOCK

INSPECTION

1. INSPECT FRONT DOOR LOCK ASSEMBLY LH

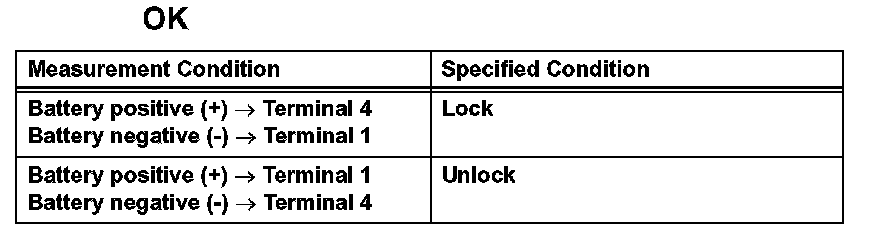

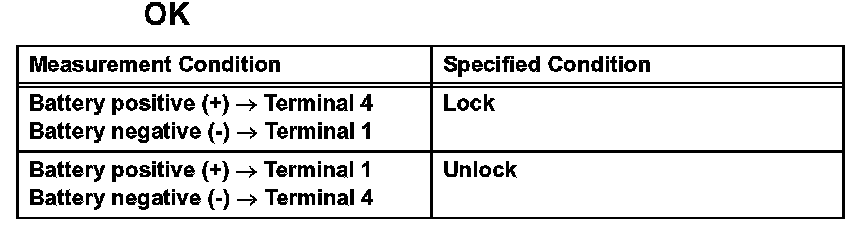

a. Apply battery voltage to the door lock and check operation of the door lock motor.

If the result is not as specified, replace the lock assembly.

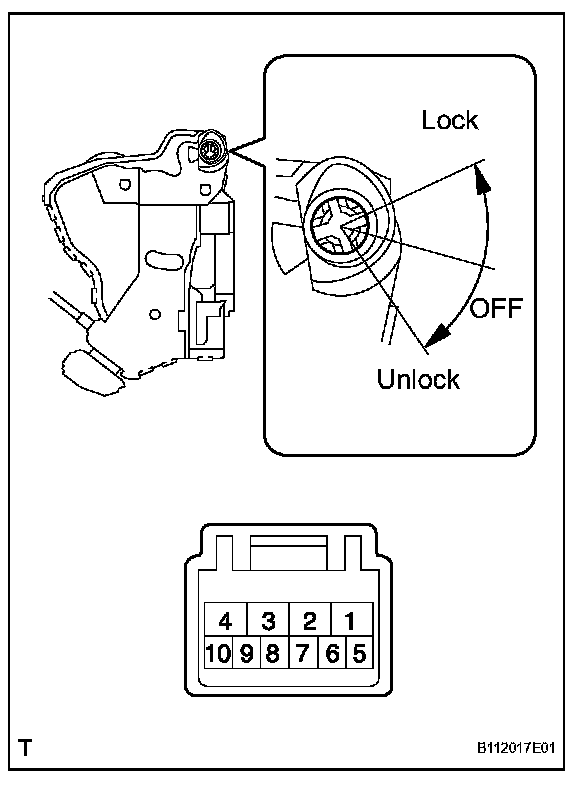

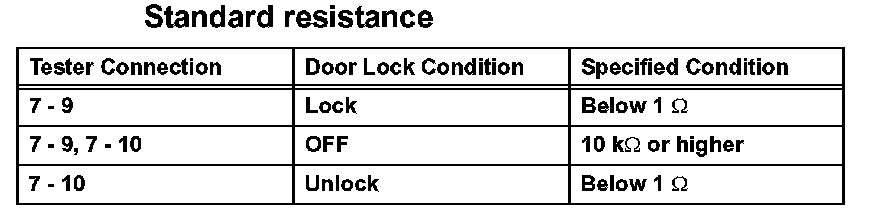

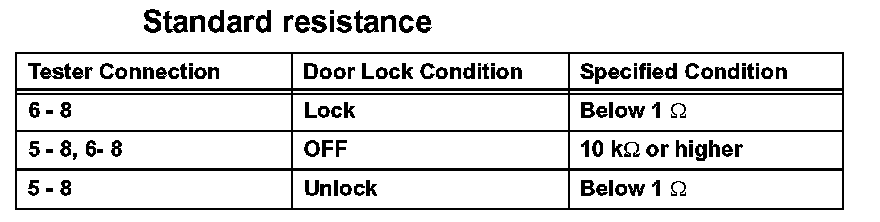

b. Measure the resistance of the door lock and unlock switch.

If the result is not as specified, replace the lock assembly.

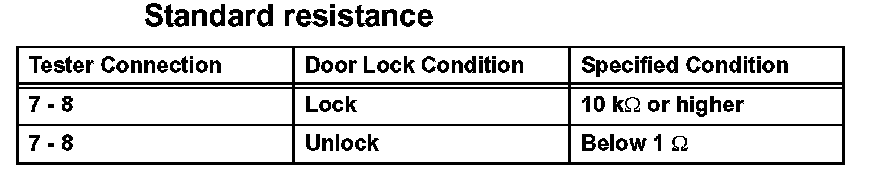

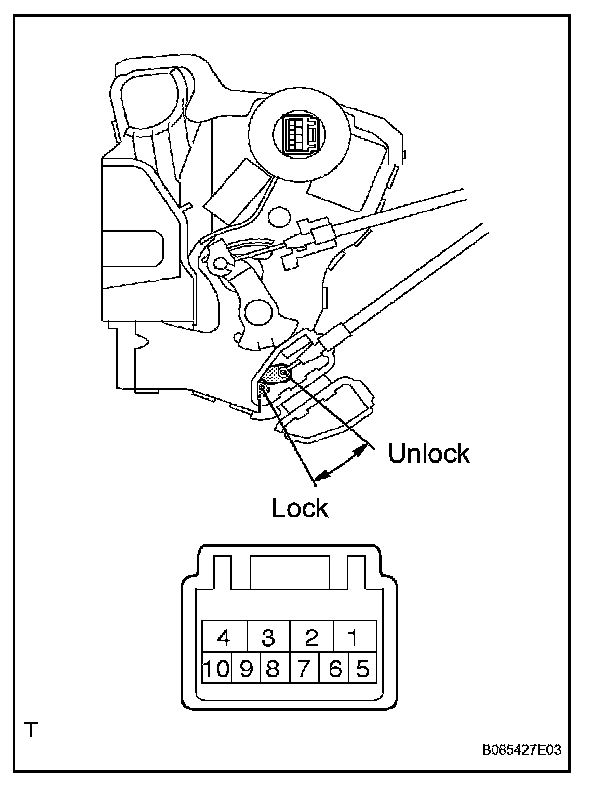

c. Measure the resistance of the detection switch.

If the result is not as specified, replace the lock assembly.

2. INSPECT FRONT DOOR LOCK ASSEMBLY RH







a. Apply battery voltage to the door lock and check operation of the door lock motor.

If the result is not as specified, replace the lock assembly.

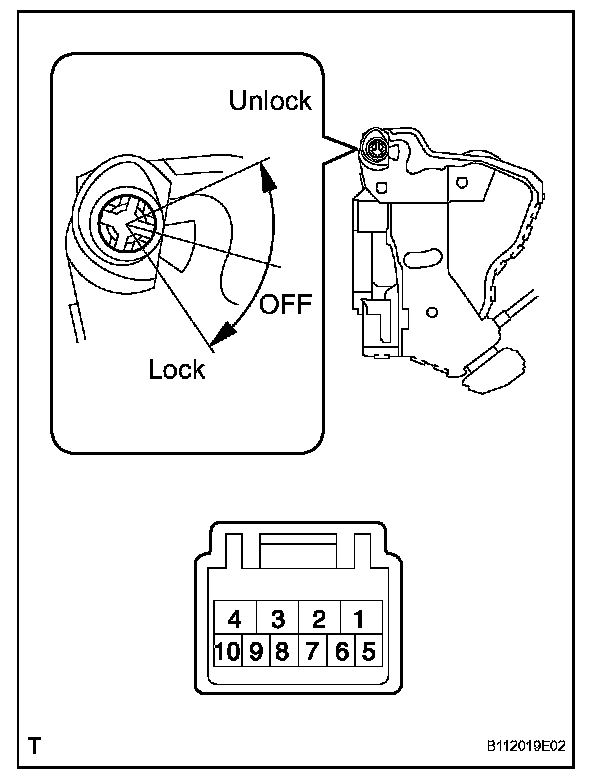

b. Measure the resistance of the door lock and unlock switch.

If the result is not as specified, replace the lock assembly.

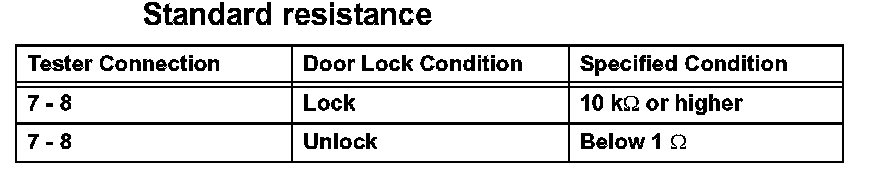

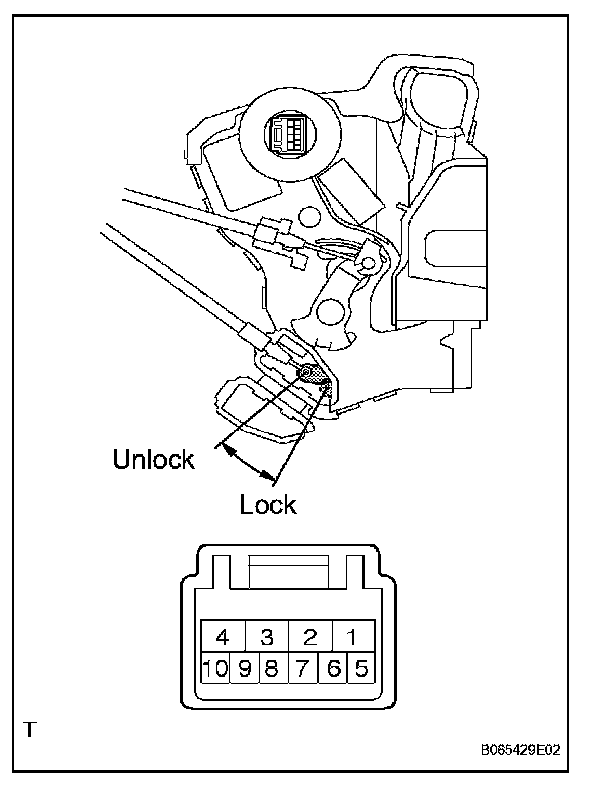

c. Measure the resistance of the detection switch.

If the result is not as specified, replace the lock assembly.
