Back Door Lock

BACK DOOR LOCK

INSPECTION

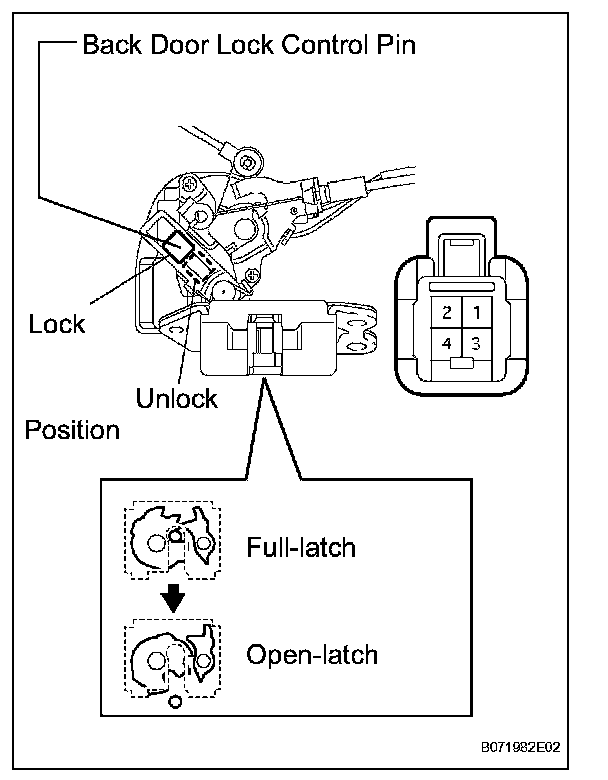

1. INSPECT BACK DOOR LOCK ASSEMBLY

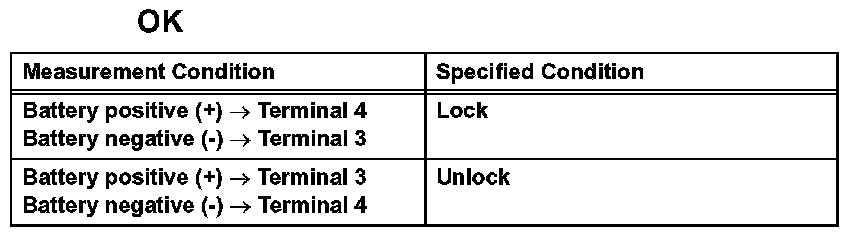

a. Apply battery voltage to the door lock and check operation of the latch.

If the result is not as specified, replace the door lock assembly.

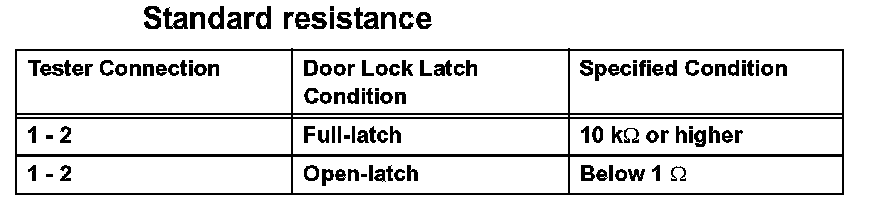

b. Measure the back door courtesy switch resistance.

If the result is not as specified, replace the door lock assembly.
