Reassembly

INSTRUMENT PANEL: UPPER INSTRUMENT PANEL: REASSEMBLY

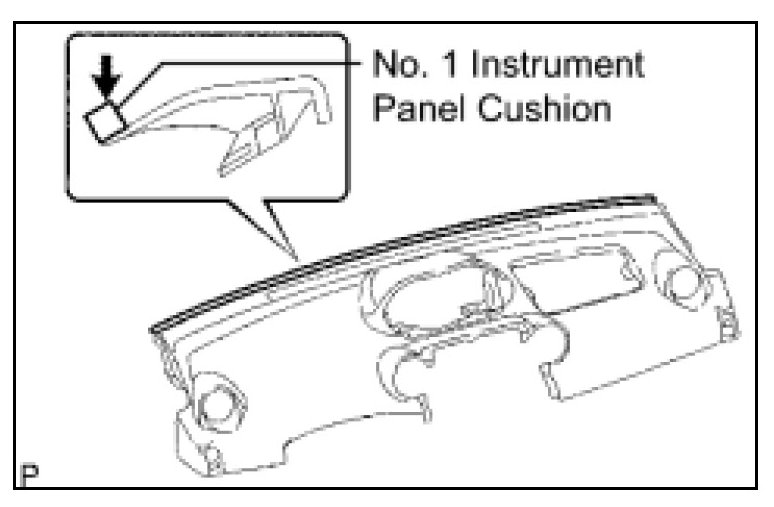

1. INSTALL NO. 1 INSTRUMENT PANEL CUSHION






(a) Install the No. 1 instrument panel cushion to the instrument panel.

2. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

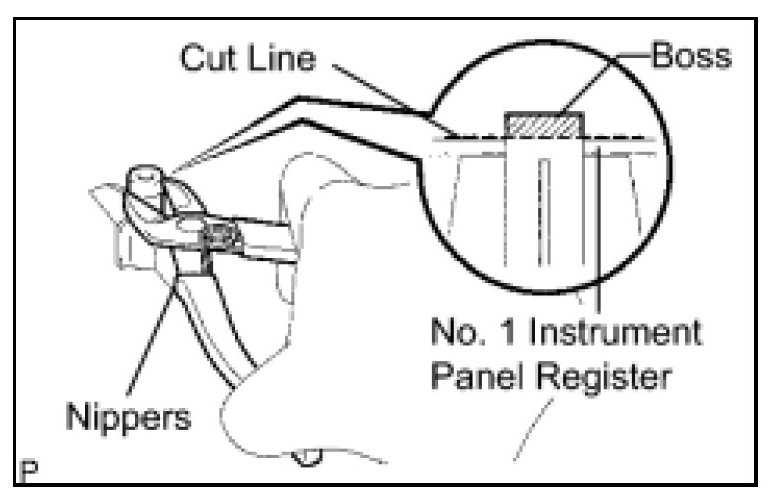

(a) When replacing the instrument panel with a new one: Cut the boss off using nippers, as shown in the illustration.

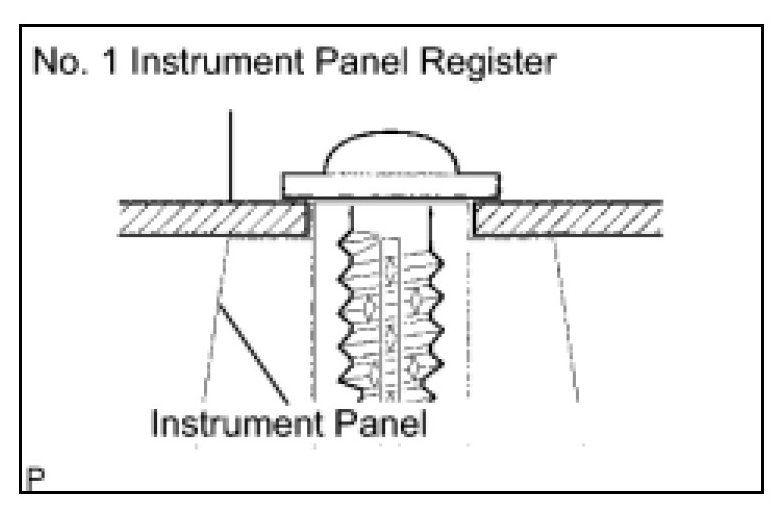

(b) Install the No. 1 instrument panel register to the instrument panel with a screw.

3. INSTALL NO. 1 HEATER TO REGISTER DUCT

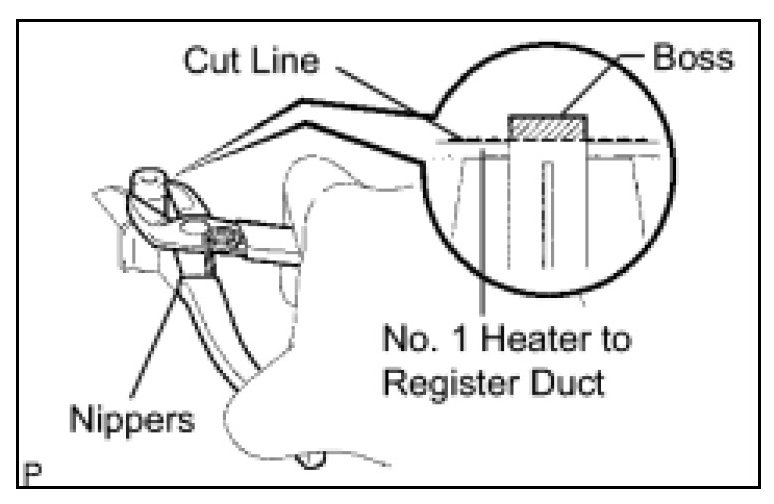

(a) When replacing the instrument panel with a new one: Cut the boss off using nippers, as shown in the illustration.

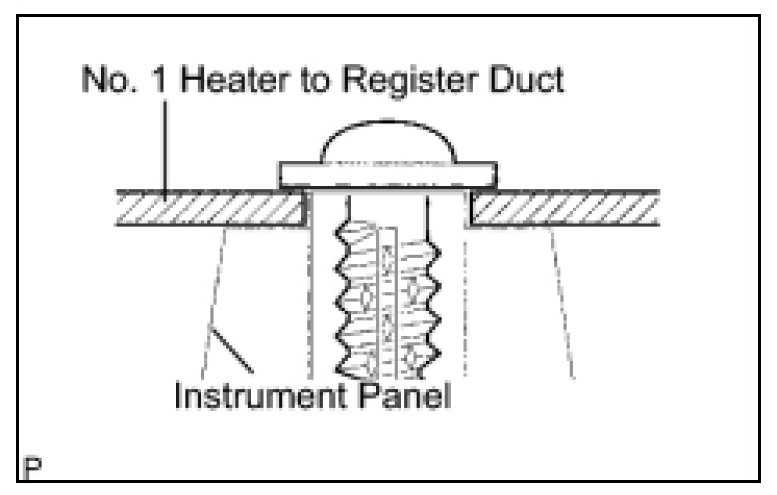

(b) Install the No. 1 heater to register duct to the instrument panel with a screw.

4. INSTALL NO. 3 HEATER TO REGISTER DUCT

HINT:
Use the same procedures described for the No. 1 heater to register duct.

5. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
