Reassembly

INSTRUMENT PANEL: LOWER INSTRUMENT PANEL: REASSEMBLY

1. INSTALL GLOVE COMPARTMENT DOOR LOCK MOUNTING BRACKET






(a) Install the glove compartment door lock mounting bracket with the screw.

2. INSTALL NO. 2 HEATER TO REGISTER DUCT

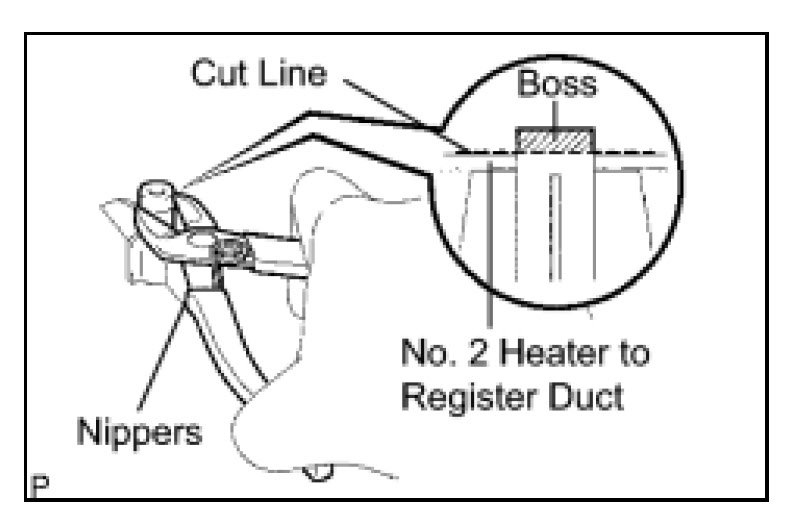

(a) When replacing the lower instrument panel with a new one: Cut the boss off using nippers, as shown in the illustration.

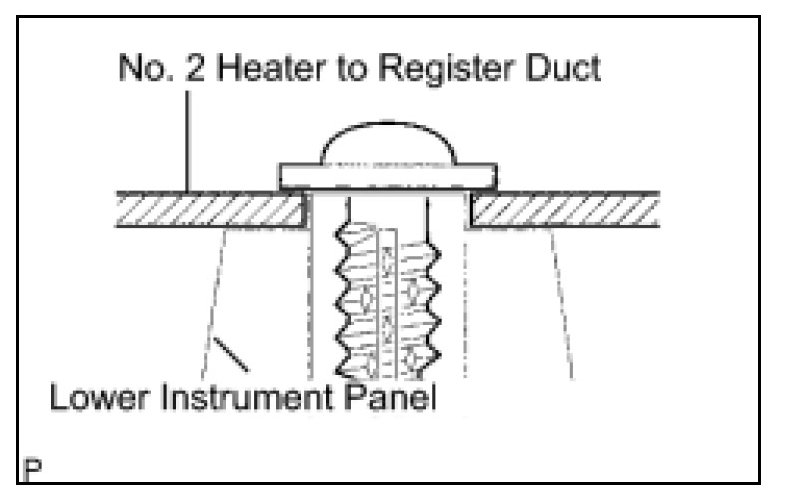

(b) Using a screw, install the No. 2 heater to register duct.
