Installation

INSTALLATION

1. INSTALL LOWER INSTRUMENT PANEL ASSEMBLY
(a) Install the instrument panel.
(b) Install the instrument panel junction block assembly with the 2 screws and bolt.
(c) Install the 2 bolts, 2 nuts and 2 screws.
(d) Install the 2 clips.
(e) Connect the hood lock control cable.






2. INSTALL FUSE BOX OPENING COVER

3. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER

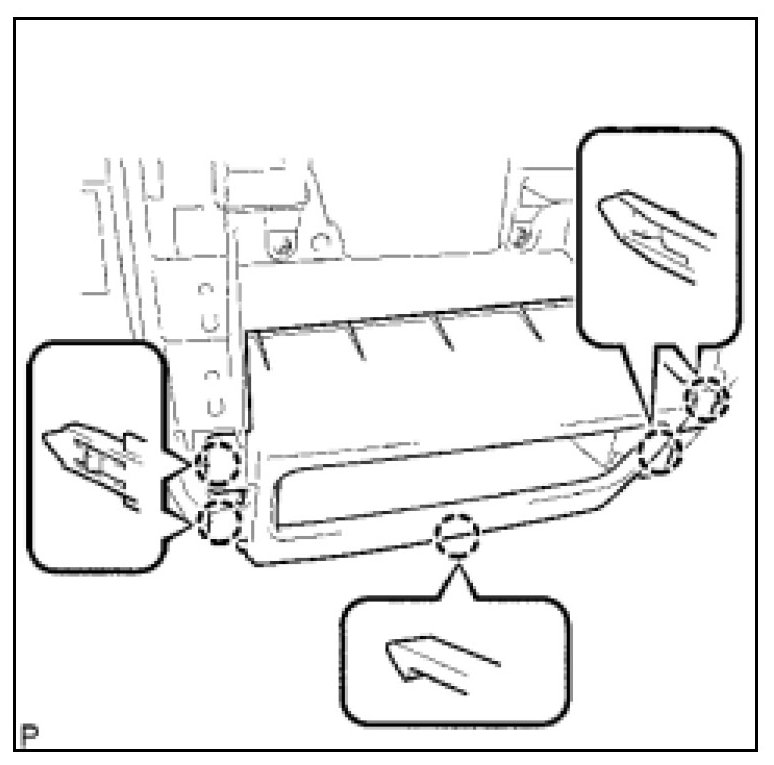

(a) Attach the 3 claws to install the instrument panel finish panel lower center.
(b) Install the 2 clips.

4. INSTALL INSTRUMENT COVER LOWER CENTER






(a) Attach the 5 claws to install the instrument cover lower
center.

5. INSTALL FRONT ASH RECEPTACLE ASSEMBLY






(a) Connect the connectors.

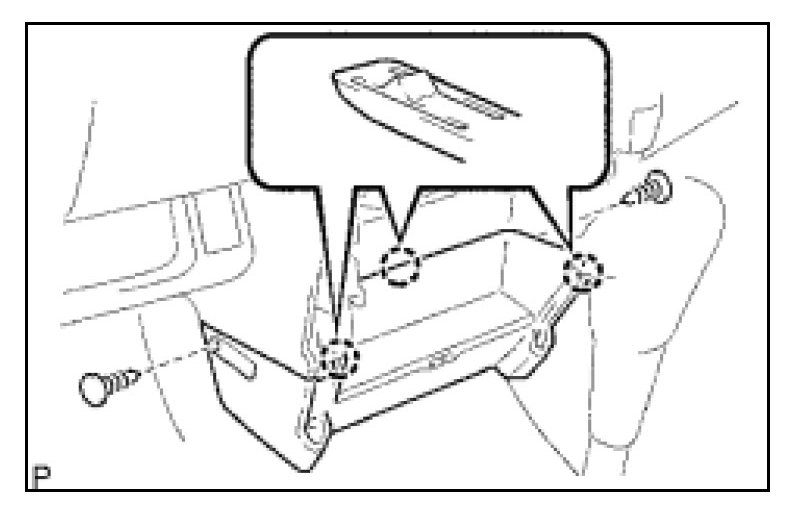

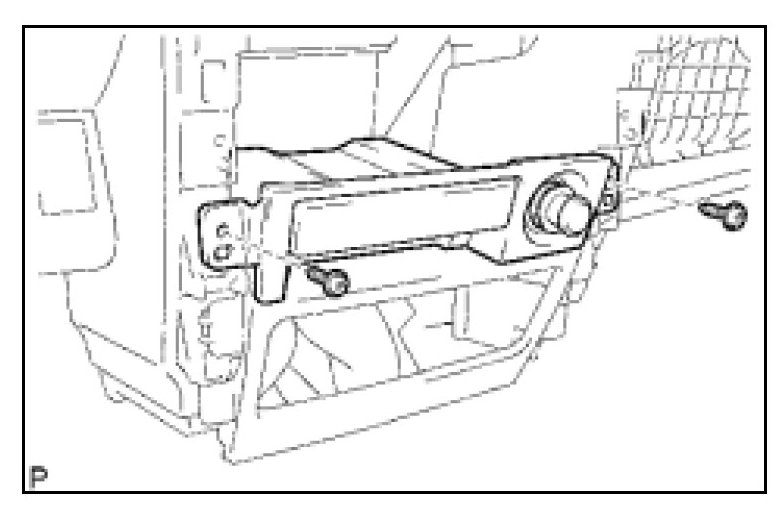

(b) Install the front ash receptacle with the 2 screws.

6. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY CENTER






(a) Connect the connectors.

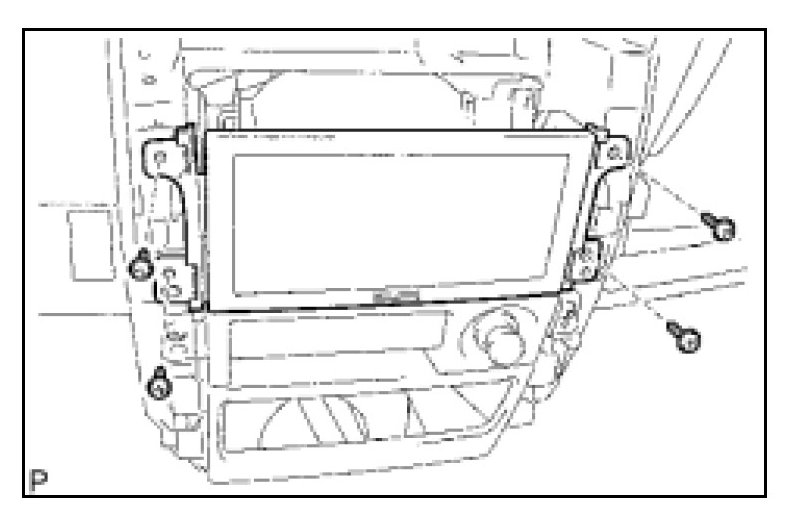

(b) Install the instrument cluster finish panel assembly center with the 4 screws.

7. INSTALL HEATER CONTROL AND ACCESSORY ASSEMBLY

8. INSTALL COWL SIDE TRIM BOARD LH

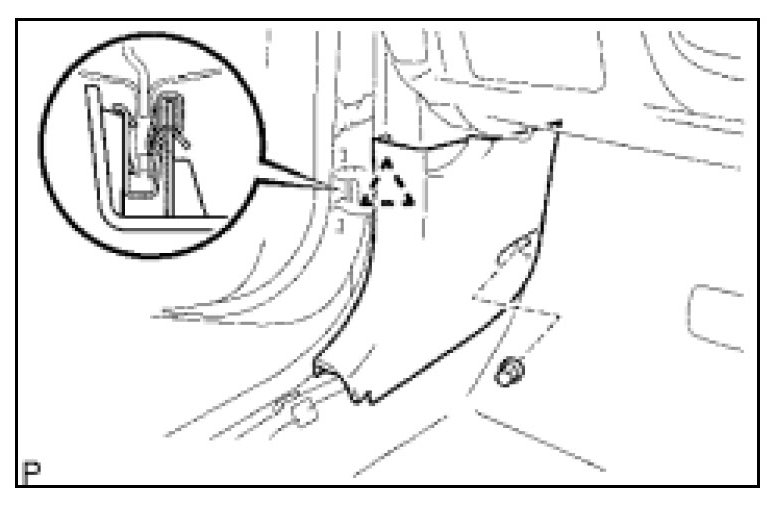

(a) Attach the clip to install the cowl side trim board.
(b) Install the clip.

9. INSTALL COWL SIDE TRIM BOARD RH

HINT:
Use the same procedures for the RH side and LH side.

10. INSTALL FRONT DOOR SCUFF PLATE LH

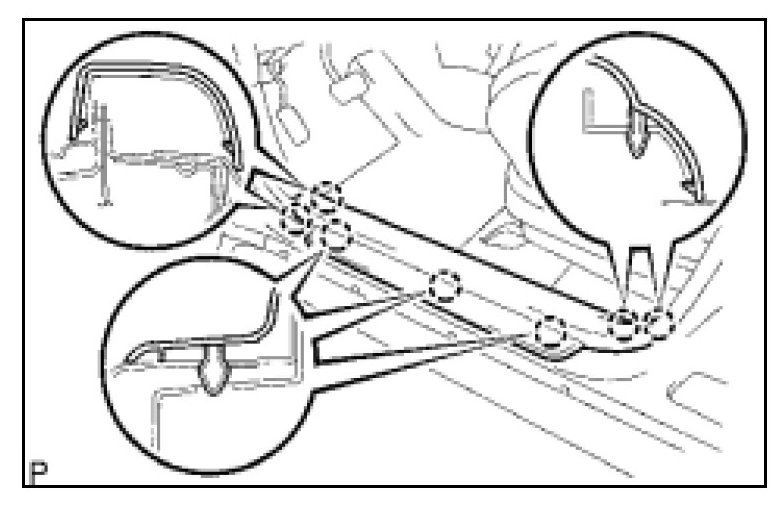

(a) Attach the 7 claws to install the front door scuff plate.

11. INSTALL FRONT DOOR SCUFF PLATE RH

HINT:
Use the same procedures for the RH side and LH side.

12. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

13. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY

14. INSTALL STEERING COLUMN COVER

15. INSTALL STEERING WHEEL ASSEMBLY

16. INSTALL STEERING PAD ASSEMBLY

17. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
(a) Install the instrument panel.

18. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

19. PERFORM INITIALIZATION
(a) Perform initialization.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

20. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light
