Body Emblem: Service and Repair

REMOVAL

Name Plate:

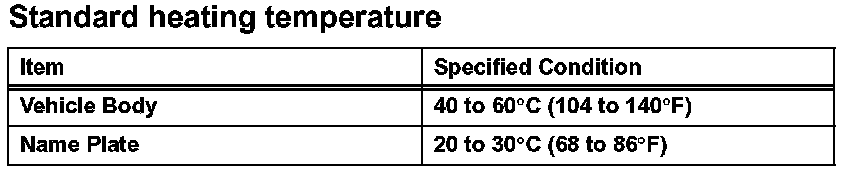

HINT: When removing the name plate, heat the vehicle body and name plate using a heat light.






NOTE: Do not heat the vehicle body and name plate excessively.

1. REMOVE BACK DOOR NAME PLATE

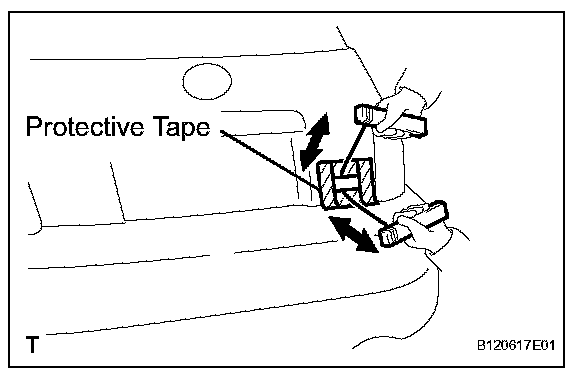

a. Put protective tape around the name plate.
b. Insert a piano wire between the vehicle body and name plate.
c. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
d. Pull the piano wire and scrape off the double-sided tape that holds the name plate to the vehicle body

NOTE:
- If reusing the name plate, take care not to damage the name plate.
- Be careful not to damage the vehicle body.

INSTALLATION

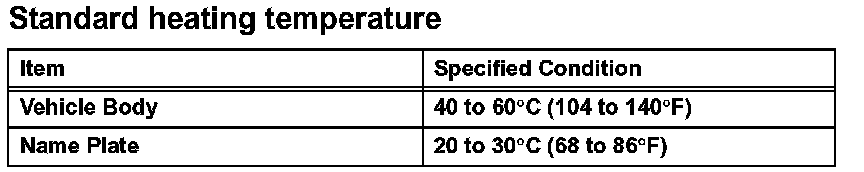

HINT: When installing the name plate, heat the vehicle body and name plate using a heat light.






NOTE: Do not heat the vehicle body and name plate excessively.

1. INSTALL BACK DOOR NAME PLATE
a. Clean the vehicle body surface.
1. Using a heat light, heat the vehicle body surface.
2. Remove the double-sided tape from the vehicle body
3. Wipe off any tape adhesive residue with white gasoline.

b. If reusing the name plate:
Clean the name plate.

1. Using a heat light, heat the name plate.
2. Remove the double-sided tape from the name plate.
3. Wipe off any tape adhesive residue with white gasoline.
4. Apply new double-sided tape to the name plate.

c. Install the name plate.
1. Using a heat light, heat the vehicle body and name plate.
2. Remove the peeling paper from the face of the name plate.

HINT: After removing the peeling paper, keep the exposed adhesive free from foreign matter.

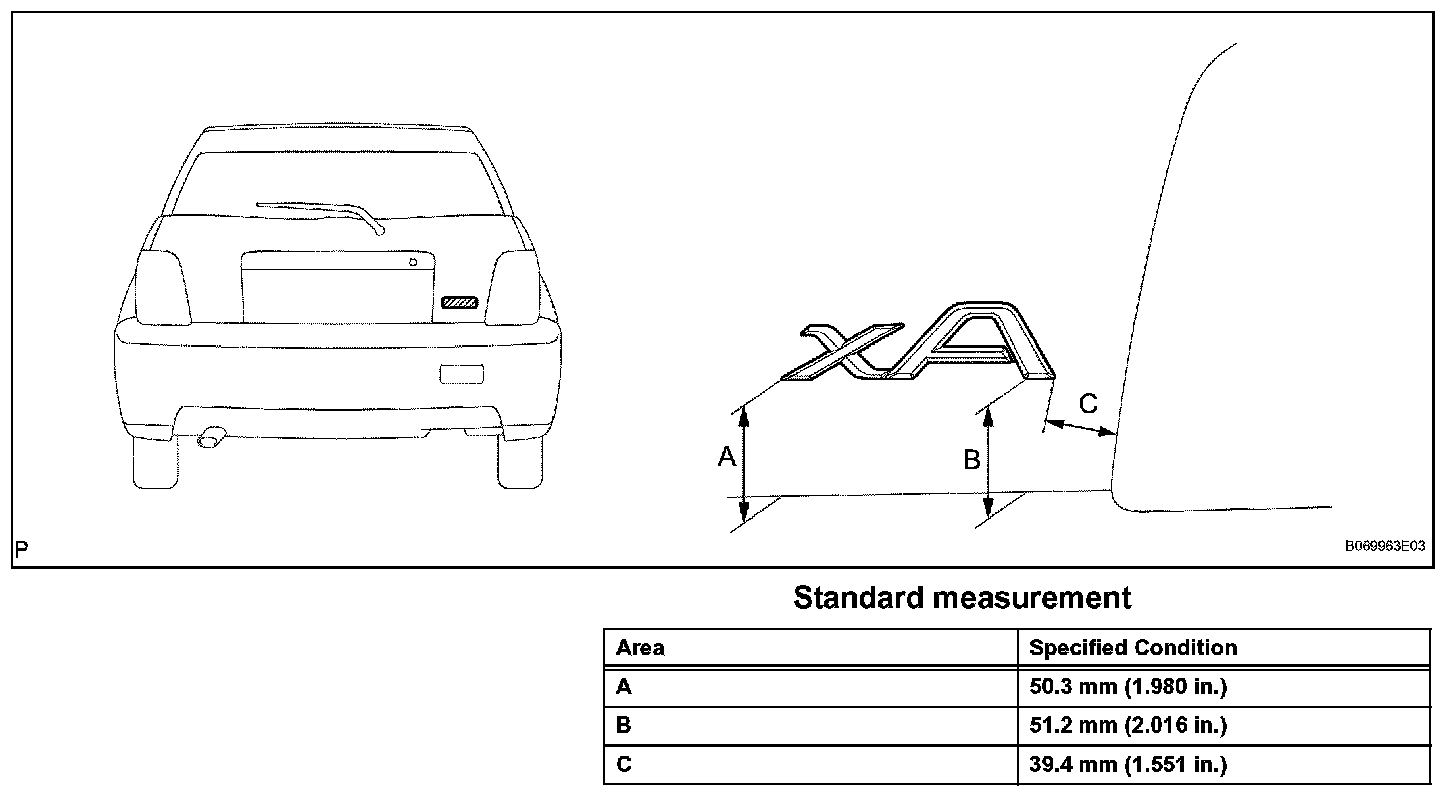

3. Install the name plate.

NOTE: Install the name plate exactly according to the specifications.
