Overhaul
DISASSEMBLY1. REMOVE FRONT SPOILER PAD LH
a. Remove the 3 screws and spoiler pad.
2. REMOVE FRONT SPOILER PAD RH
a. Remove the 3 screws and spoiler pad.
3. REMOVE FRONT LICENSE PLATE MOUNTING BRACKET
a. Remove the 2 screws and mounting bracket.
4. REMOVE FOG LIGHT COVER LH
a. Using a screwdriver, detach the claws and remove the cover.
HINT: Tape the screwdriver tip before use.
5. REMOVE FOG LIGHT COVER RH
a. Using a screwdriver, detach the claws and remove the cover.
HINT: Tape the screwdriver tip before use.

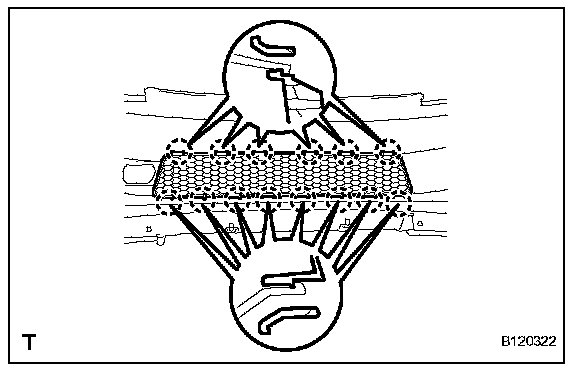

6. REMOVE RADIATOR GRILLE LOWER
a. Using a screwdriver, detach the 14 claws and remove the radiator grille lower.
HINT: Tape the screwdriver tip before use.
7. REMOVE FRONT SIDE MARKER LIGHT ASSEMBLY LH
a. Remove the 2 retainers and light.
8. REMOVE FRONT SIDE MARKER LIGHT ASSEMBLY RH
a. Remove the 2 retainers and light.
9. REMOVE FRONT BUMPER HOLE COVER
a. Using a screwdriver, detach the claws and remove the cover.
HINT: Tape the screwdriver tip before use.
REASSEMBLY
1. INSTALL FRONT BUMPER HOLE COVER
a. Attach the claws to install the cover.
2. INSTALL FRONT SIDE MARKER LIGHT ASSEMBLY LH
a. Install the light with the 2 retainers.
3. INSTALL FRONT SIDE MARKER LIGHT ASSEMBLY RH
a. Install the light with the 2 retainers.

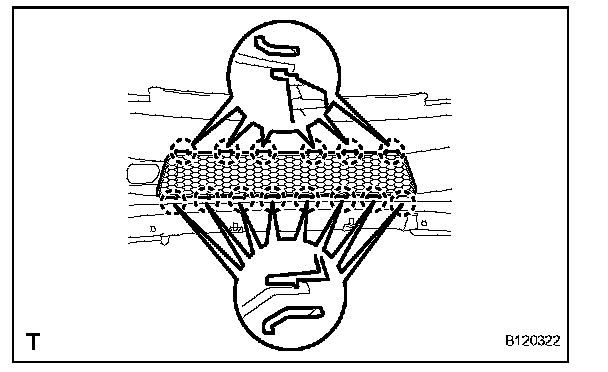

4. INSTALL RADIATOR GRILLE LOWER
a. Attach the 14 claws to install the radiator grille lower.
5. INSTALL FOG LIGHT COVER LH
a. Attach the claws to install the cover.
6. INSTALL FOG LIGHT COVER RH
a. Attach the claws to install the cover.
7. INSTALL FRONT LICENSE PLATE MOUNTING BRACKET
a. Install the mounting bracket with the 2 screws.
8. INSTALL FRONT SPOILER PAD LH
a. Install the spoiler pad with the 3 screws.
9. INSTALL FRONT SPOILER PAD RH
a. Install the spoiler pad with the 3 screws.
