Rear Speaker

REAR SPEAKER

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE REAR DOOR REAR GUIDE BRACKET GARNISH LH
3. REMOVE REAR DOOR ARMREST BASE PANEL UPPER LH
4. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH
5. REMOVE REAR DOOR SERVICE HOLE COVER LH




6. REMOVE REAR SPEAKER ASSEMBLY LH
a. Disconnect the connector.

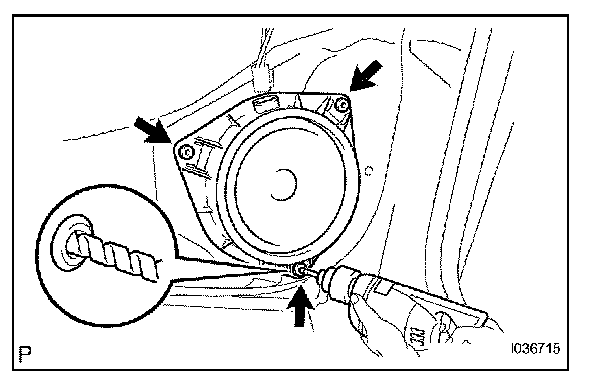

b. Using a drill of less than Dia 4 mm (0.16 in.), drill out the 3 rivet heads and remove the rear speaker assembly from the rear door panel.

NOTE: Do not drill the rivet at an angle, as this will cause damage to the drill and drill hole. Line up the drill and rivet, and carefully drill out the rivet head.

CAUTION: Be careful as the cut rivet will be very hot.

c. Continue drilling and push out the remaining fragments with the drill.
d. Using a vacuum cleaner, remove the rivet fragments and shavings from the inside of the door.

INSTALLATION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.




1. INSTALL REAR SPEAKER ASSEMBLY LH

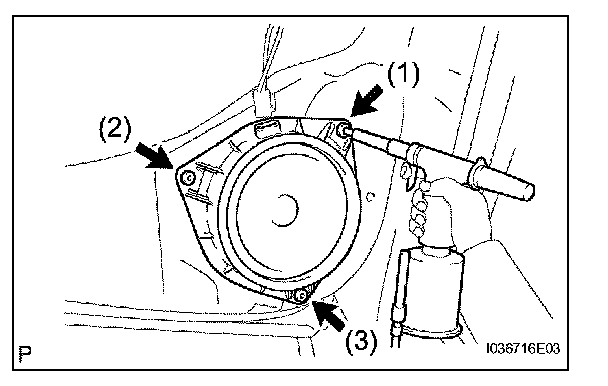

a. Using an air riveter or a hand riveter, install 3 new strike rivets to the speaker on the rear door panel.

HINT: Install the new strike rivets in the order shown in the illustration.

NOTE:

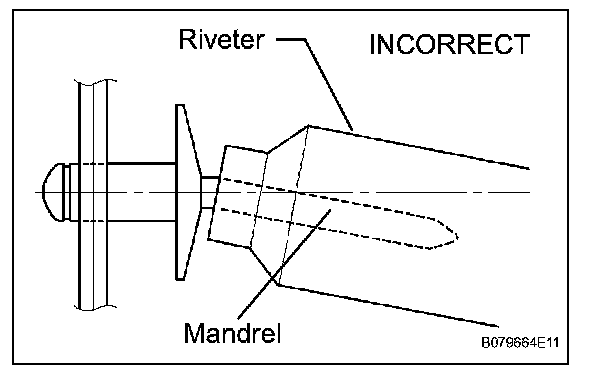

- Do not pry the rivet with the riveter, as this will cause damage to the riveter and mandrel.

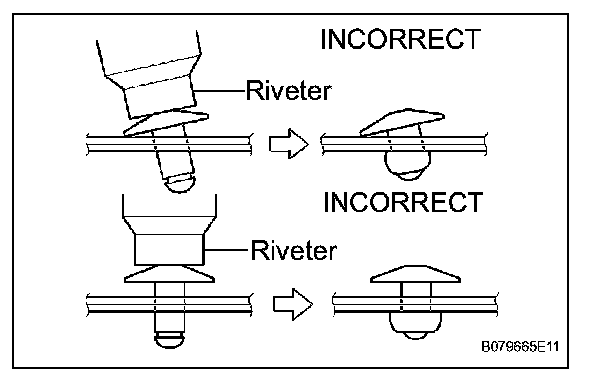

- Confirm that the rivets are seated properly against the speaker. Do not tilt the riveter when installing the rivet to the speaker. Do not leave any space between the rivet head and the speaker.

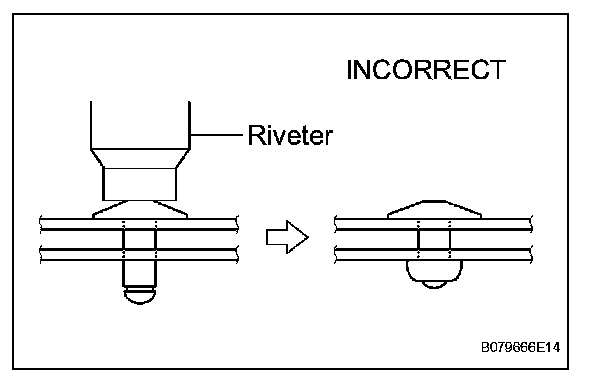

- Do not leave any space between the speaker and door panel. Firmly hold together the 2 items while installing the rivet.

b. Connect the connector.

2. INSTALL REAR DOOR SERVICE HOLE COVER LH
3. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH
4. INSTALL REAR DOOR ARMREST BASE PANEL UPPER LH
5. INSTALL REAR DOOR REAR GUIDE BRACKET GARNISH LH
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
