Front No. 2 Speaker
FRONT NO. 2 SPEAKERREMOVAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH
3. REMOVE FRONT ARMREST BASE PANEL UPPER LH
4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
5. REMOVE FRONT DOOR SERVICE HOLE COVER LH

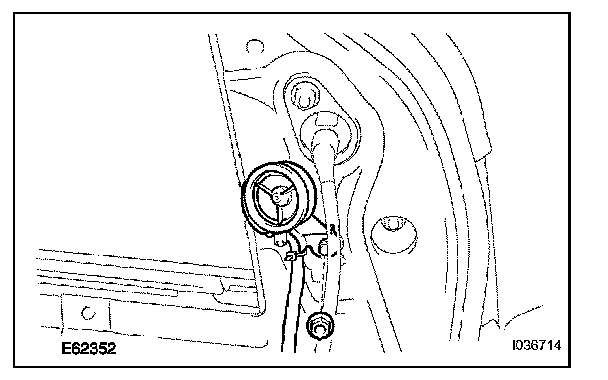

6. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY LH
a. Disconnect the connector.
b. Remove the nut and speaker.
INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

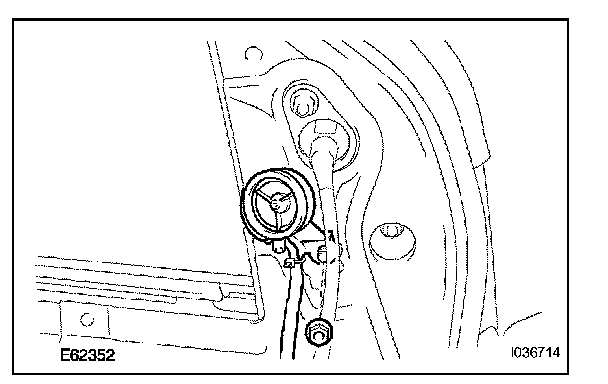

1. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY LH
a. Install the speaker with the nut.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
b. Connect the connector.
2. INSTALL FRONT DOOR SERVICE HOLE COVER LH
3. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
4. INSTALL FRONT ARMREST BASE PANEL UPPER LH
5. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
