Antenna Cable: Service and Repair

RADIO ANTENNA CORD

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
3. REMOVE INSTRUMENT PANEL ASSEMBLY LOWER
4. REMOVE FRONT DOOR SCUFF PLATE RH
5. REMOVE REAR DOOR SCUFF PLATE RH
6. REMOVE COWL SIDE TRIM BOARD RH
7. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
8. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
9. REMOVE CENTER PILLAR GARNISH LOWER RH
10. REMOVE REAR SEAT CUSHION WITH COVER PAD SUB-ASSEMBLY
11. REMOVE REAR SEAT BACK ASSEMBLY RH
12. REMOVE TONNEAU COVER ASSEMBLY
13. REMOVE NO. 1 DECK BOARD
14. REMOVE DECK FLOOR BOX REAR
15. REMOVE DECK TRIM COVER REAR
16. REMOVE REAR SEAT BACK HINGE SUB-ASSEMBLY RH
17. REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH
18. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
19. REMOVE ROOF SIDE GARNISH INNER RH

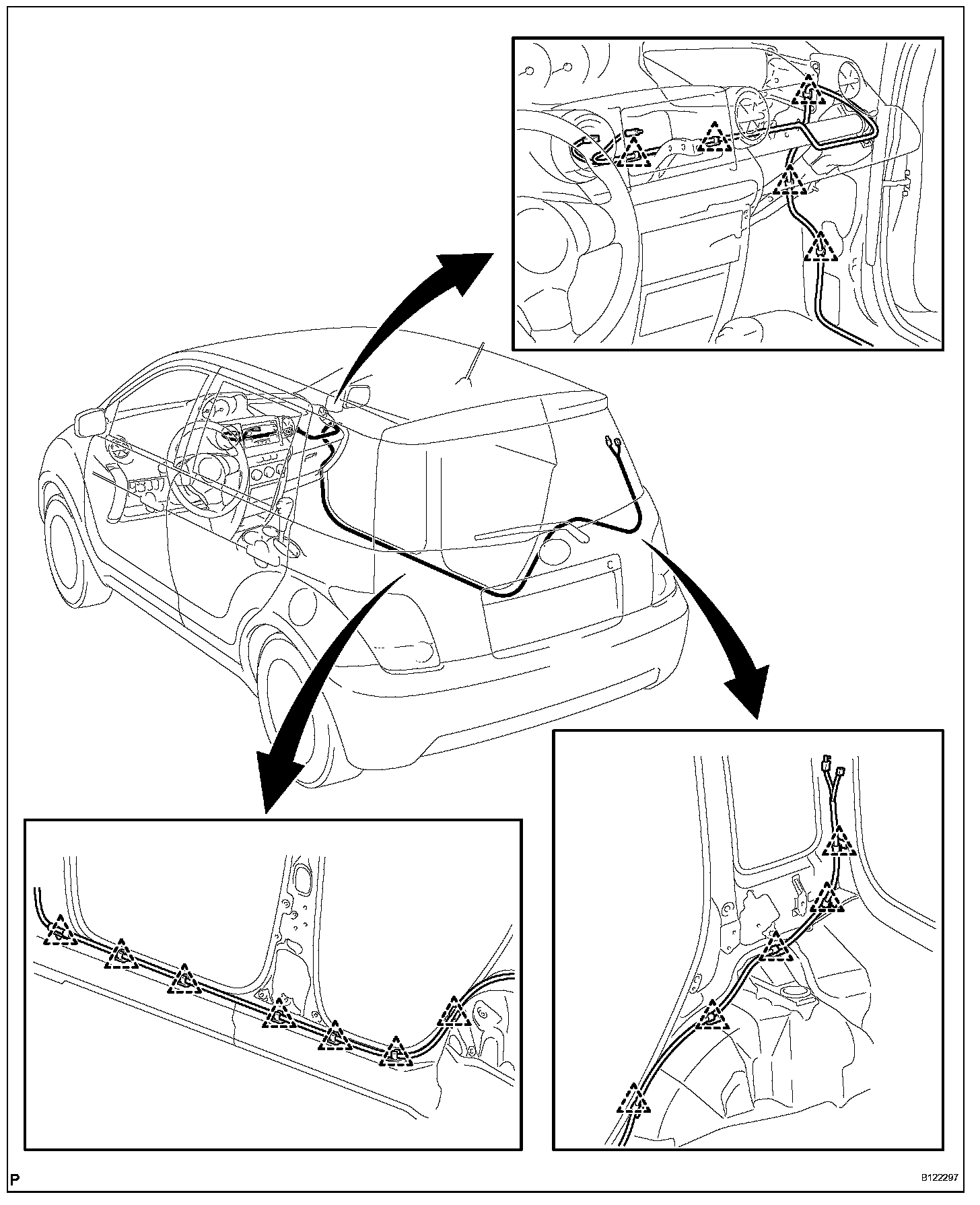

20. REMOVE ANTENNA CORD SUB-ASSEMBLY
a. Disconnect the connectors.
b. Remove the 17 clamps.
c. Remove the antenna cord.

INSTALLATION

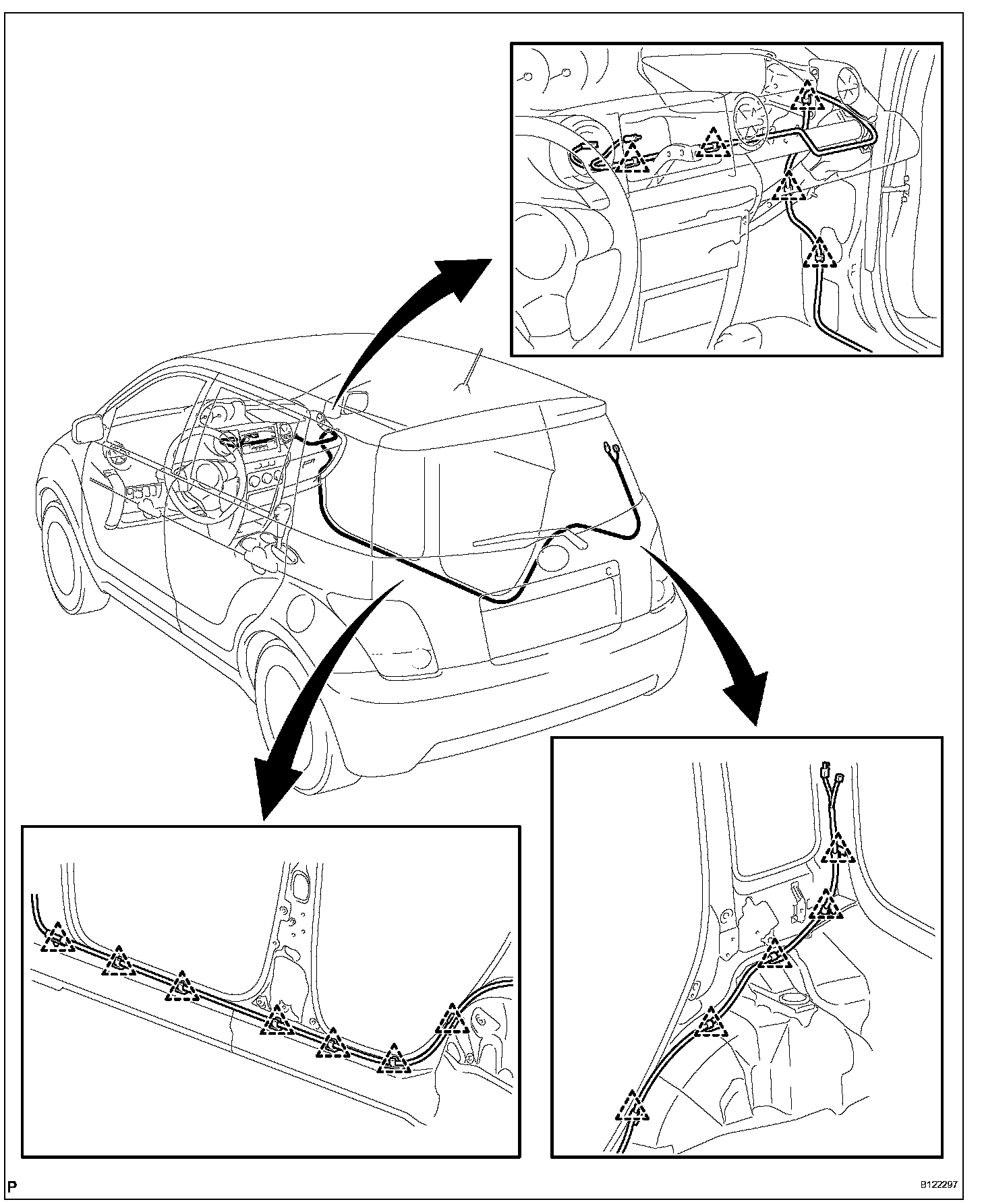

1. INSTALL ANTENNA CORD SUB-ASSEMBLY
a. Install the antenna cord with the 17 clamps.
b. Connect the connectors.

2. INSTALL ROOF SIDE GARNISH INNER RH
3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
4. INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH
5. INSTALL REAR SEAT BACK HINGE SUB-ASSEMBLY RH
6. INSTALL DECK TRIM COVER REAR
7. INSTALL DECK FLOOR BOX REAR
8. INSTALL NO. 1 DECK BOARD
9. INSTALL TONNEAU COVER ASSEMBLY
10. INSTALL REAR SEATBACK ASSEMBLY RH
11. INSTALL REAR SEAT CUSHION WITH COVER PAD SUB-ASSEMBLY
12. INSTALL CENTER PILLAR GARNISH LOWER RH
13. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
14. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
15. INSTALL COWL SIDE TRIM BOARD RH
16. INSTALL REAR DOOR SCUFF PLATE RH
17. INSTALL FRONT DOOR SCUFF PLATE RH
18. INSTALL INSTRUMENT PANEL ASSEMBLY LOWER
19. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
20. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

21. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
