DTC P0976 Shift Solenoid "B" Control Circuit Low (Shift Solenoid Valve S2)
DTC P0977 Shift Solenoid "B" Control Circuit High (Shift Solenoid Valve S2)

DESCRIPTION

Refer to DTC P0973. P0973

P0976-P0977:

MONITOR DESCRIPTION
The ECM commands gear shifts by turning the shift solenoid valves ON/OFF. When there is an open or short circuit in any shift solenoid valve circuit, the ECM detects the problem, illuminates the MIL and stores the DTC. Also, the ECM performs the fail-safe function and turns the other normal shift solenoid valves ON/OFF. In case of a short circuit, the ECM stops sending the current to the short circuited solenoid.

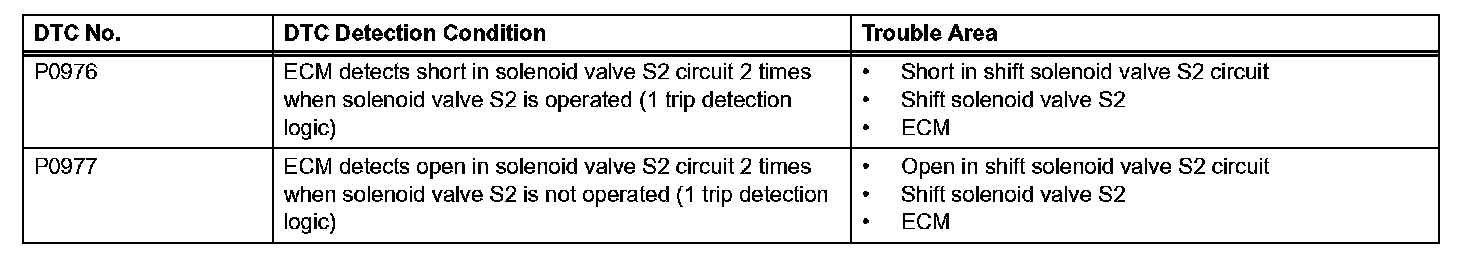

MONITOR STRATEGY:

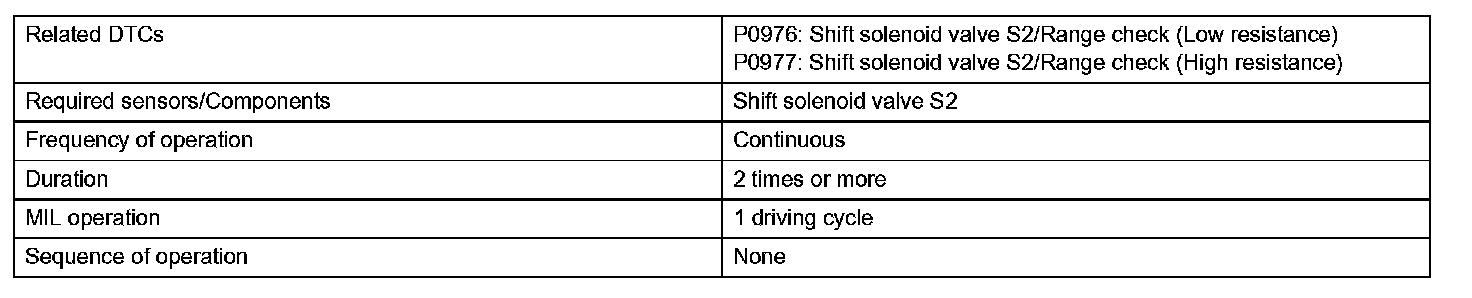

MONITOR STRATEGY

TYPICAL ENABLING CONDITIONS:

TYPICAL ENABLING CONDITIONS

TYPICAL MALFUNCTION THRESHOLDS:

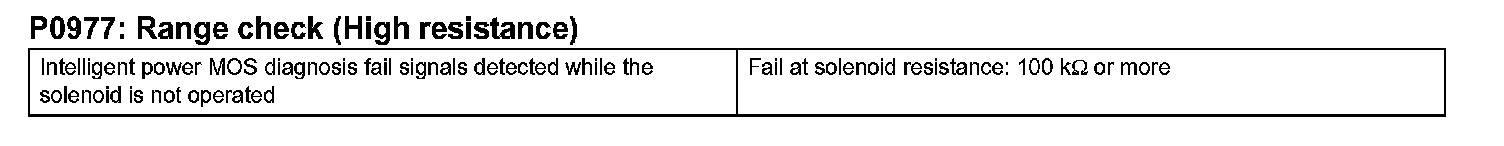

TYPICAL MALFUNCTION THRESHOLDS (PART 2):

TYPICAL MALFUNCTION THRESHOLDS

COMPONENT OPERATING RANGE:

COMPONENT OPERATING RANGE

WIRING DIAGRAM:

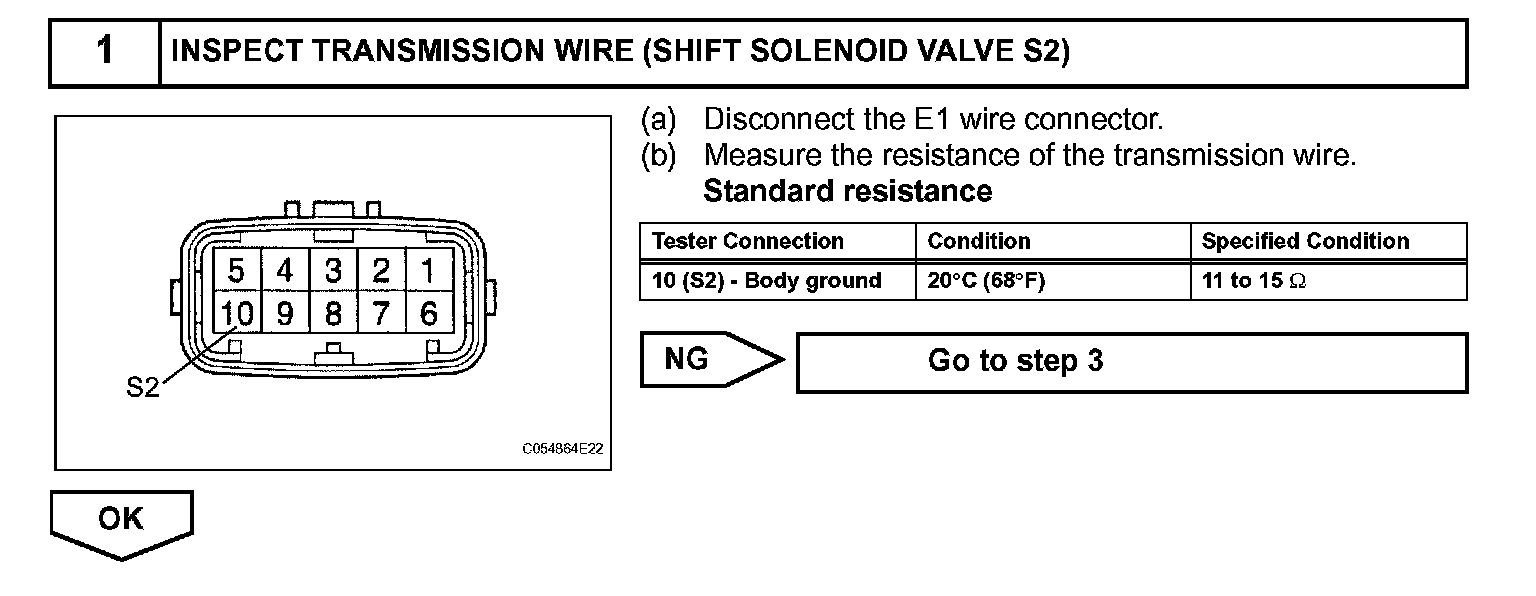

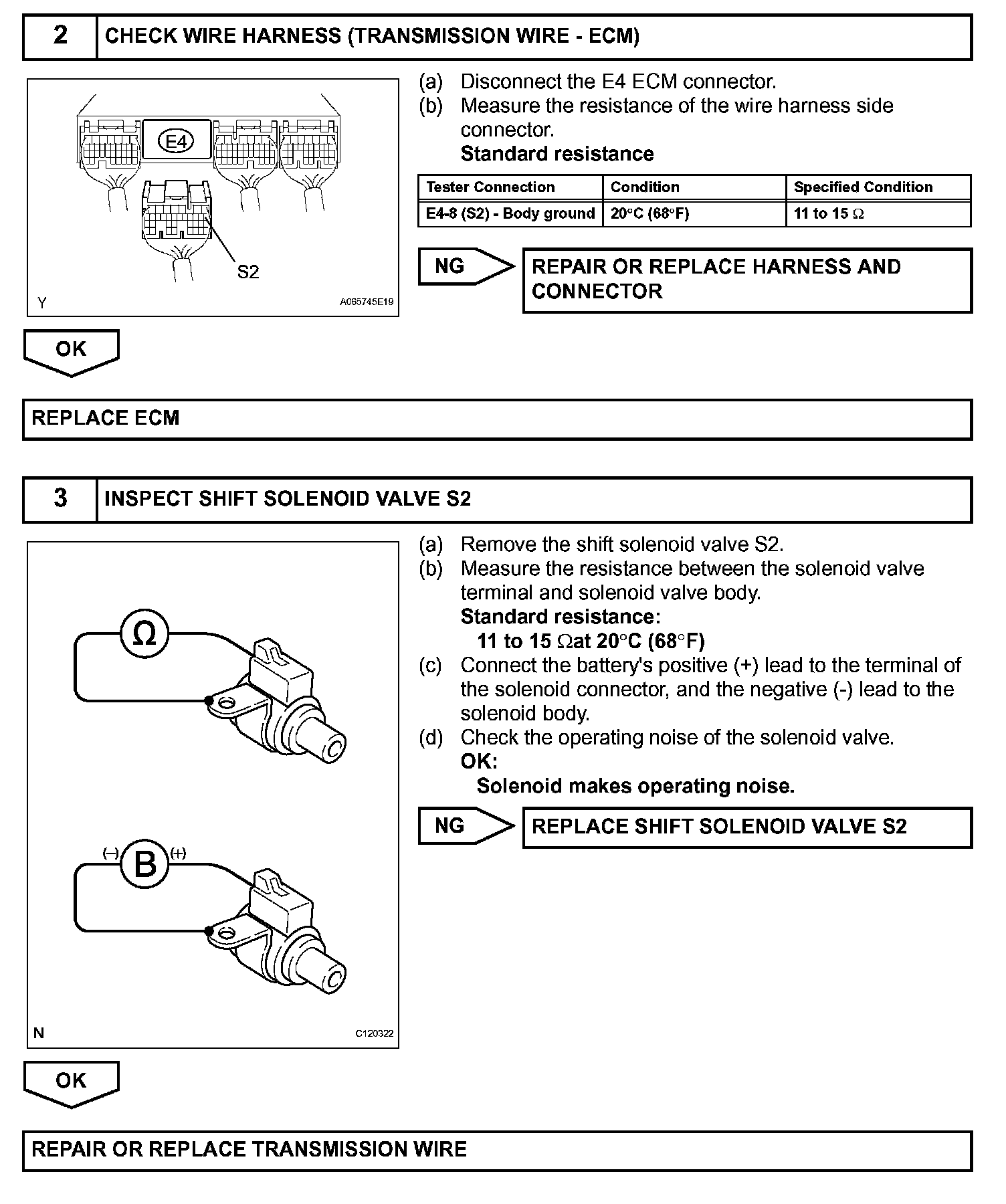

WIRING DIAGRAM
