P0705

DTC P0705 Transmission Range Sensor Circuit Malfunction (PRNDL Input)

DESCRIPTION

MONITOR DESCRIPTION:

The park/neutral position switch detects the shift lever position and sends a signal to the ECM.

MONITOR DESCRIPTION

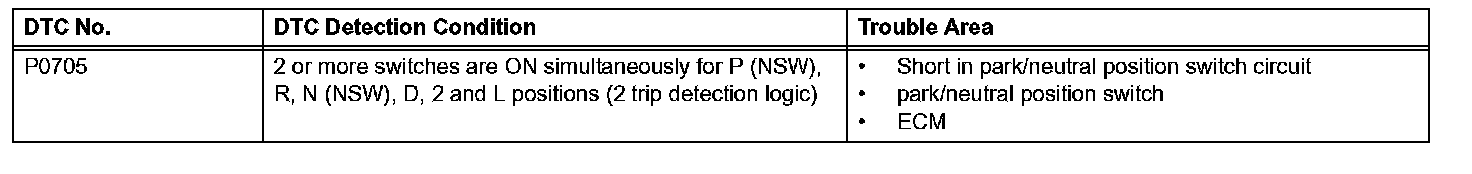

These DTCs indicate a problem with the park/neutral position switch and the wire harness in the park/neutral position switch circuit.

For security, the park/neutral position switch detects the shift lever position so that the engine can be started only when the shift lever is on P or N.

The park/neutral position switch sends a signal to the ECM according to the shift lever position (R, D, 2 or L).

The ECM determines that there is a problem with the switch or related parts if it receives more than 1 position signal simultaneously. The ECM will illuminate the MIL and store the DTC.

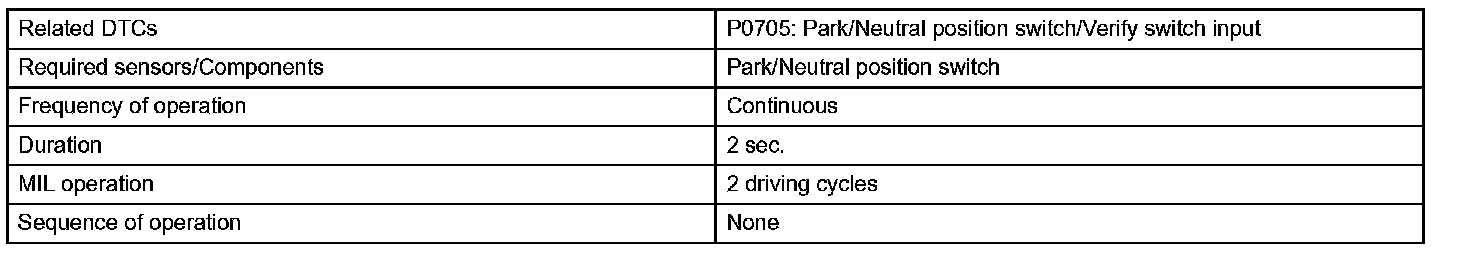

MONITOR STRATEGY:

MONITOR STRATEGY

TYPICAL ENABLING CONDITIONS:

TYPICAL ENABLING CONDITIONS

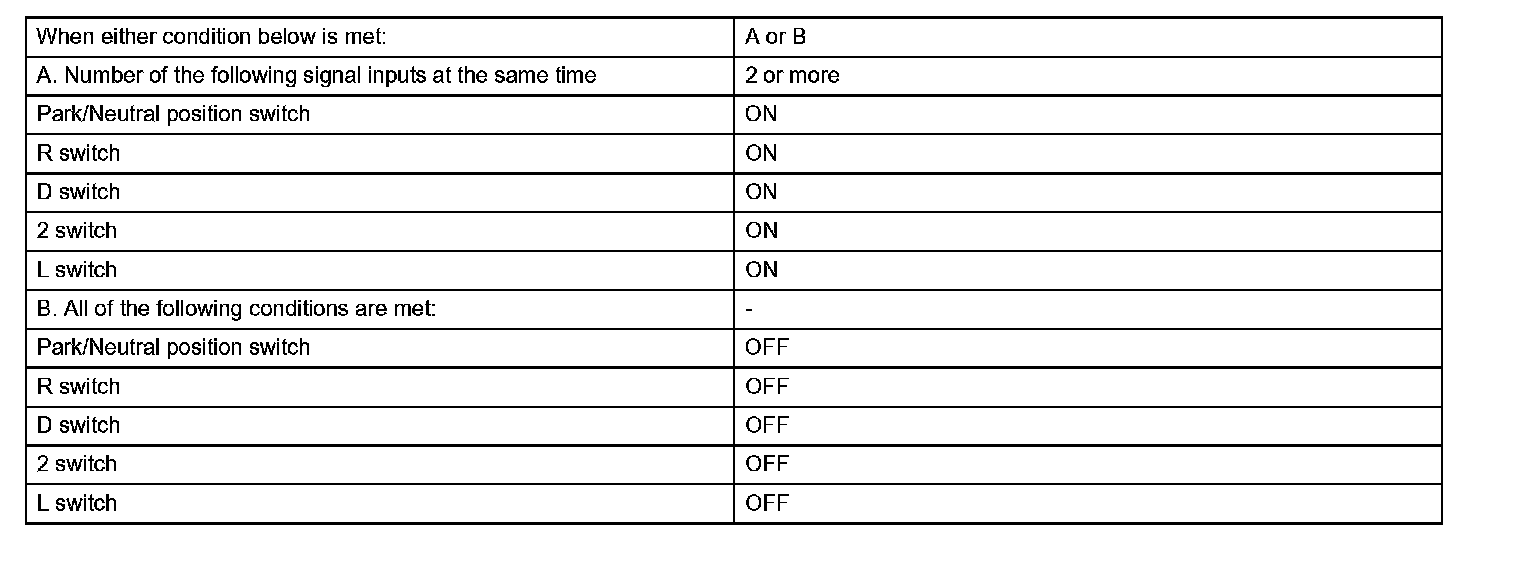

TYPICAL MALFUNCTION THRESHOLDS:

TYPICAL MALFUNCTION THRESHOLDS

COMPONENT OPERATING RANGE:

COMPONENT OPERATING RANGE

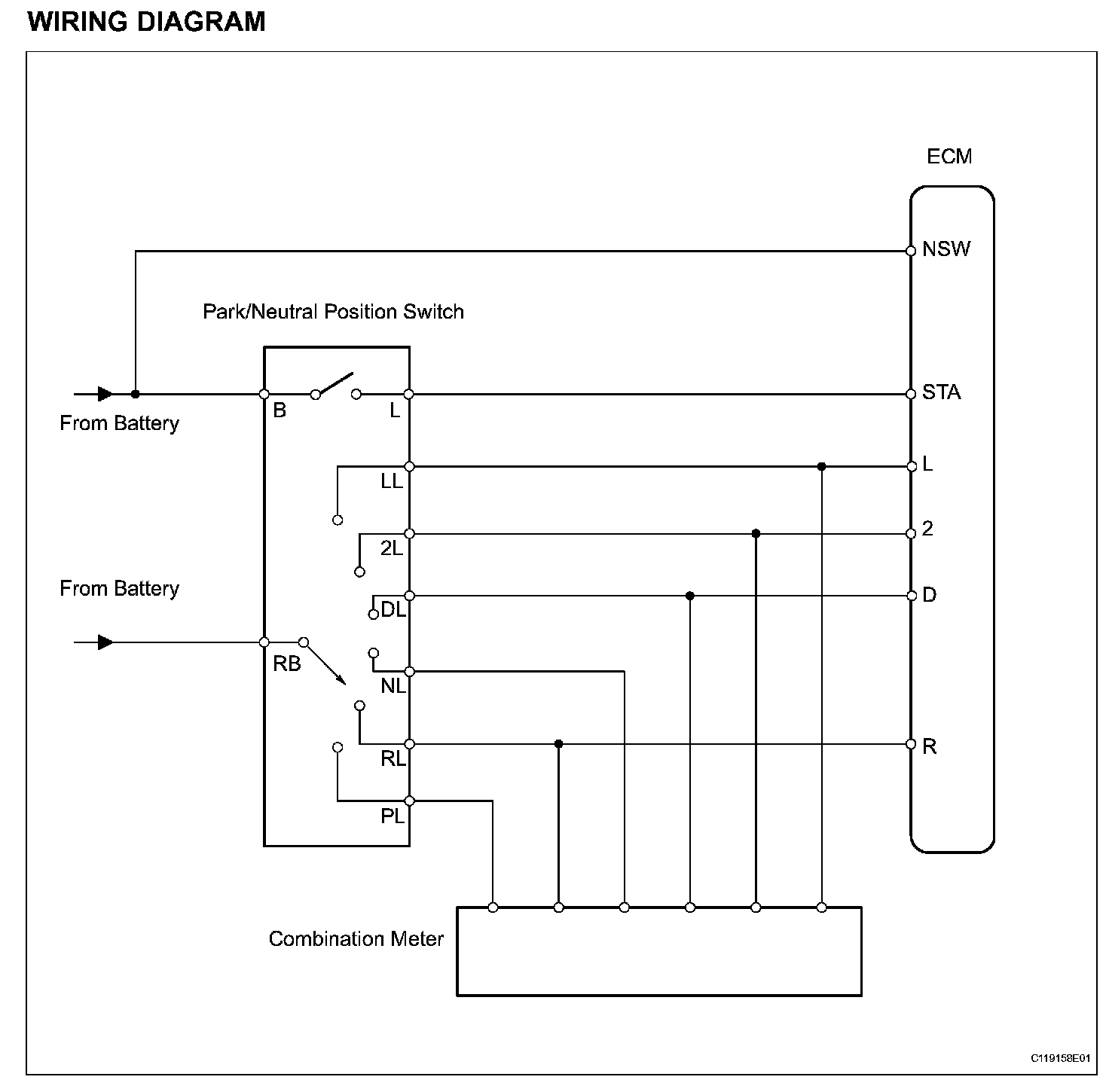

WIRING DIAGRAM:

WIRING DIAGRAM
