DTC 57

DTC B1185/57 Short in Front Passenger Side Squib 2nd Step Circuit

DESCRIPTION

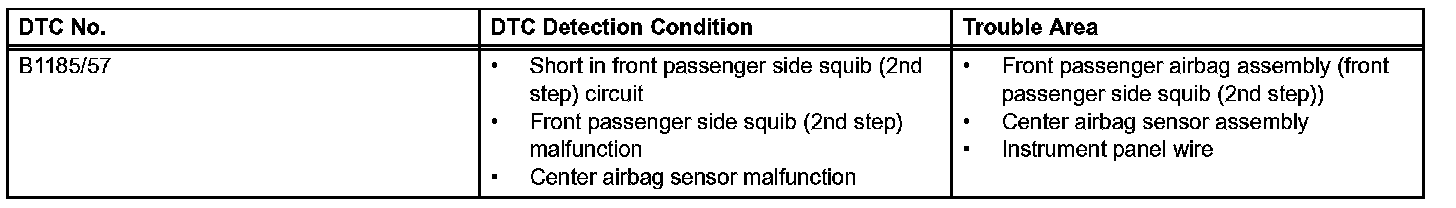

DTC Detection Condition:

The front passenger side squib (2nd step) circuit consists of the center airbag sensor and the front passenger airbag.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1185/57 is recorded when a short is detected in the front passenger side squib (2nd step) circuit.

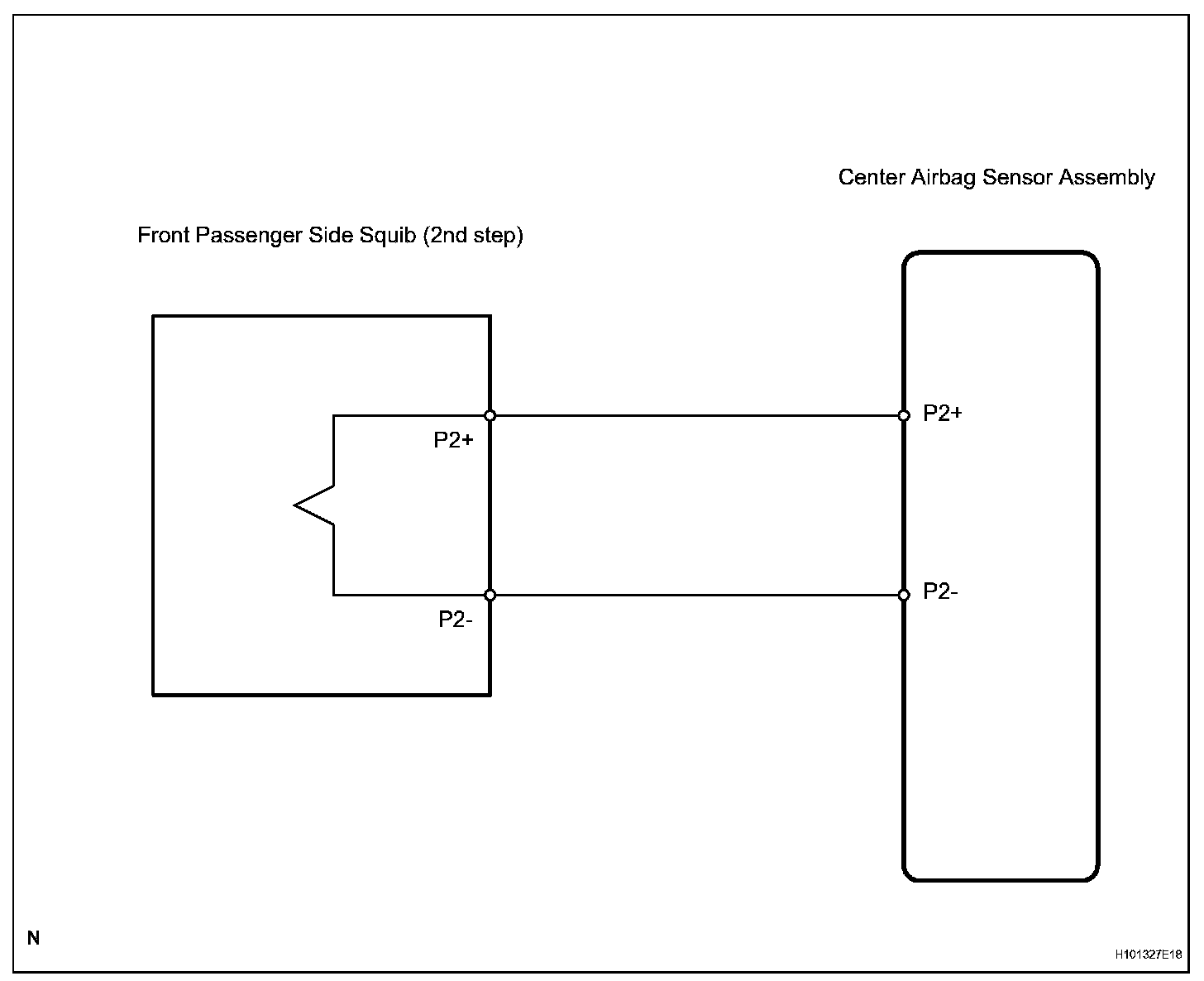

Wiring Diagram:

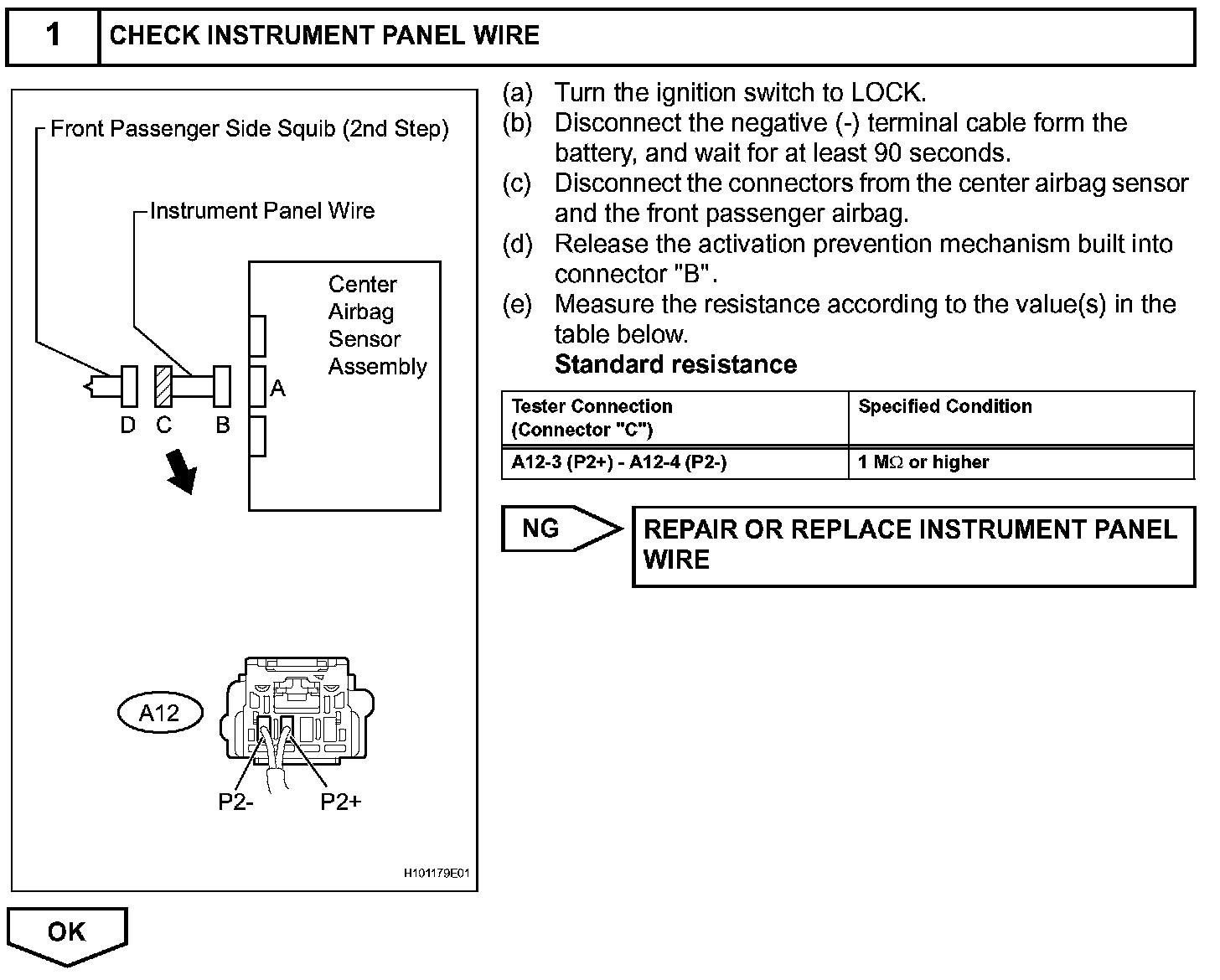

Step 1:

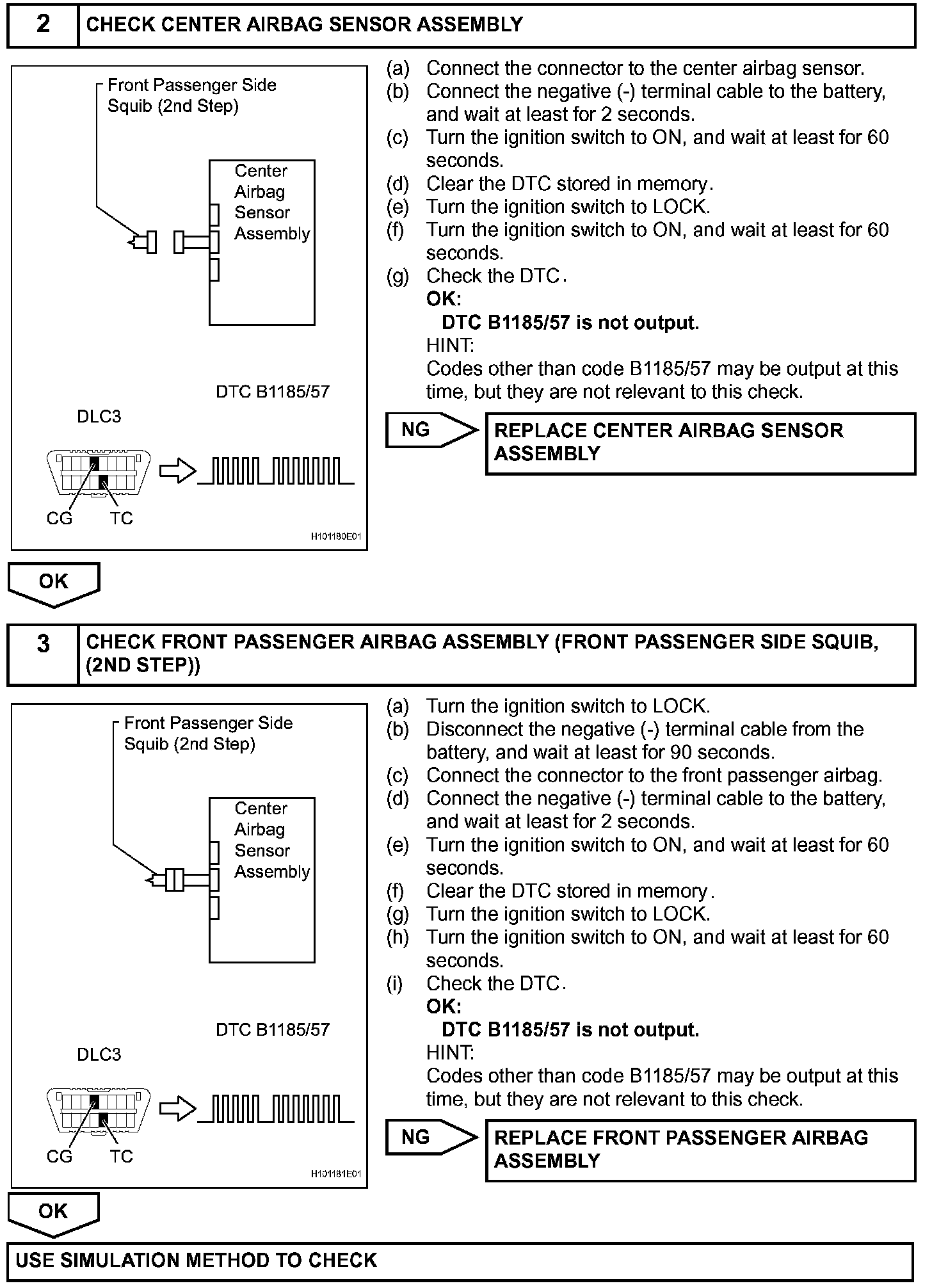

Step 2-3:

Step 3(continued):

INSPECTION PROCEDURE
