DTC 17

DTC B1180/17 Short in Driver Side Squib 2nd Step Circuit

DESCRIPTION

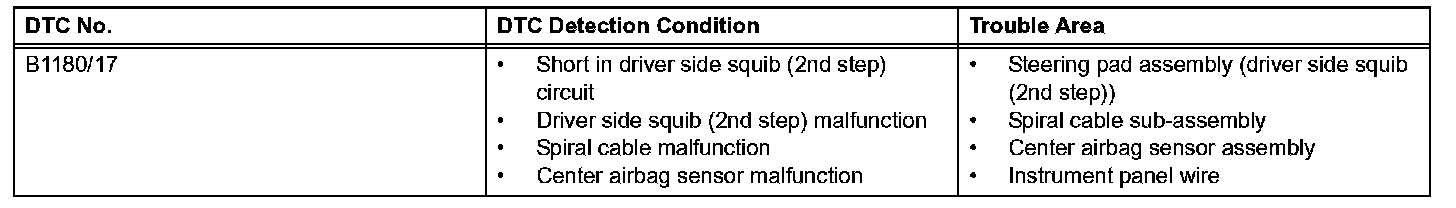

DTC Detection Condition:

The driver side squib (2nd step) circuit consists of the center airbag senor, the spiral cable and the steering pad.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1180/17 is recorded when a short is detected in the driver side squib (2nd step) circuit.

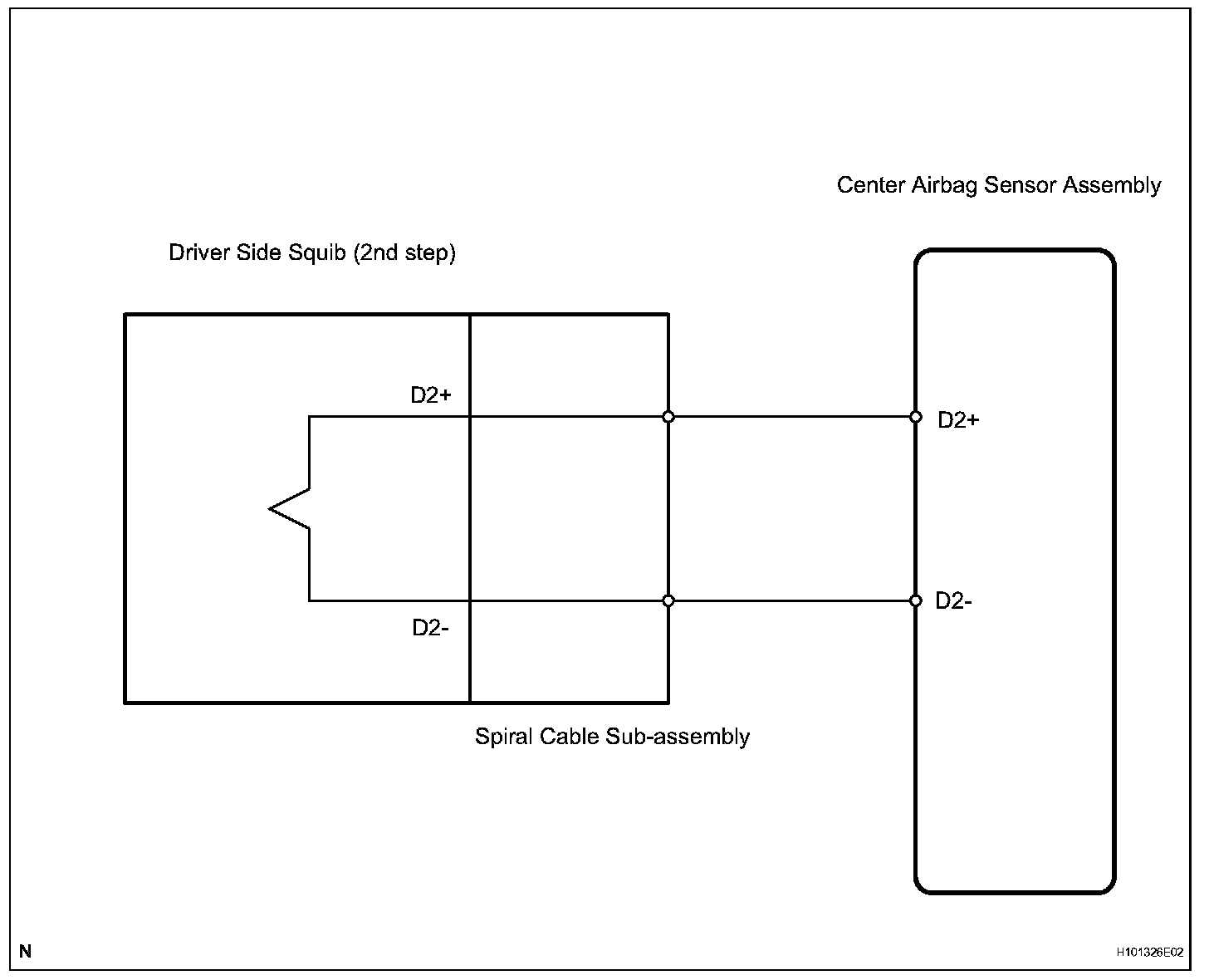

Wiring Diagram:

Step 1-2:

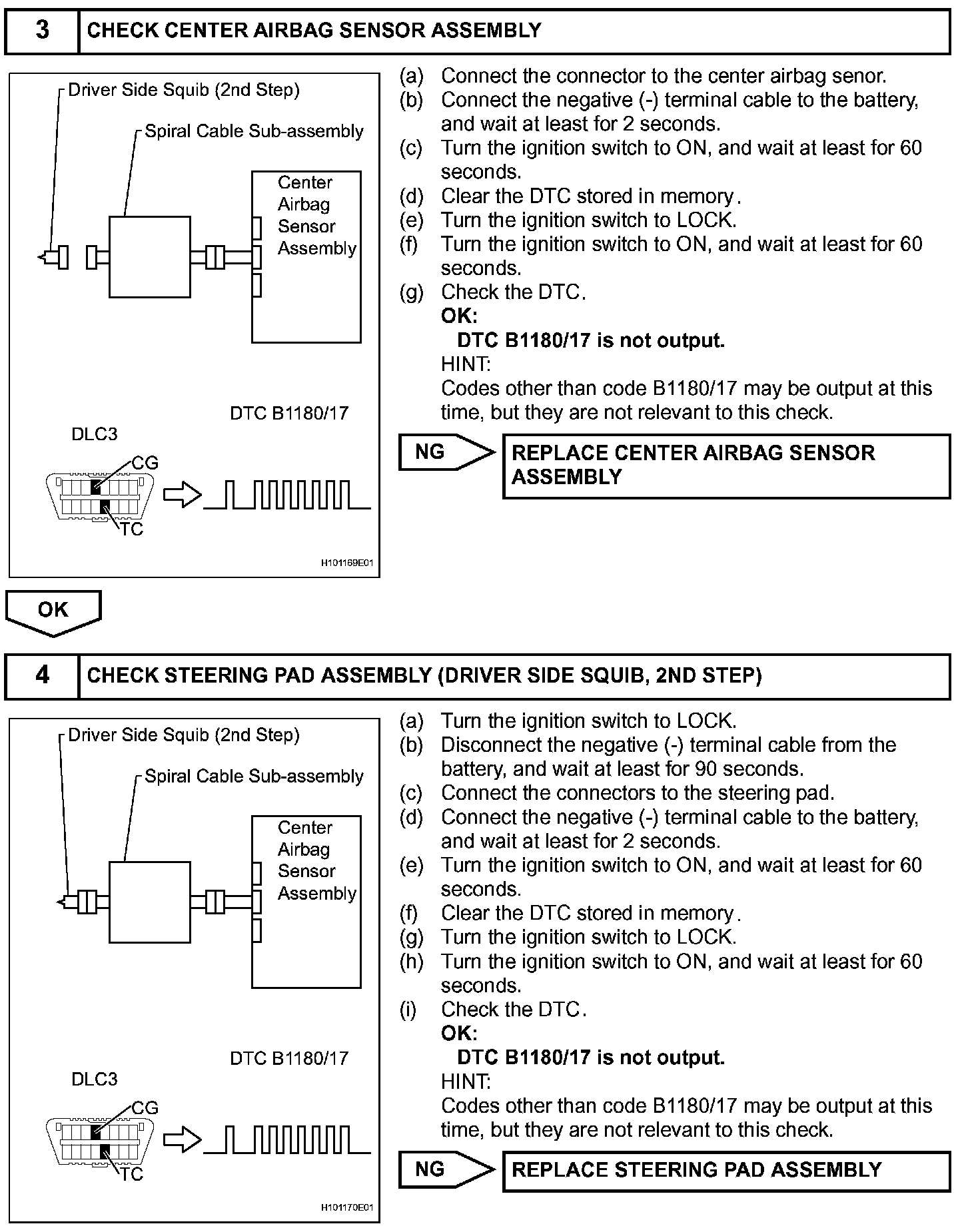

Step 3-4:

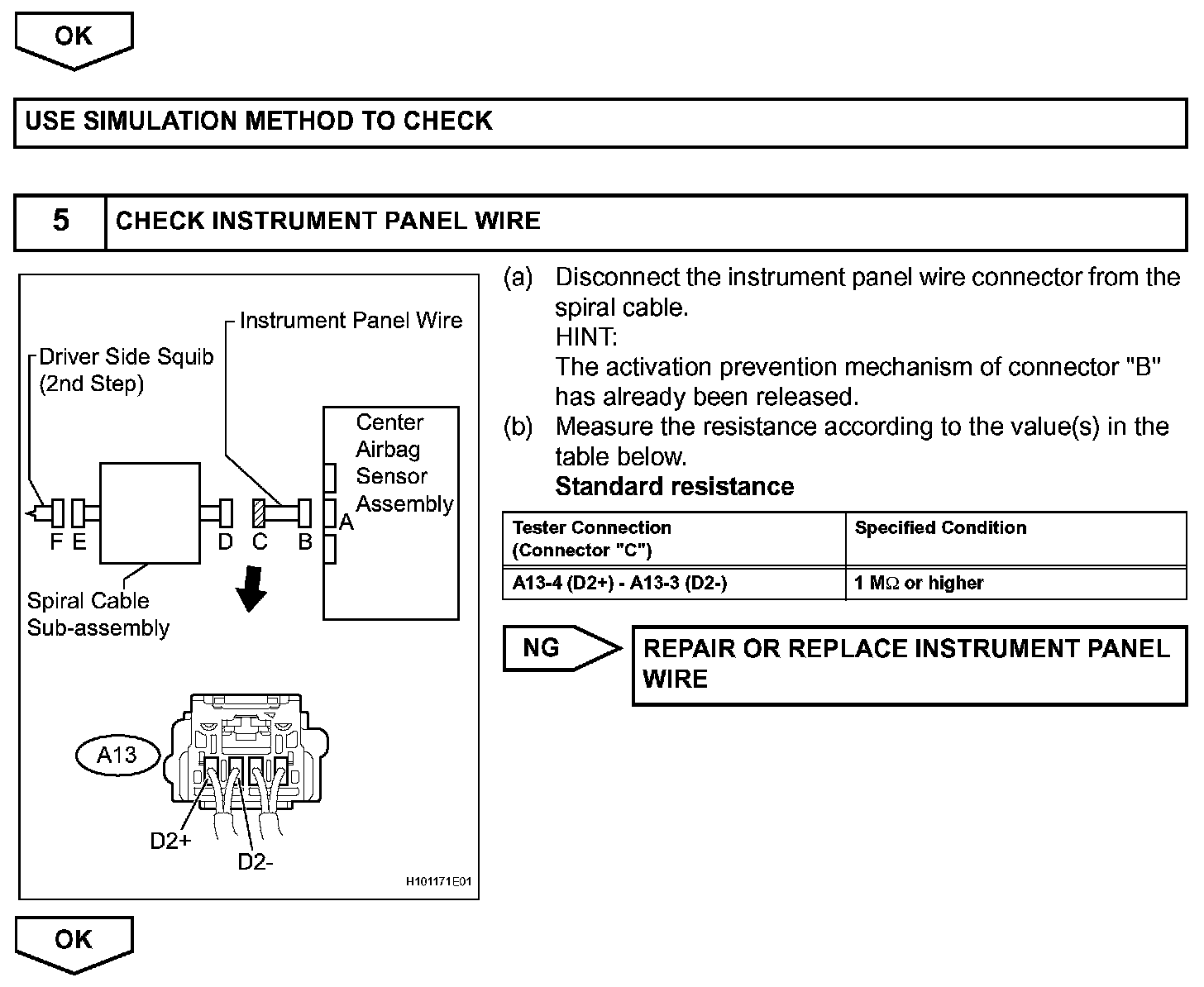

Step 4(continued)-5:

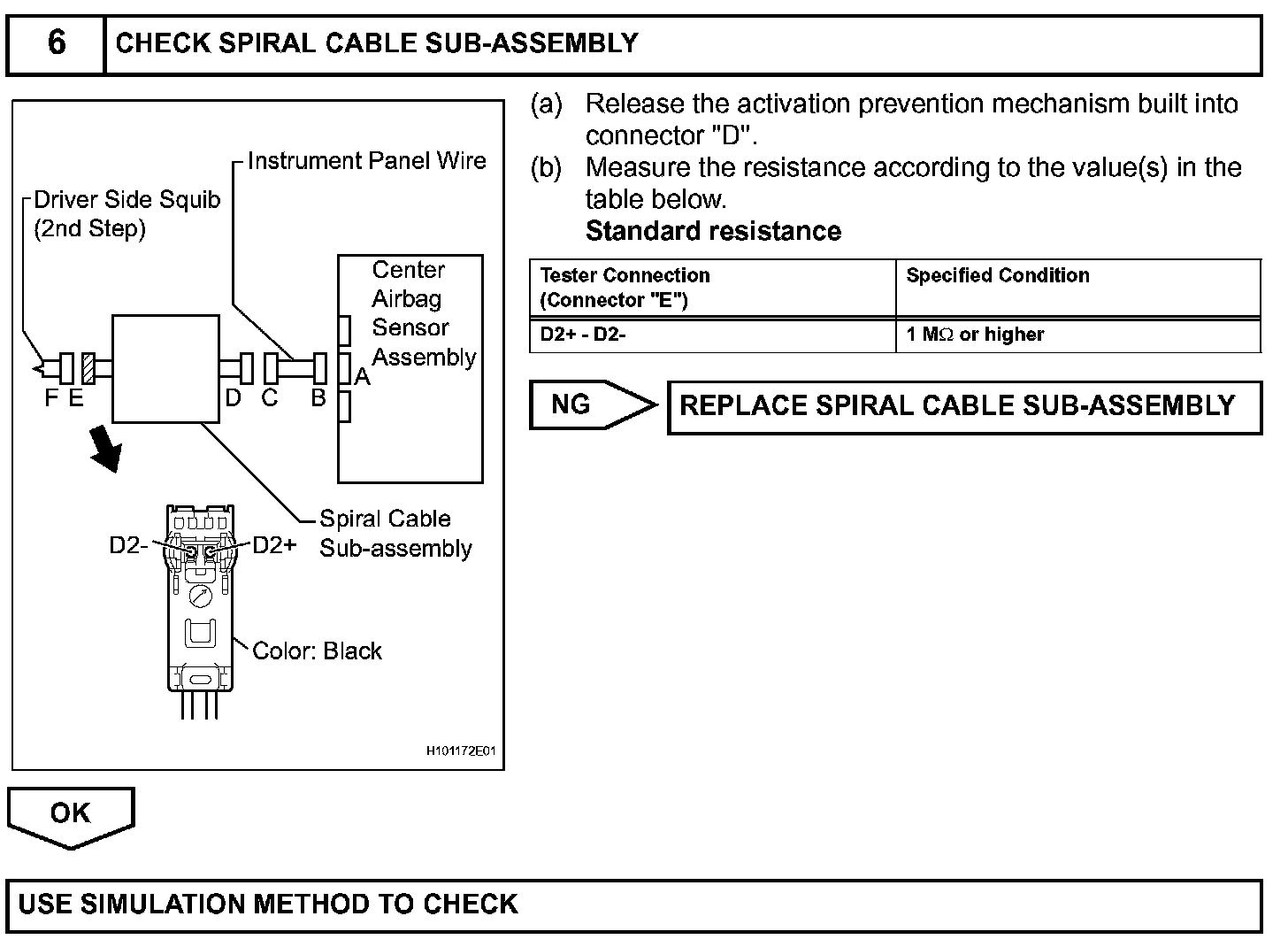

Step 6:

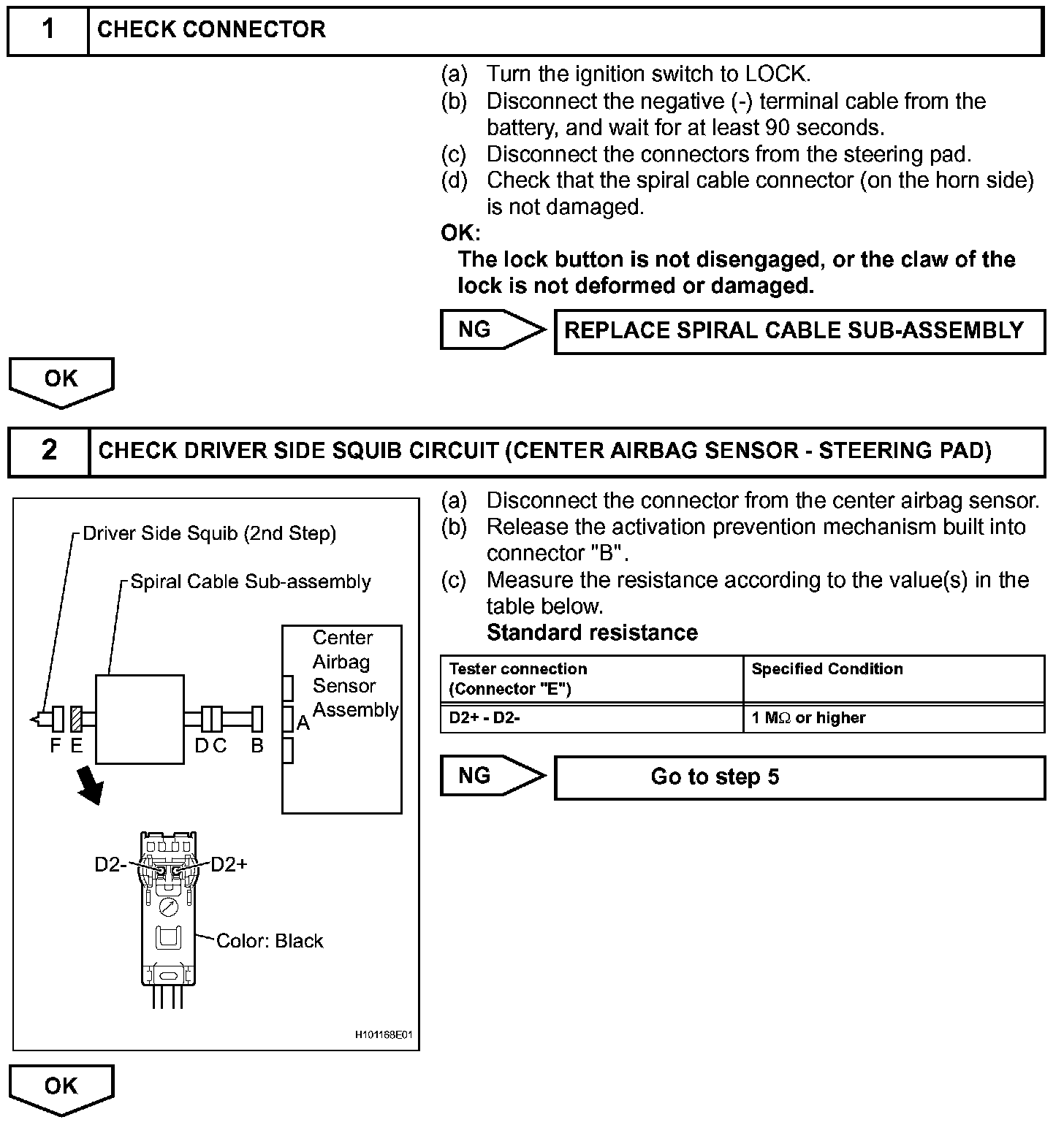

INSPECTION PROCEDURE
