Vehicle Stability Control System

DIAGNOSTIC TROUBLE CODE CHART

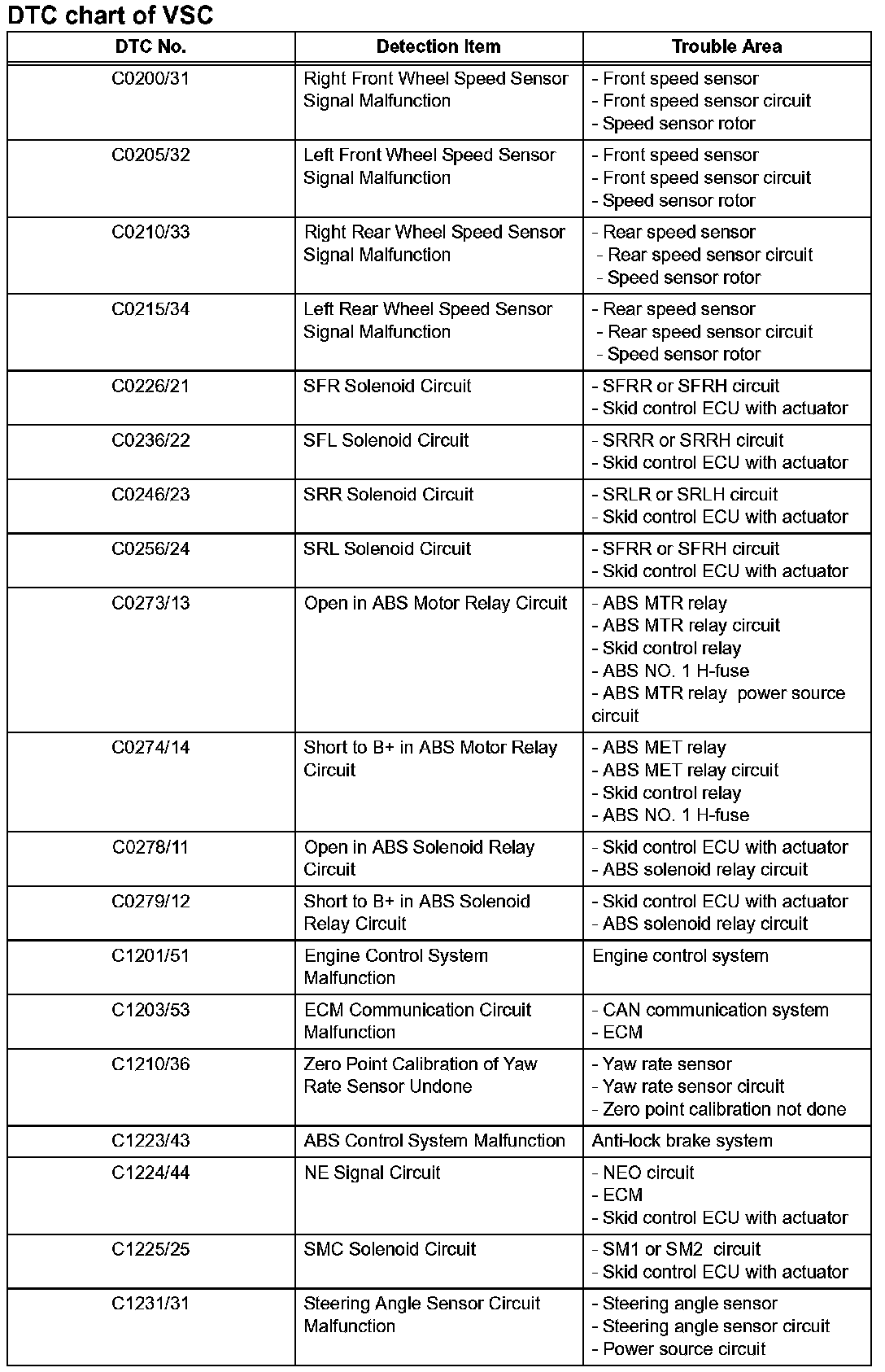

C0200/31 - C1231/31:

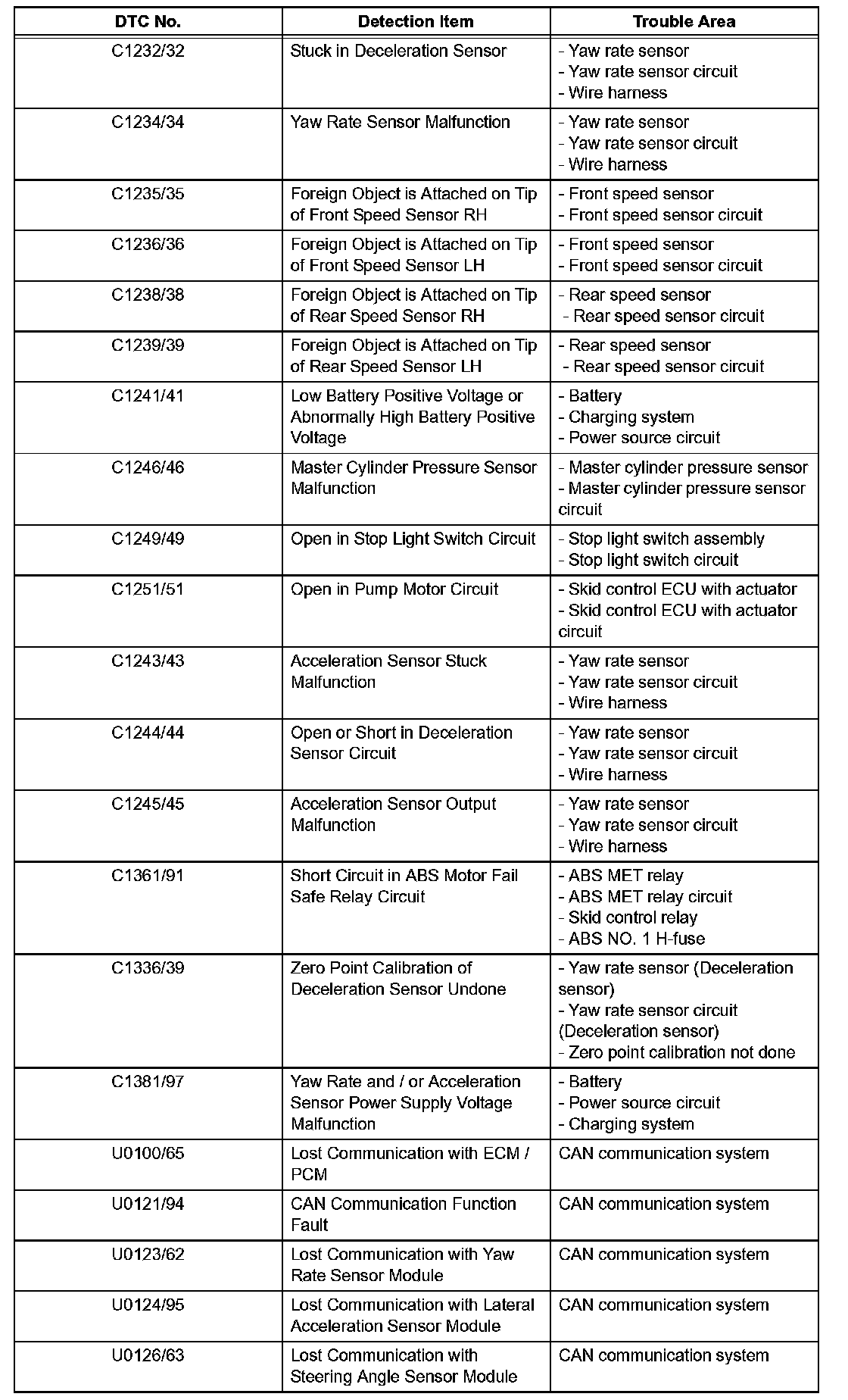

C1232/32 - U0126/63:

HINT: If a malfunction code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, turn to the page for the respective "DTC No." in the DTC chart.

HINT: In some cases, the intelligent tester cannot be used when the VSC warning light is always illuminated.

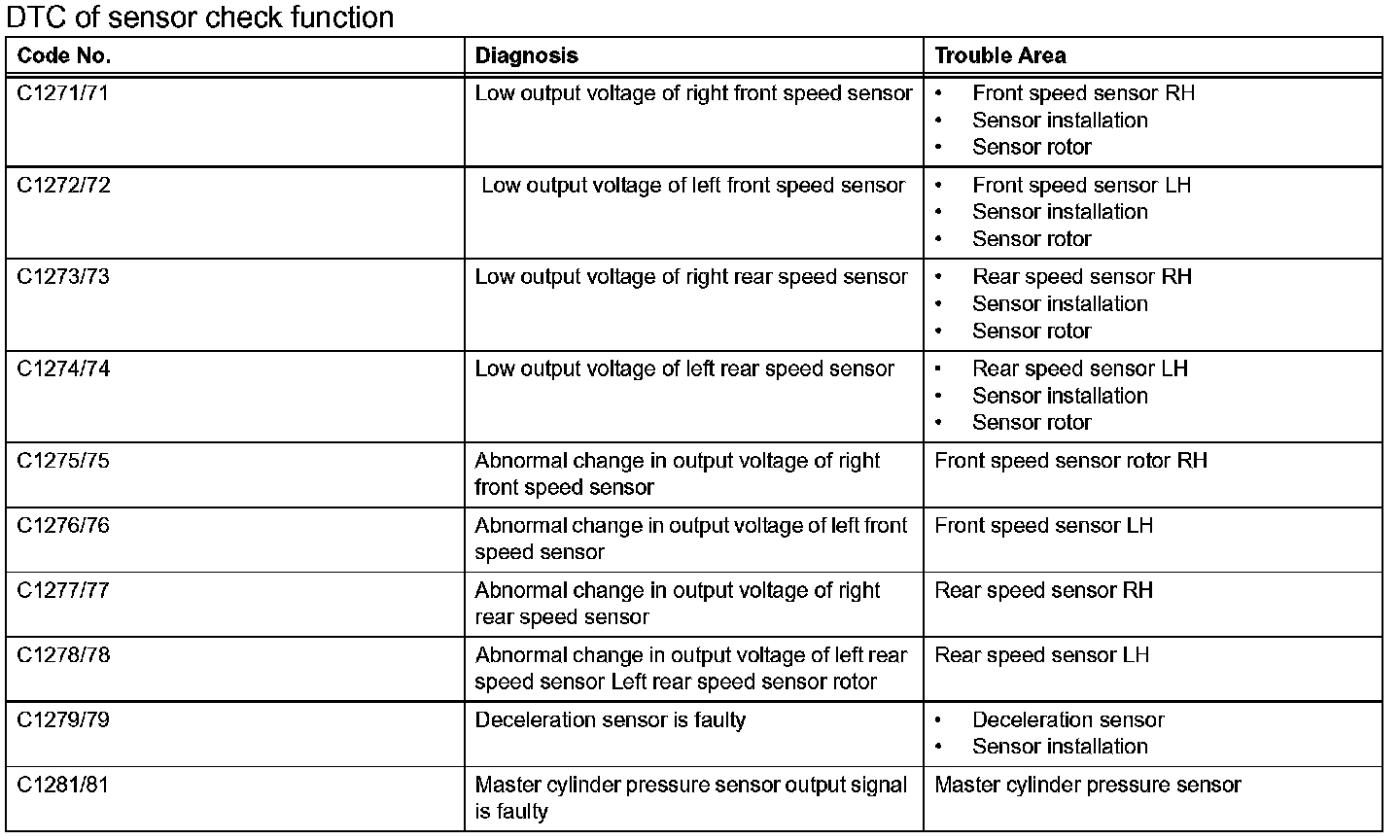

DTC of sensor check function
