Engine Control System - SFI System

DIAGNOSTIC TROUBLE CODE CHART

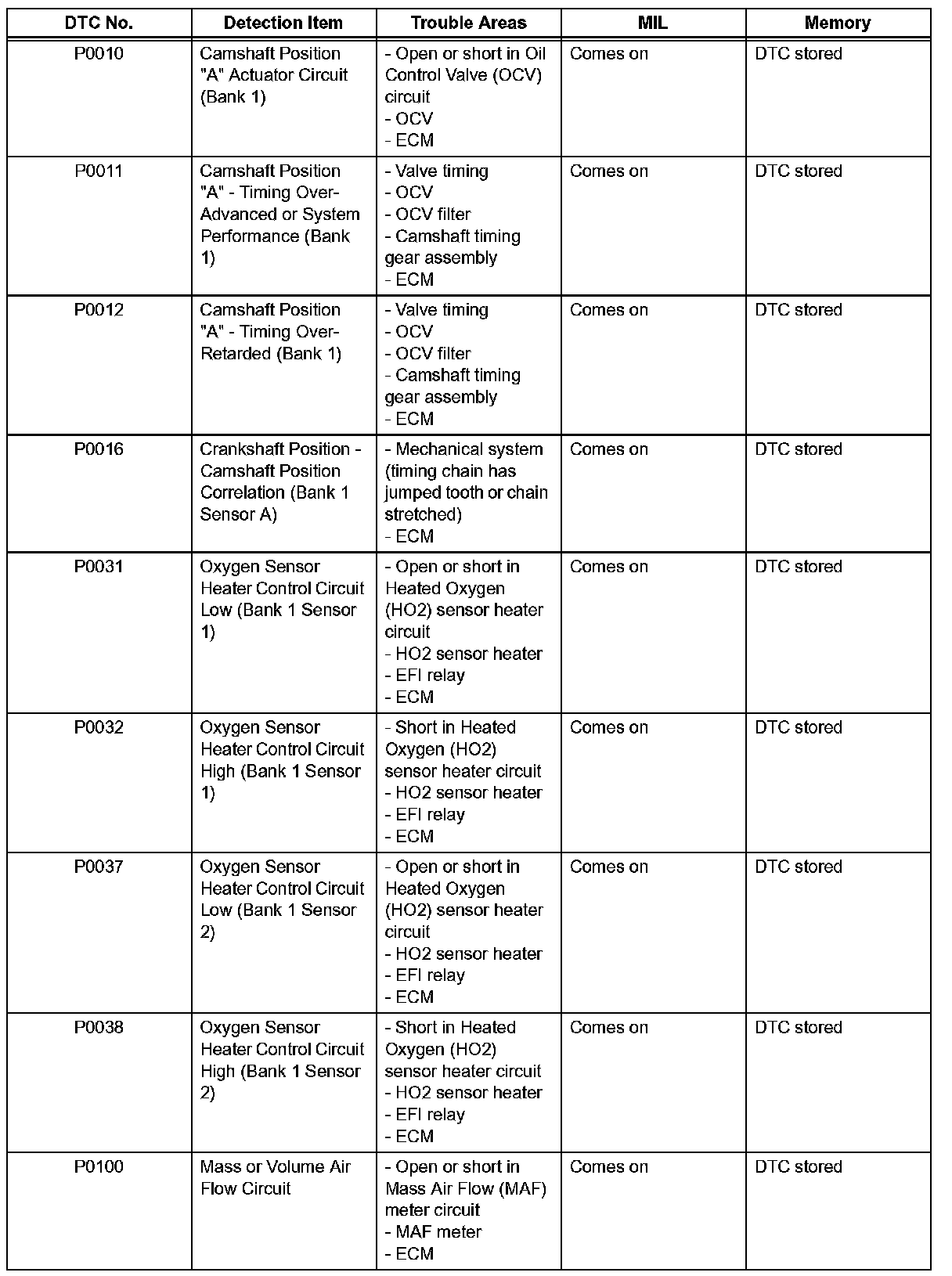

P0010 - P0100:

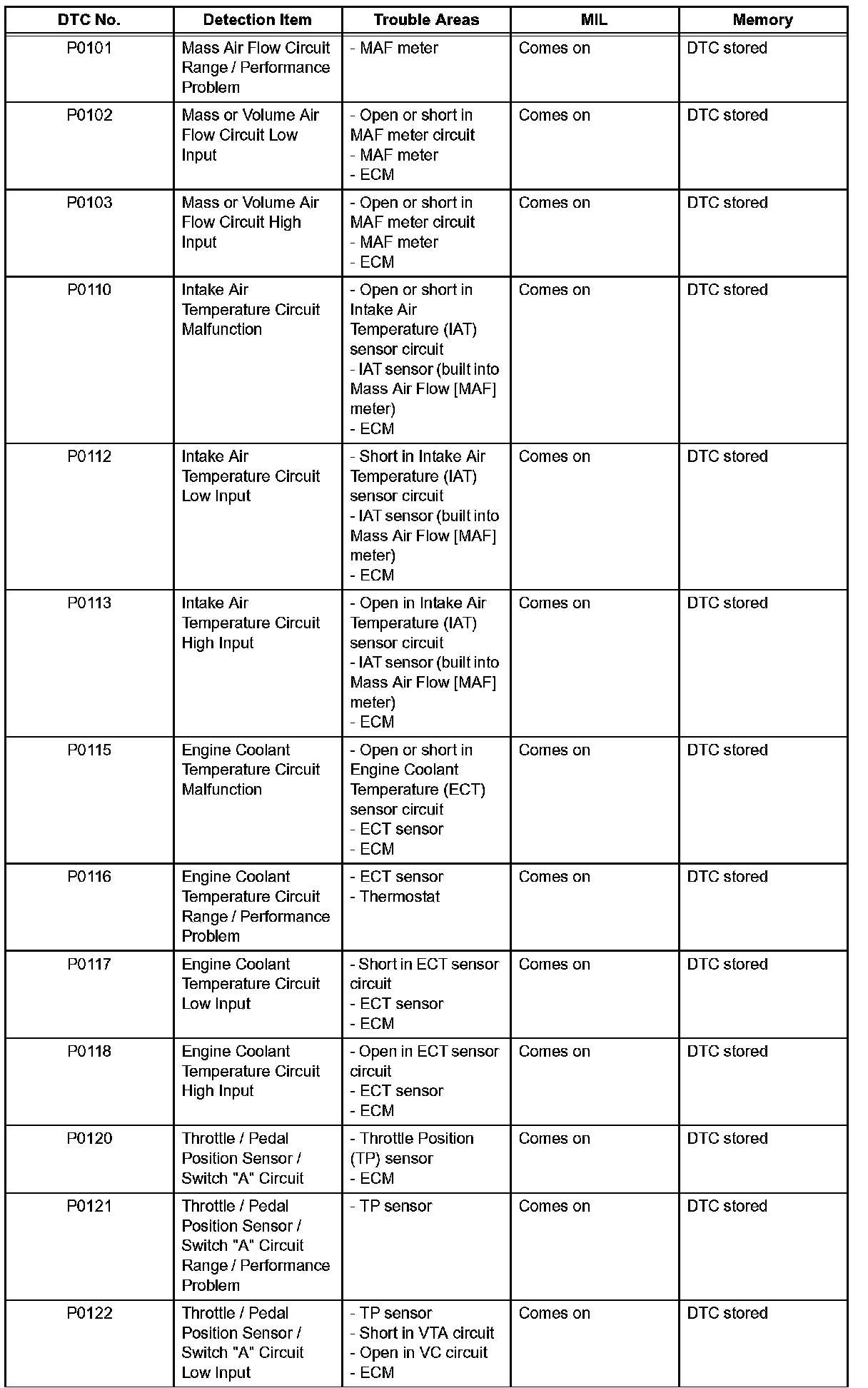

P0101 - P0122:

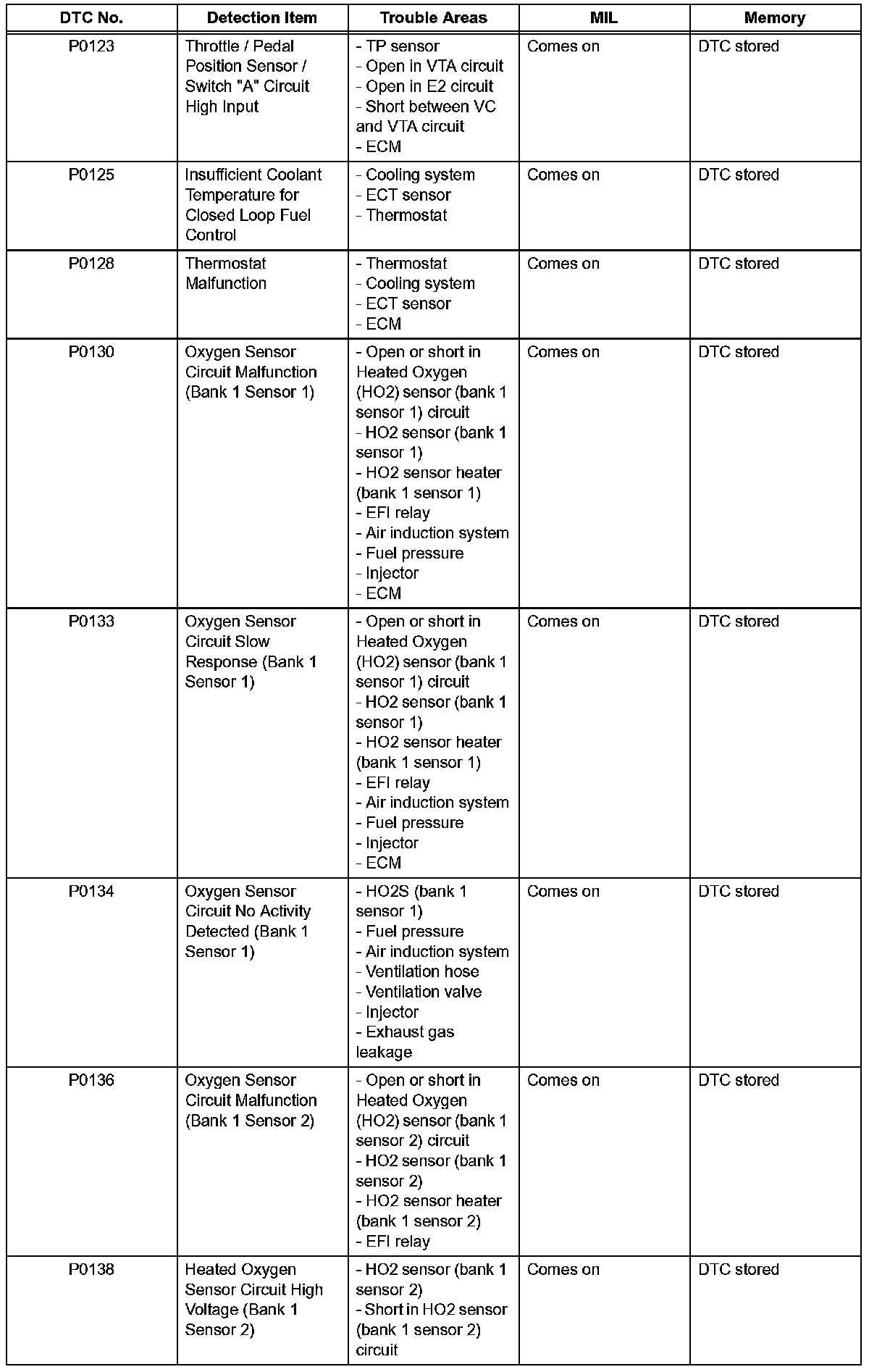

P0123 - P0138:

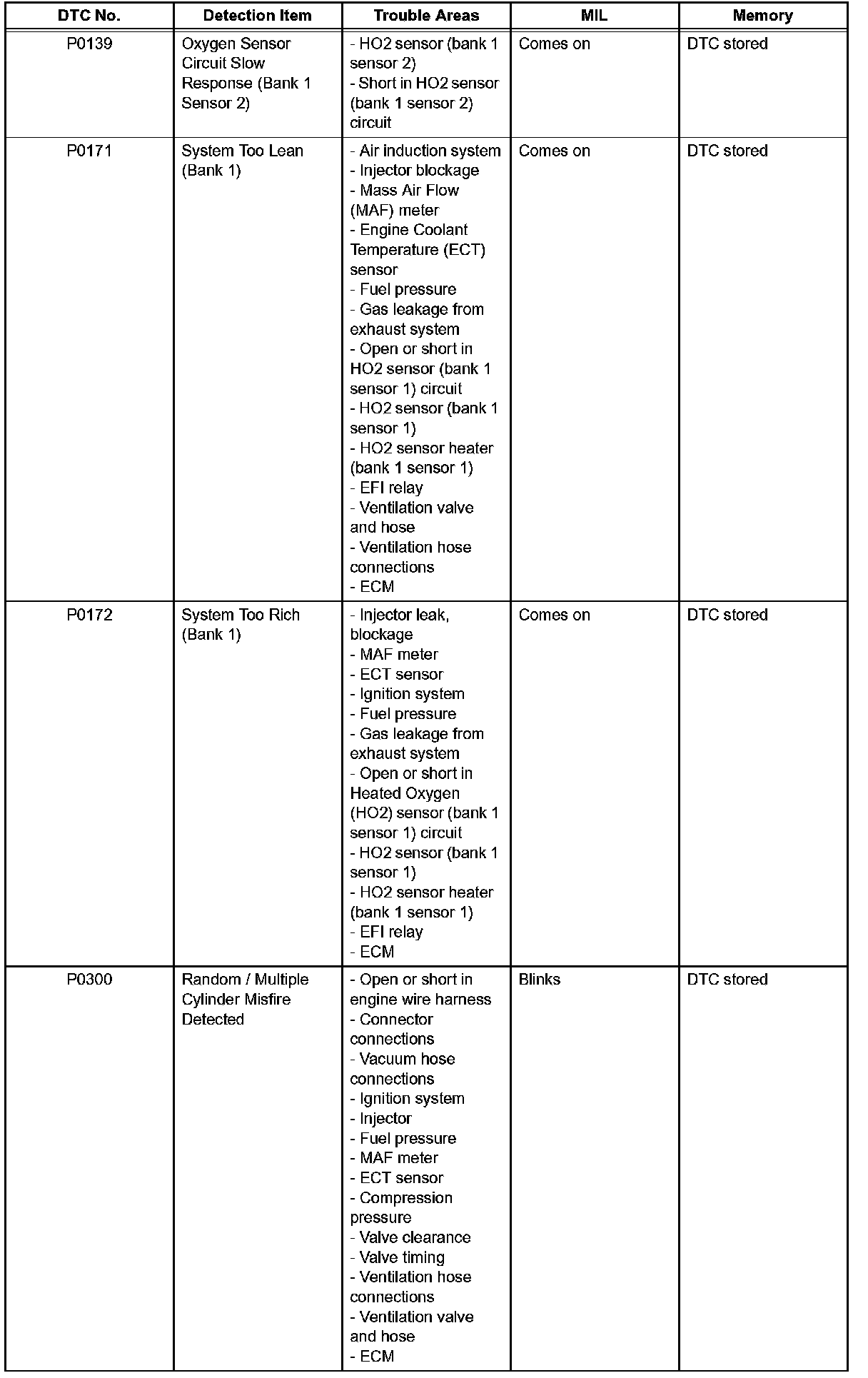

P0139 - P0300:

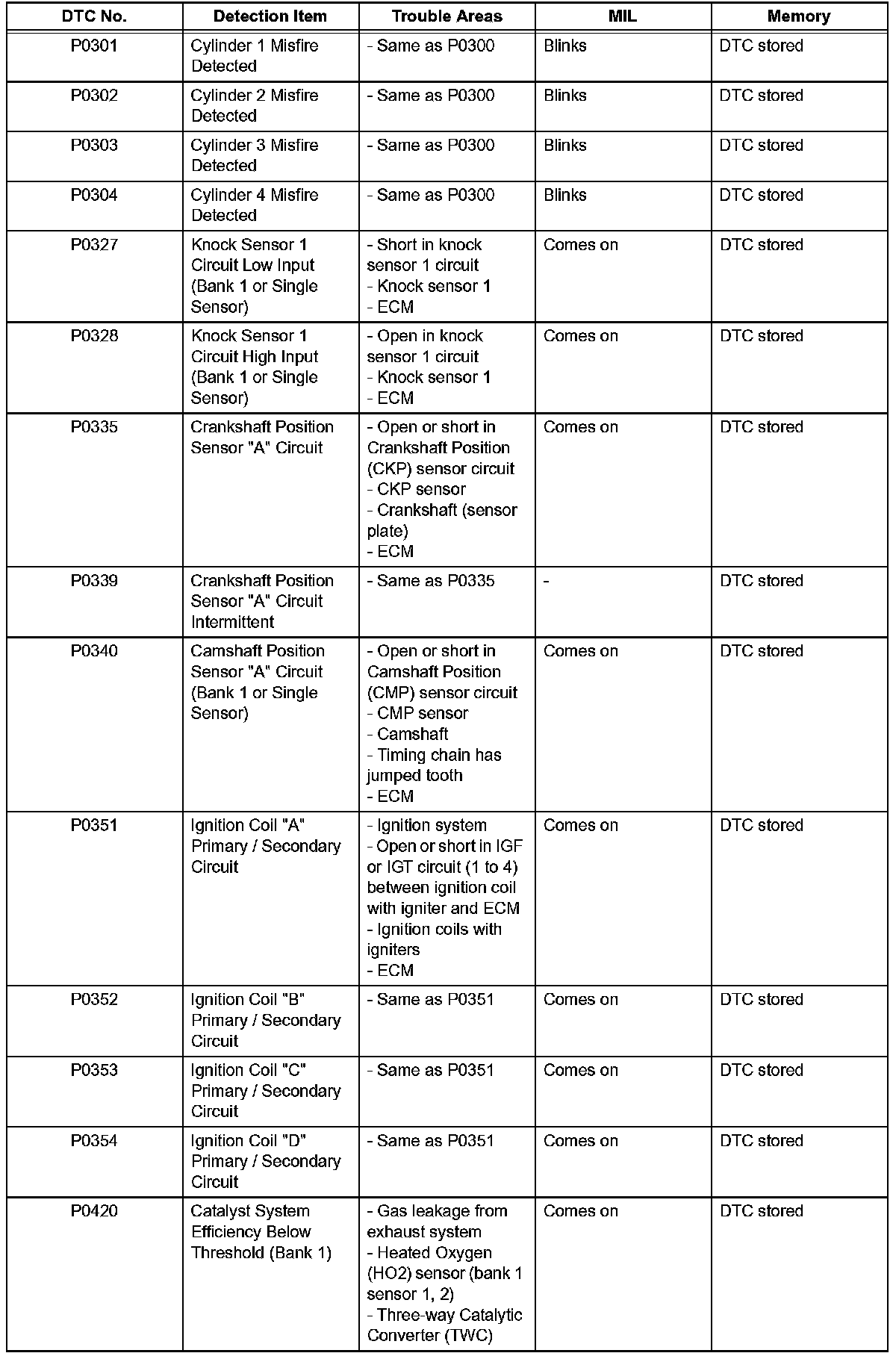

P0301 - P0420:

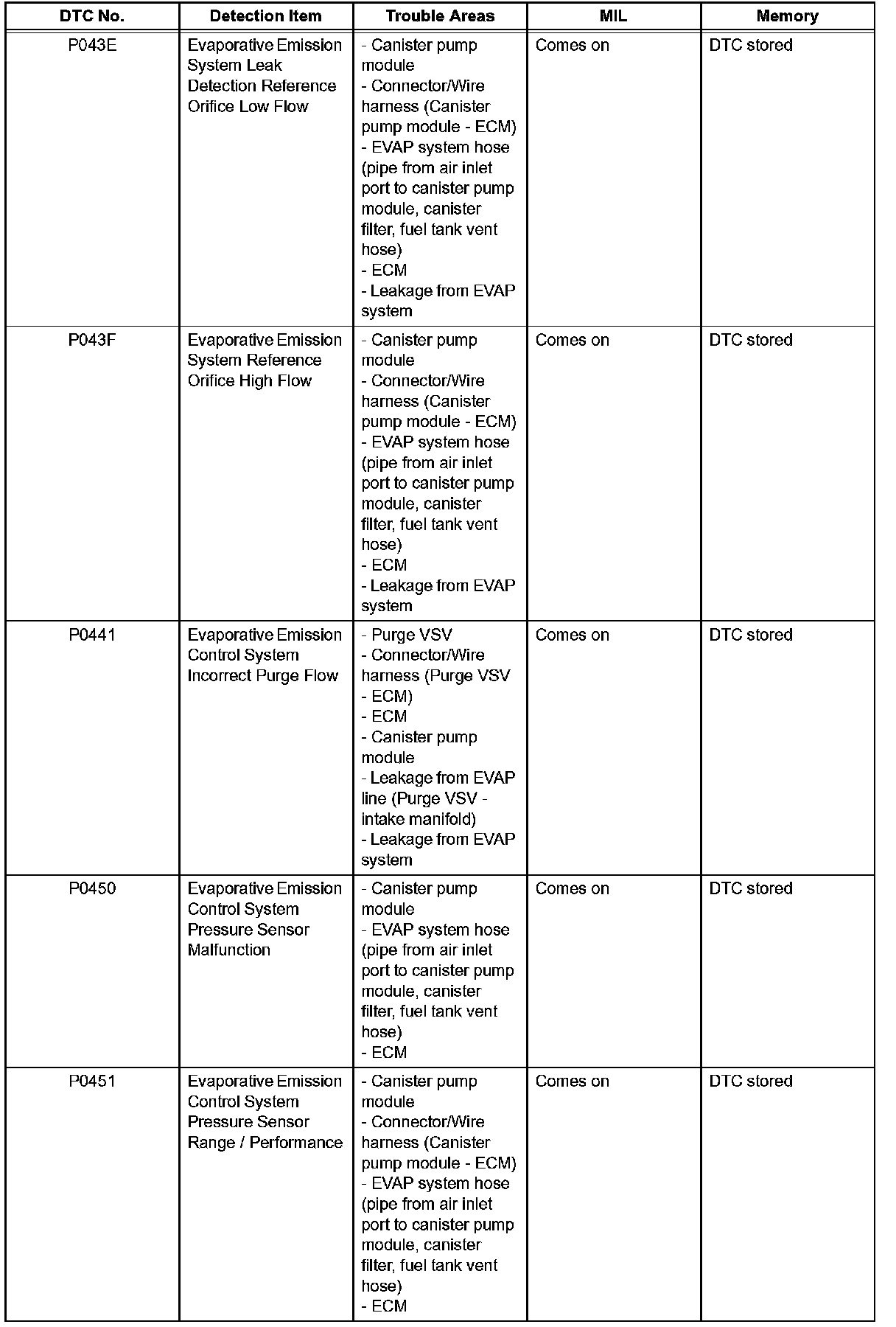

P043E - P0451:

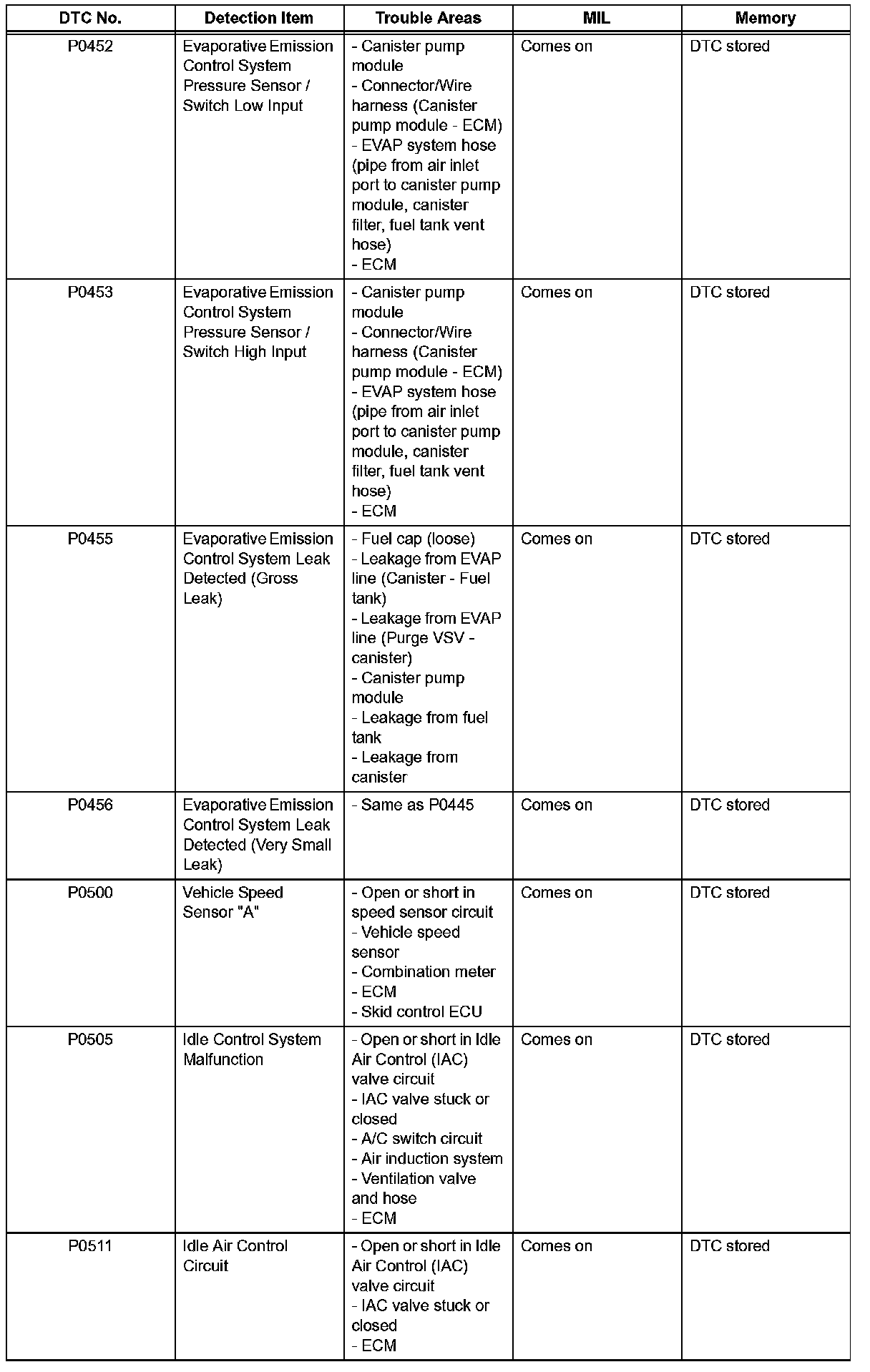

P0452 - P0511:

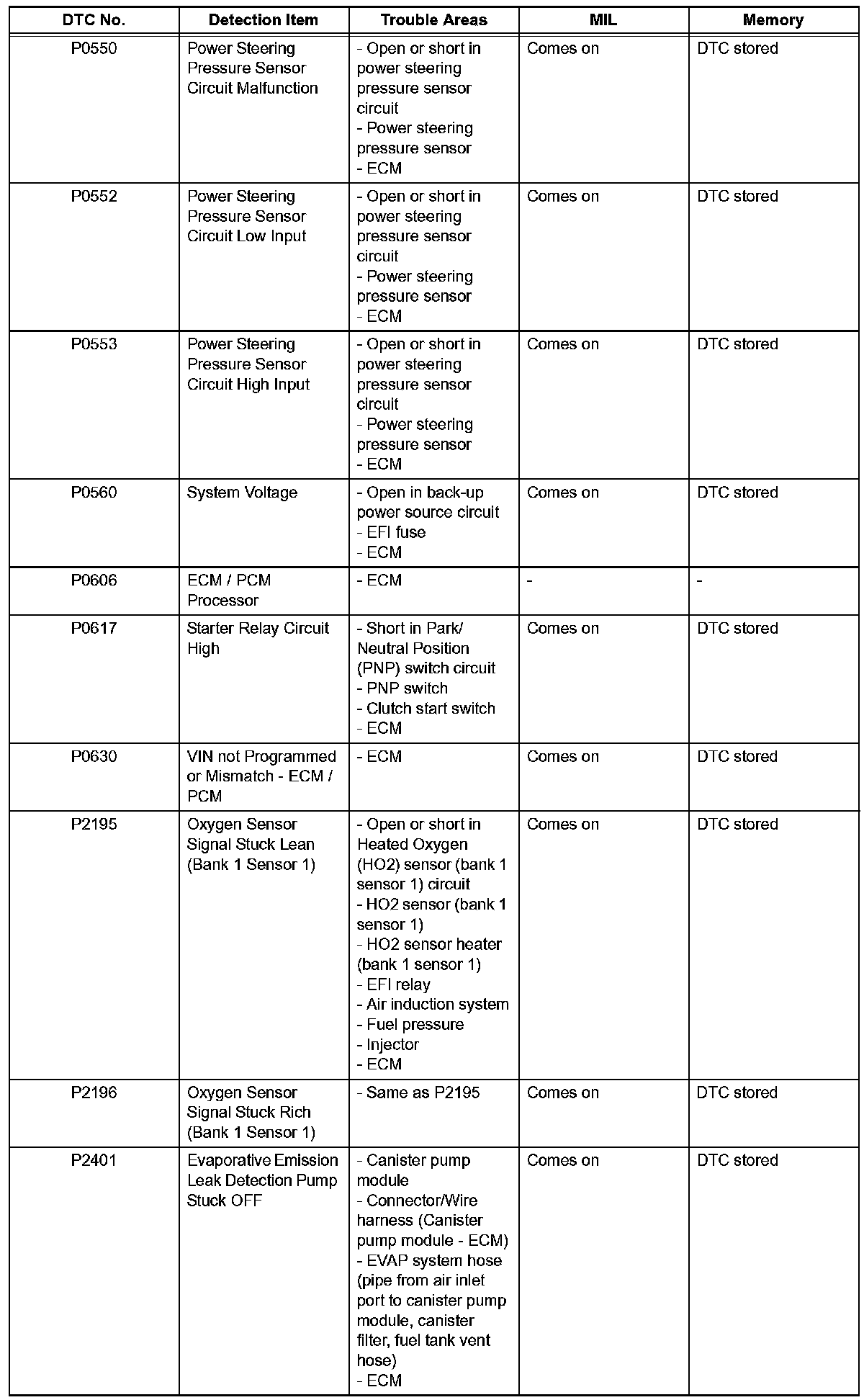

P0550 - P2401:

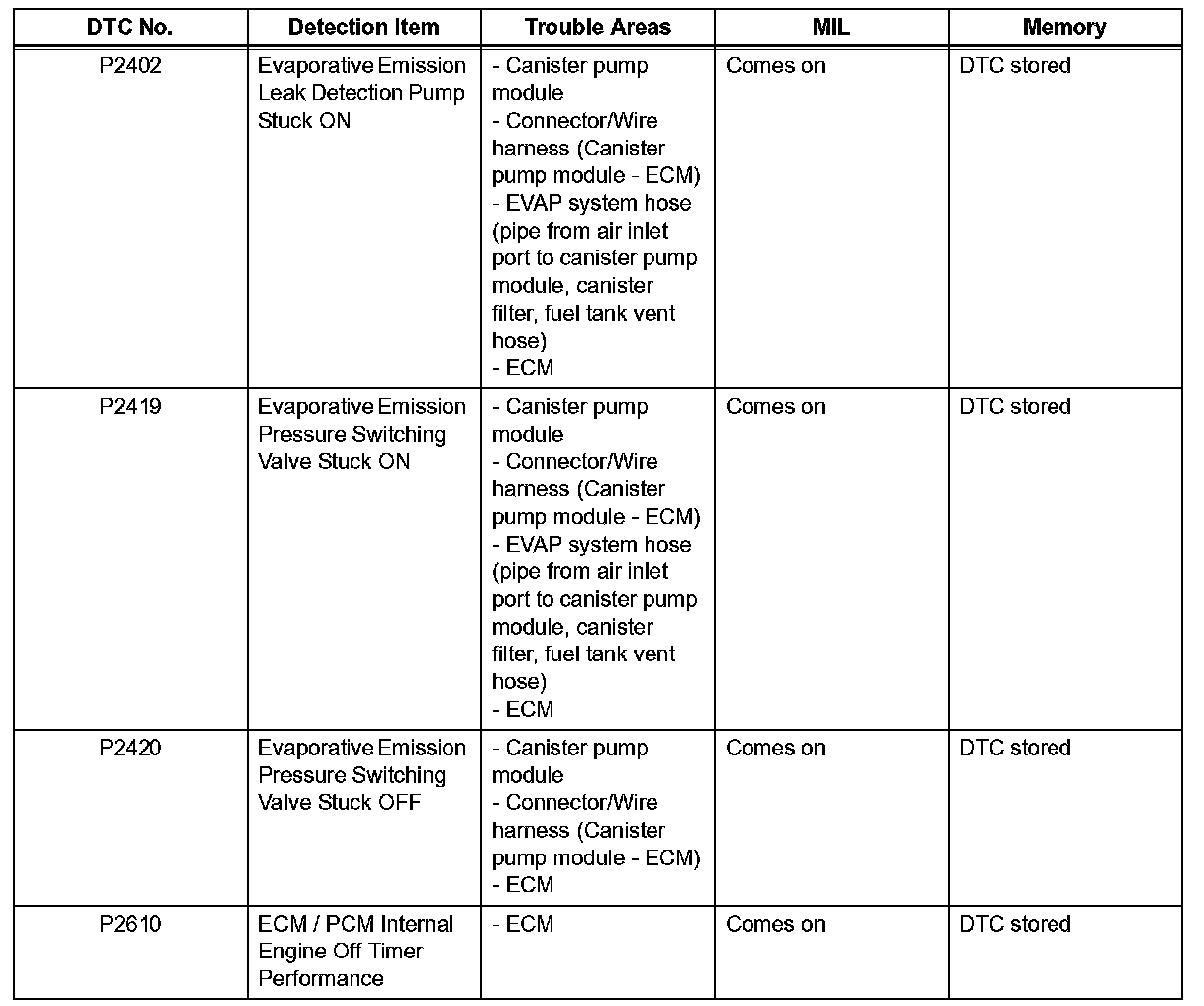

P2402 - P2610:

HINT: The parameters listed in the chart are for reference only. Factors such as instrument type may cause readings to differ slightly from stated values. If any DTCs are displayed during a check mode DTC check, check the circuit for the DTCs listed in the given table. For details of each DTC, refer to the page indicated.
