B1182

DTC B1182/19 Short to GND in Driver Side Squib 2nd Step Circuit

DESCRIPTION

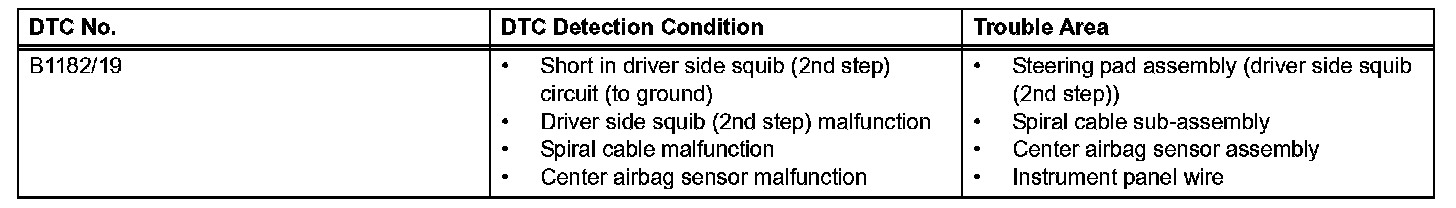

DTC Detection Condition:

The driver side squib (2nd step) circuit consists of the center airbag sensor, the spiral cable and the steering pad.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1182/19 is recorded when a ground short is detected in the driver side squib (2nd step) circuit.

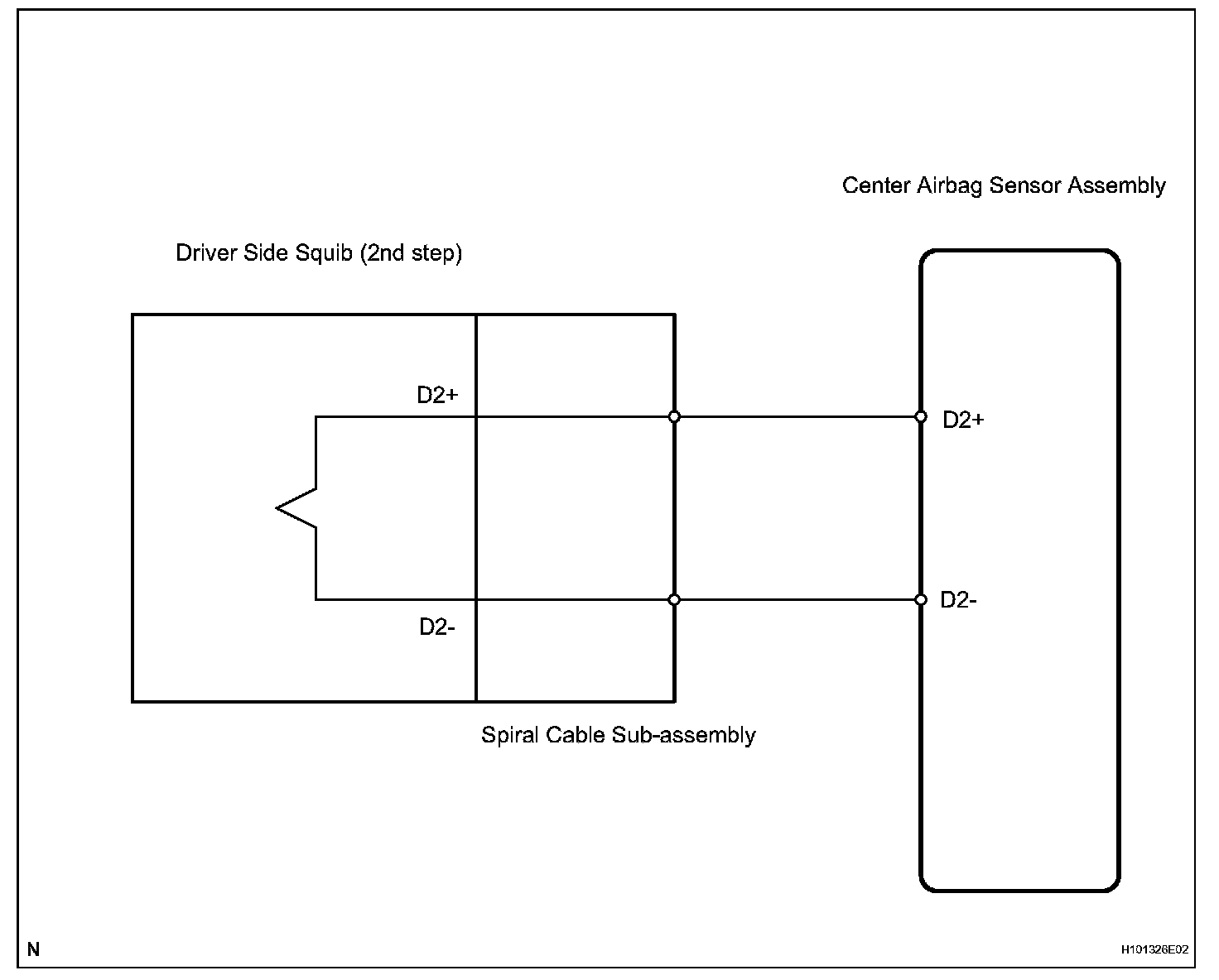

Wiring Diagram:

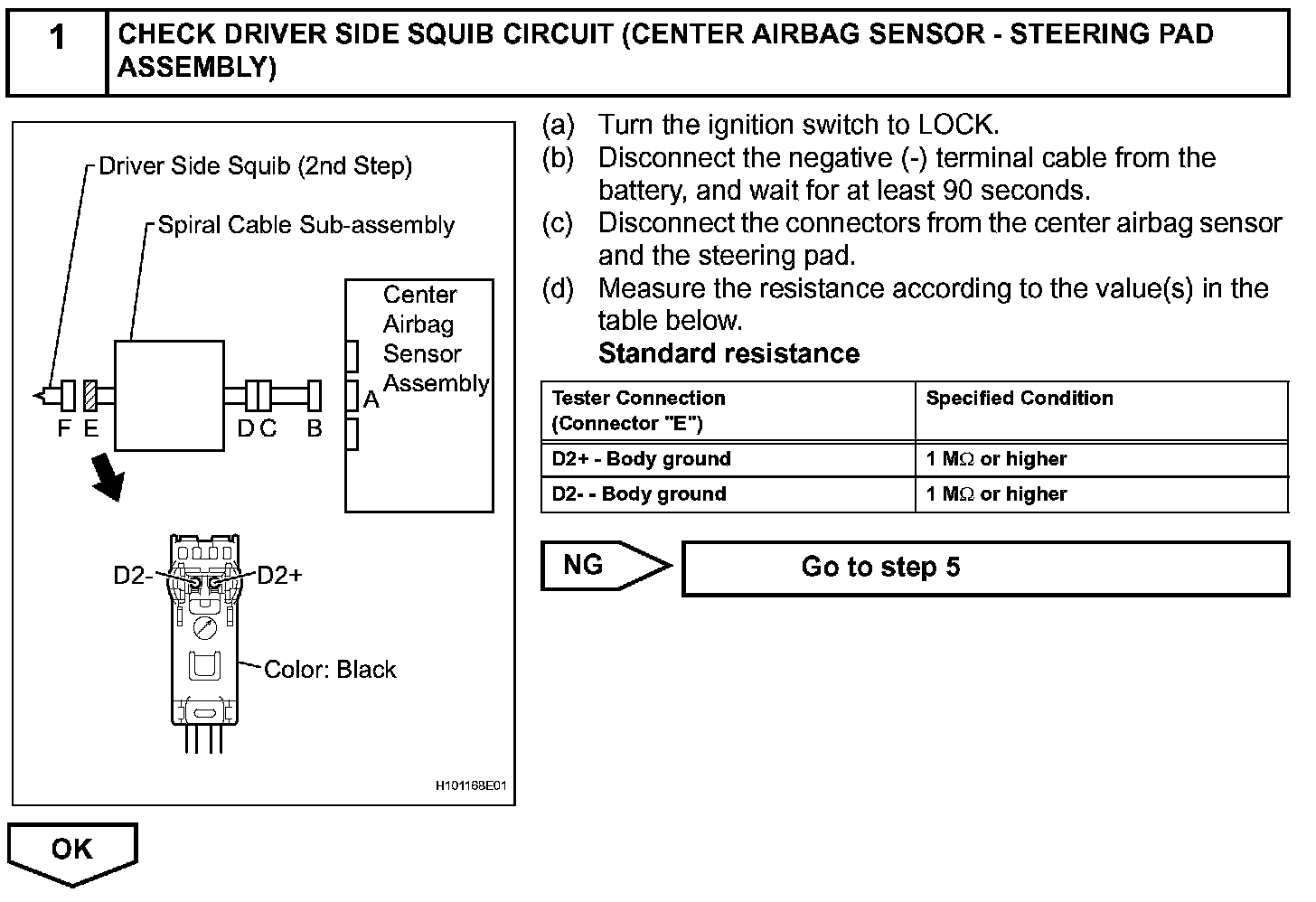

Step 1:

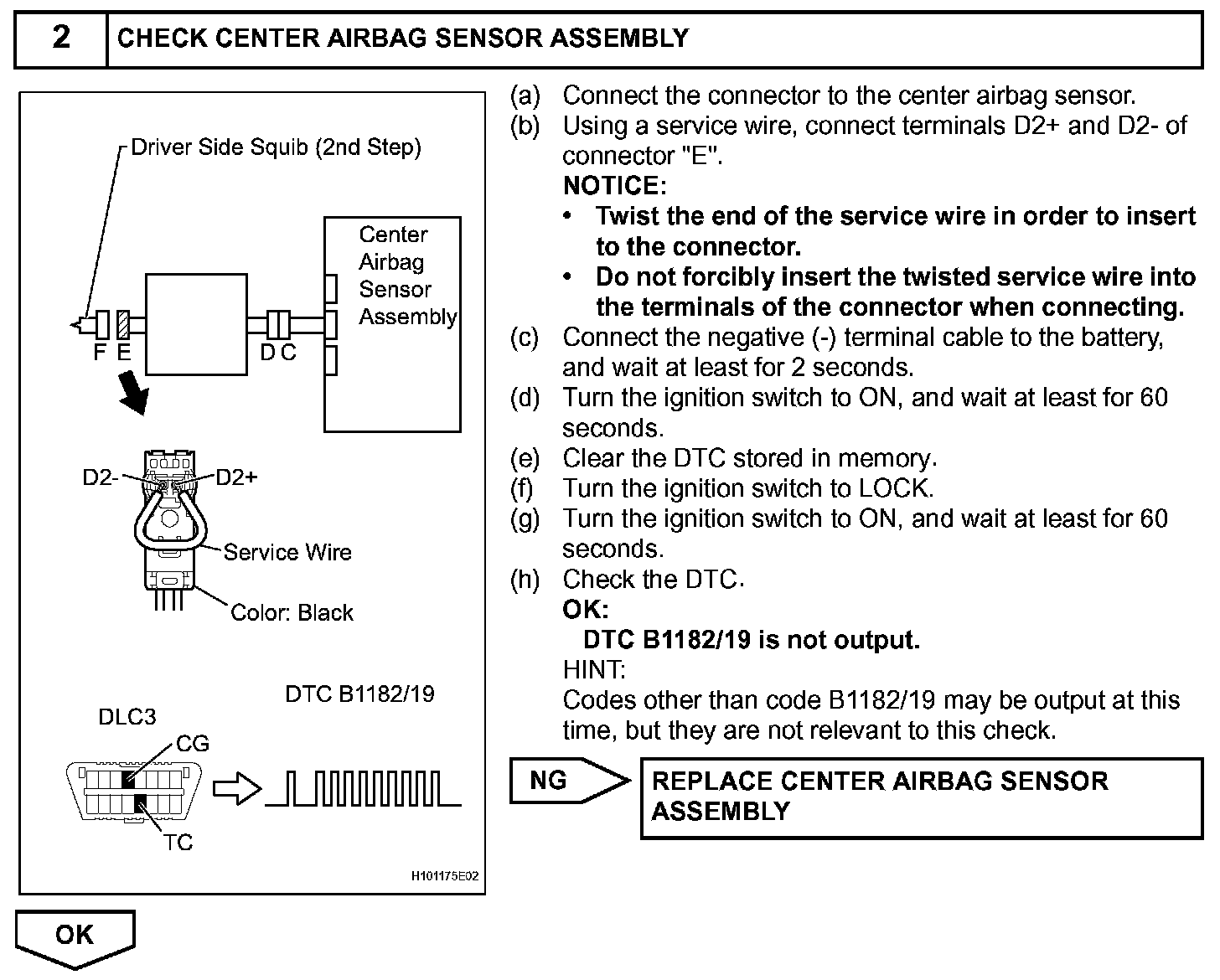

Step 2:

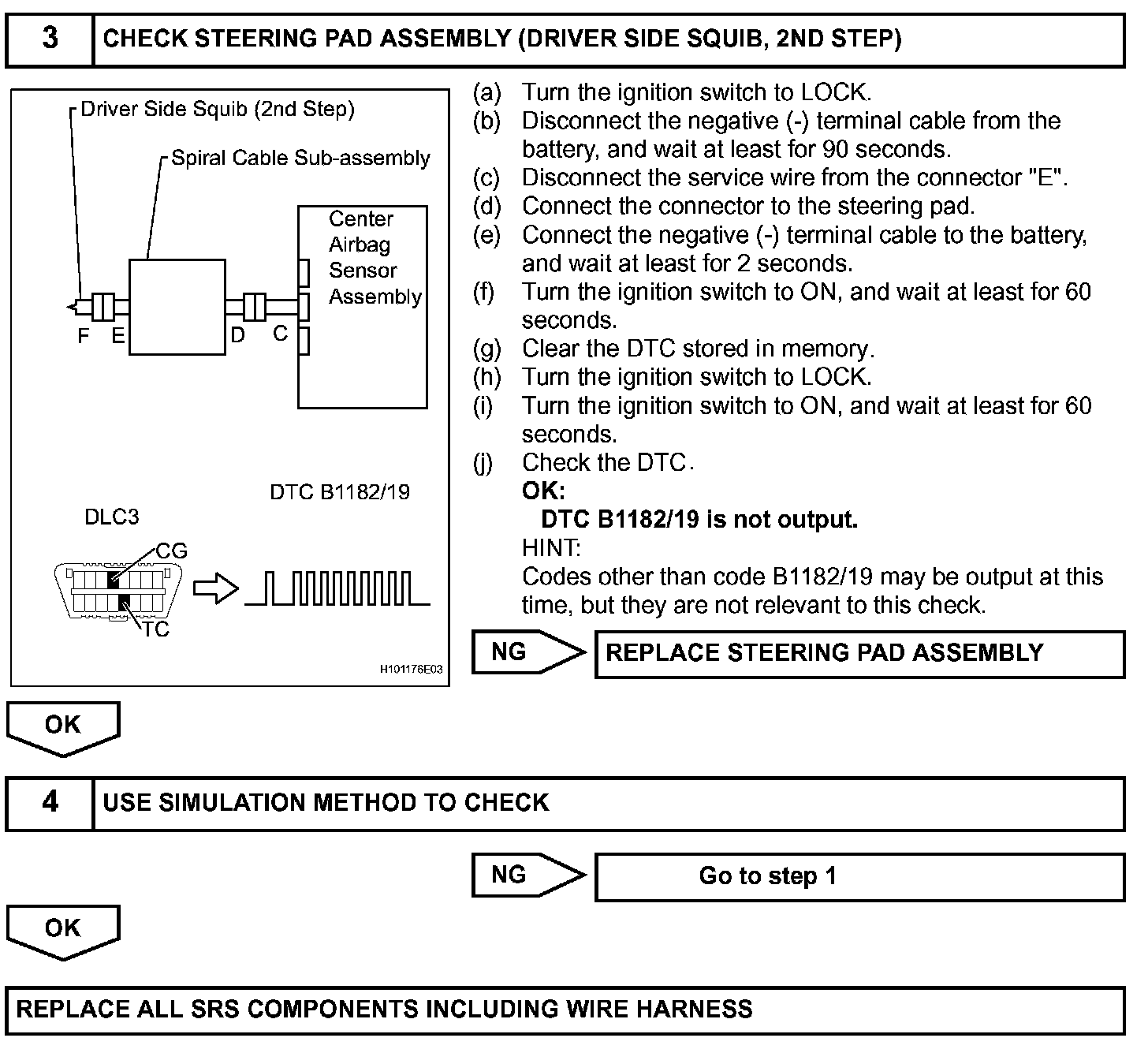

Step 3-4:

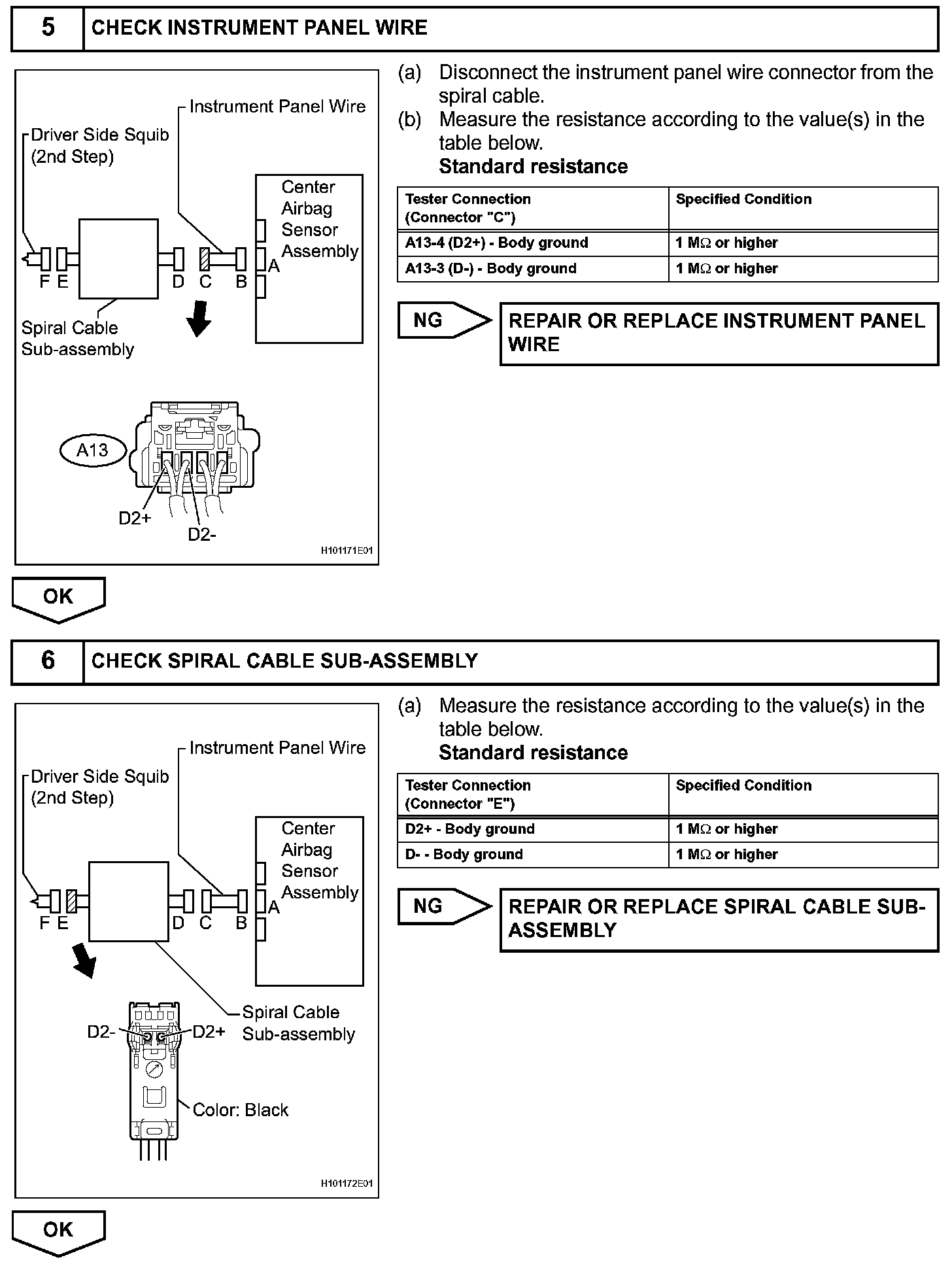

Step 5-6:

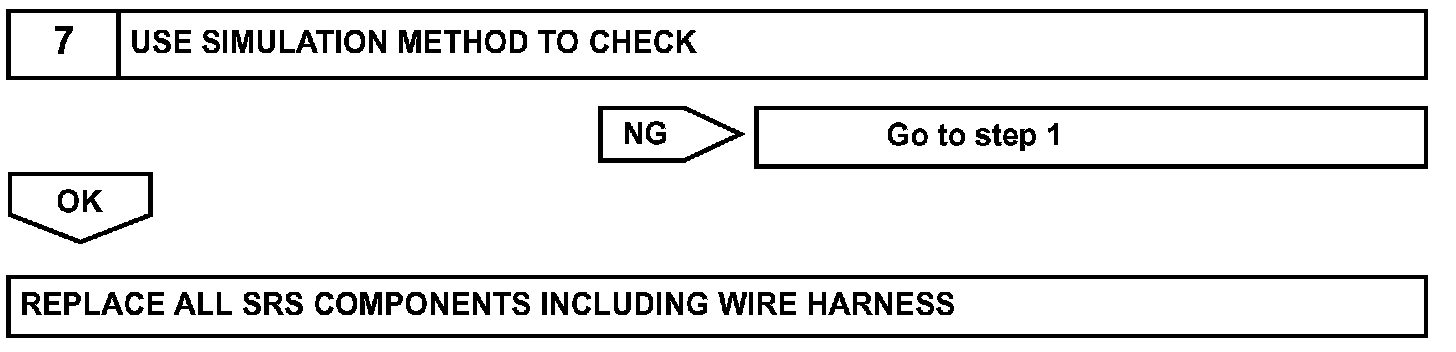

Step 7:

INSPECTION PROCEDURE
